Alienware 15 R2

To Next Page

To Previous Page

UPMIDIAS

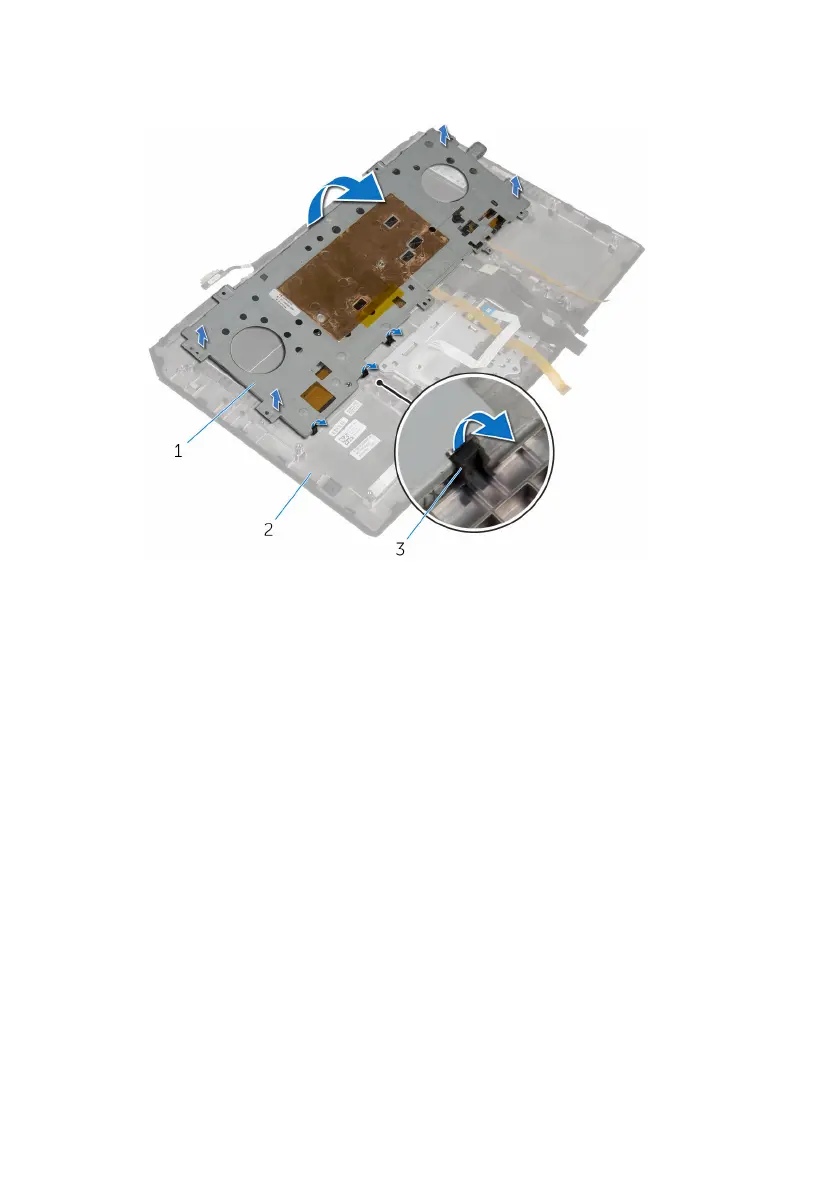

4 Lift the keyboard bracket at an angle and remove it from the tabs on the

palm-rest assembly.

1 keyboard bracket 2 palm-rest assembly

3 tabs (3)
