UPMIDIAS

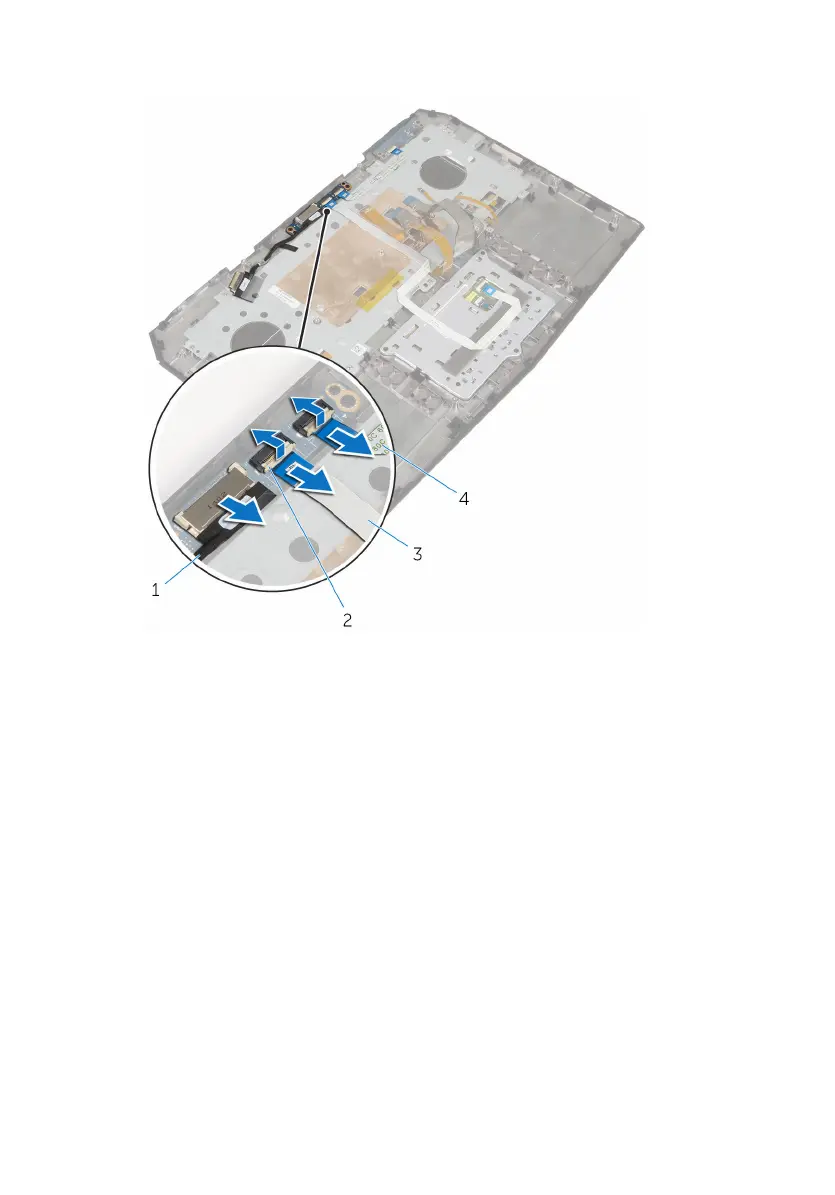

2 Disconnect the power-button board cable from the power-button board.
1 power-button board cable 2 latches (2)
3 touch-pad cable 4 status-light cable
3 Remove the screws that secure the power-button board to the palm-rest
assembly.
57
