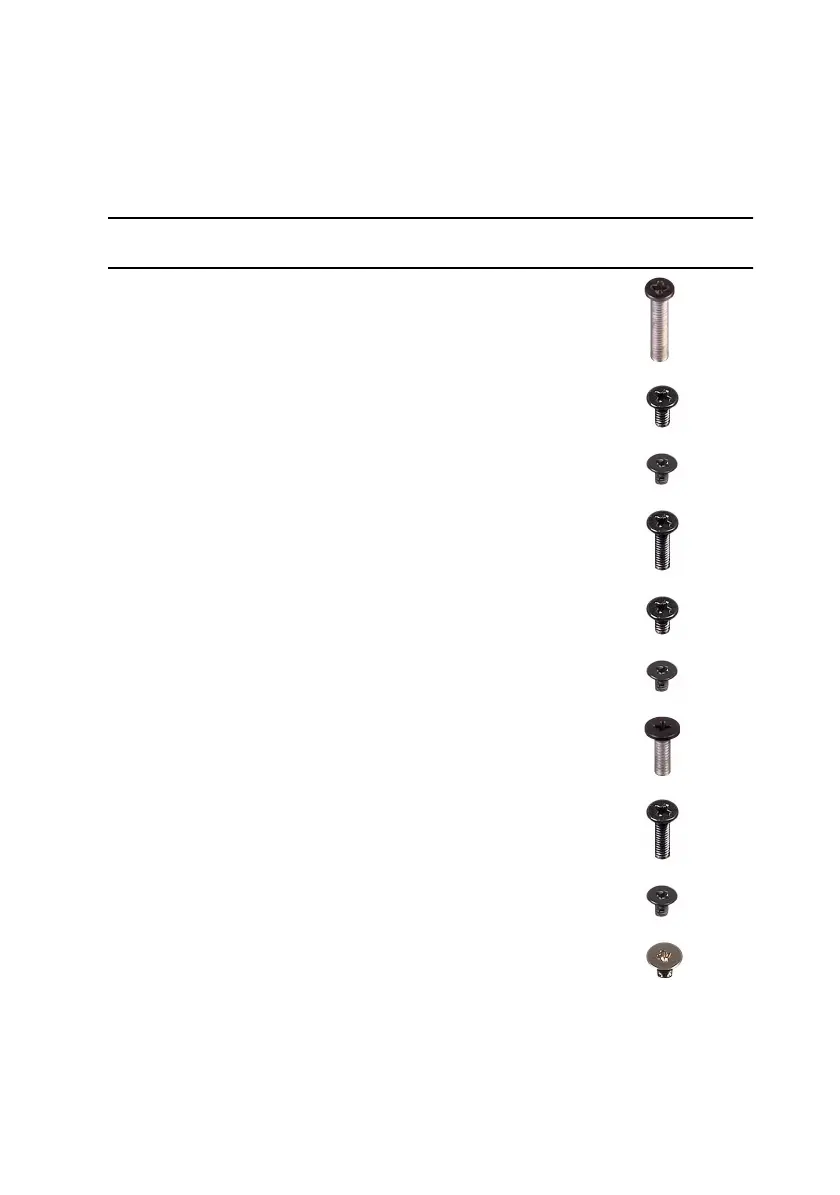

Screw list
Table 1. Screw list
Component Secured to Screw type Quantity Screw
Base cover Palm-rest
assembly
M2.5x13 6
Battery Palm-rest
assembly
M2.5x5 1
Solid-state
drive
Computer base M2x3 1
Hard-drive
assembly
Computer base M2.5x8 3
Hard-drive
bracket
Hard-drive
assembly
M3x3 4
Heat-sink
assembly
System board M2x3 7
Rear-I/O cover Palm-rest
assembly
M2.5x7 2
Computer base Palm-rest
assembly
M2.5x8 11
Computer base Palm-rest
assembly
M2x3 2
Display hinges Display back-
cover
M2.5x3 14
13
