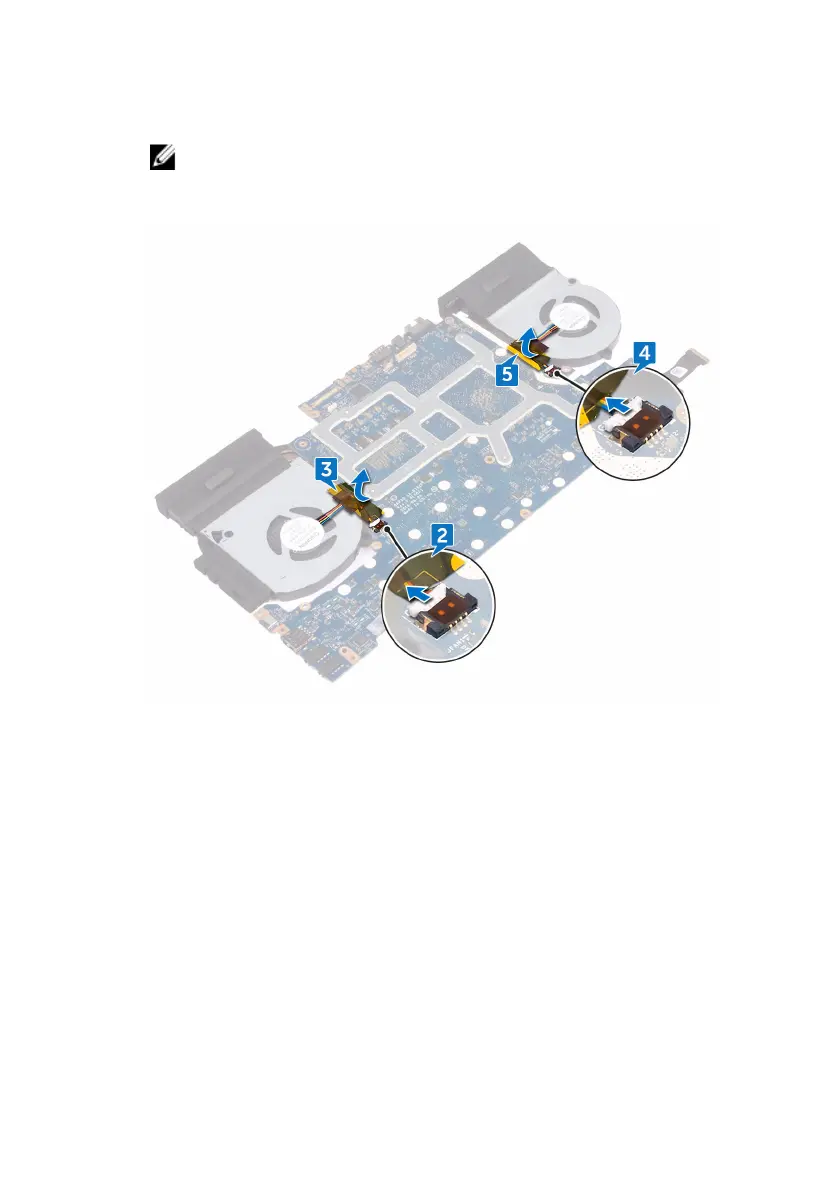

5 Peel off the tape that secures the fan cable to the system board.
NOTE: For computers shipped with NVIDIA GeForce GTX 1060
graphics controller, remove the fans after disconnecting the fan
cables from the system board.
6 Turn the system-board assembly over.
7 Remove the seven screws (M2x3) that secure the heat-sink assembly to the
system board.
72
