Alienware Area-51 m5750 Technical Reference
56
Upgrading the Hard Disk Drive
To replace the hard disk drive, do the following:
1. Turn OFF the computer. Unhook the AC cord and all cables/devices attached to
the notebook. Remove the battery.
2. Place your hand on a large metal object momentarily to discharge any static
electricity.

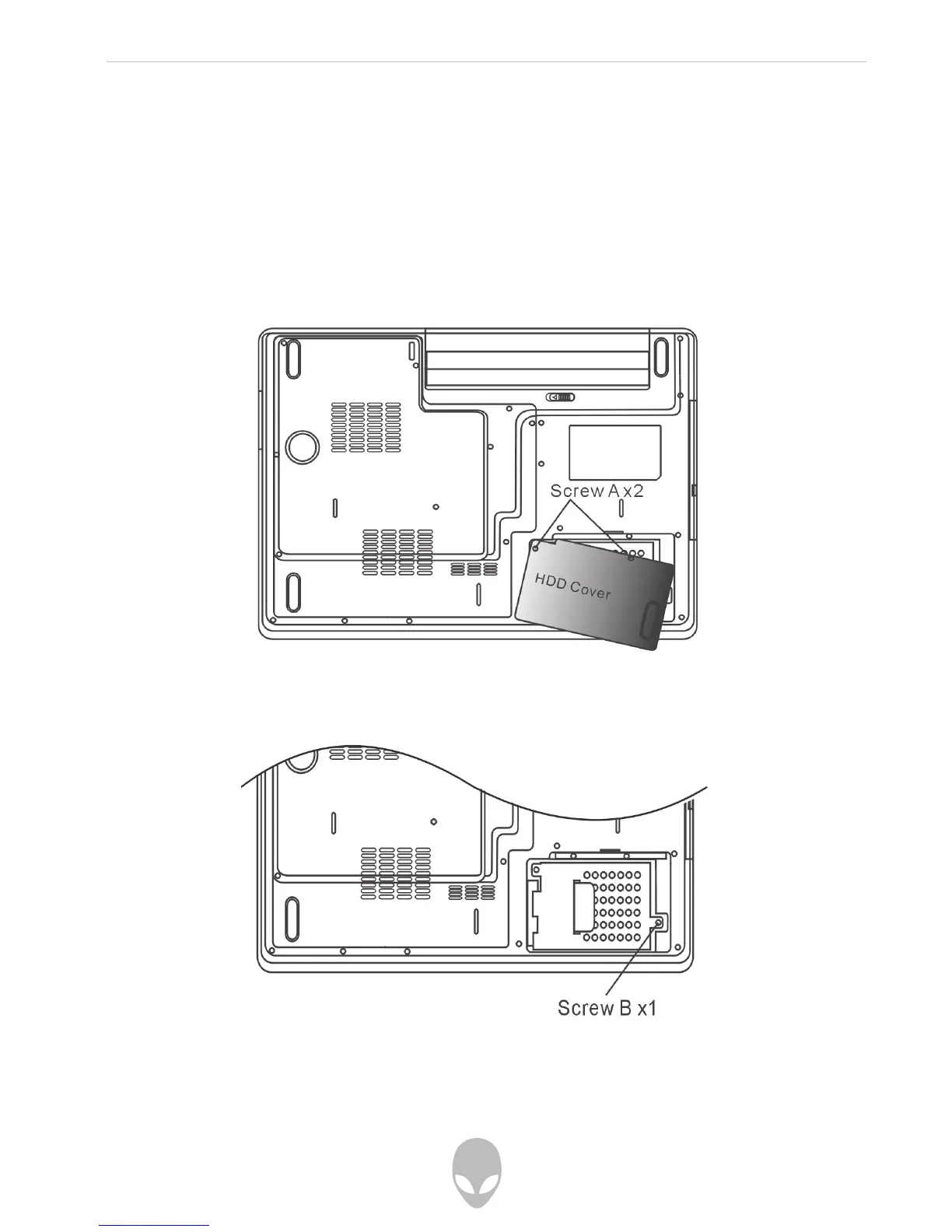

3. Locate and remove 2 Screw A’s.
4. Remove the HDD Cove
5. Locate and remove 1 Screw B.
