Alienware Area-51 m9750 - Computer Views and Ports

Alienware Area-51 m9750 Technical Reference
5

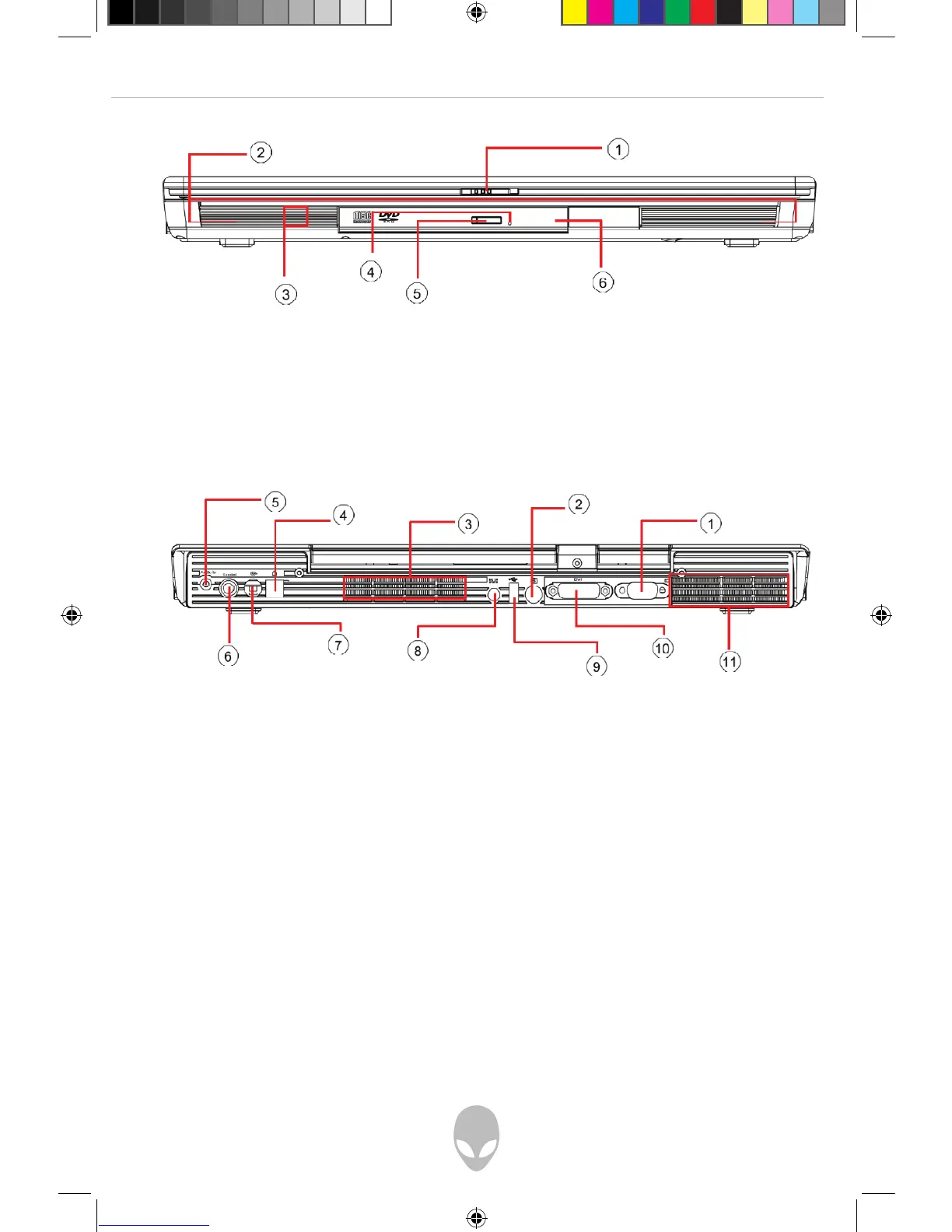

Front View
1. LCD Latch 4. Emergency Latch
2. Two Speakers 5. Eject Button
3. CIR Infrared Receiver Underneath 6. ODD Drive
Rear View
1. VGA Port 7. S-Video In Connector
2. S-Video Out Connector 8. DC-In Jack
3. Ventilation Holes 9. USB Connector
4. RJ11 Fax/Modem Connector 10. DVI Connector
5. Audio-In Connector 11. Ventilation Holes
6. TV-In Connector
