Alienware Area 51 - I;O Board Components

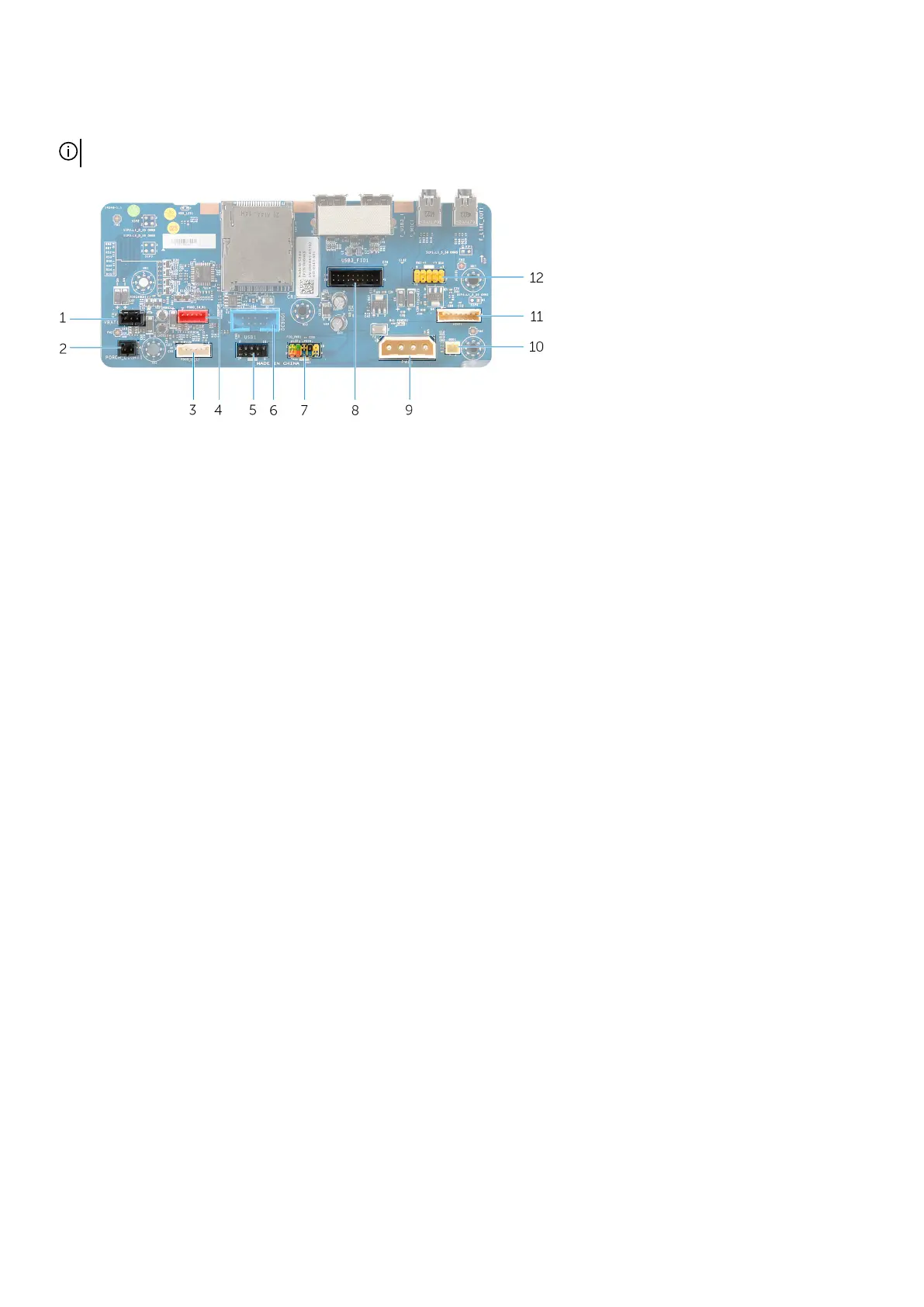

I/O Board Components
NOTE: The location of the connectors may vary based on the selections you made at the time of purchase.
1. rear I/O accessibility lighting battery connector (VBAT1) 2. rear I/O accessibility lighting connector (PORCH_LIGHT1)
3. left theater-lighting connector (POGO_IN_L1) 4. right theater-lighting connector (POGO_IN_R1)
5. USB connector (USB1) 6. debug connector (DEBUG1)
7. front I/O control connector (FIO_PWR1) 8. front I/O connector (USB3_FIO1)
9. main-power connector (PWR1) 10. optical drive power connector (ODD1)
11. logo board connector (LOGO1) 12. audio connector (AUDIOIO1)
