Removing the Drive-Bay Heat-Sensor
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After
Working Inside Your Computer. For more safety best practices, see the Regulatory Compliance home page at dell.com/
regulatory_compliance.
Prerequisites
1. Remove the
stability foot.
2. Remove both the left and right side-panels. See “Removing the Side Panels”.
Procedure
1. Lay the chassis on the left side.
2. Locate the drive-bay heat-sensor connector (SENSOR1) on the system board. For more information on the drive-bay heat-sensor
connector, see “System-Board Components”.
3. Disconnect the drive-bay heat-sensor cable from the connector on the system board.

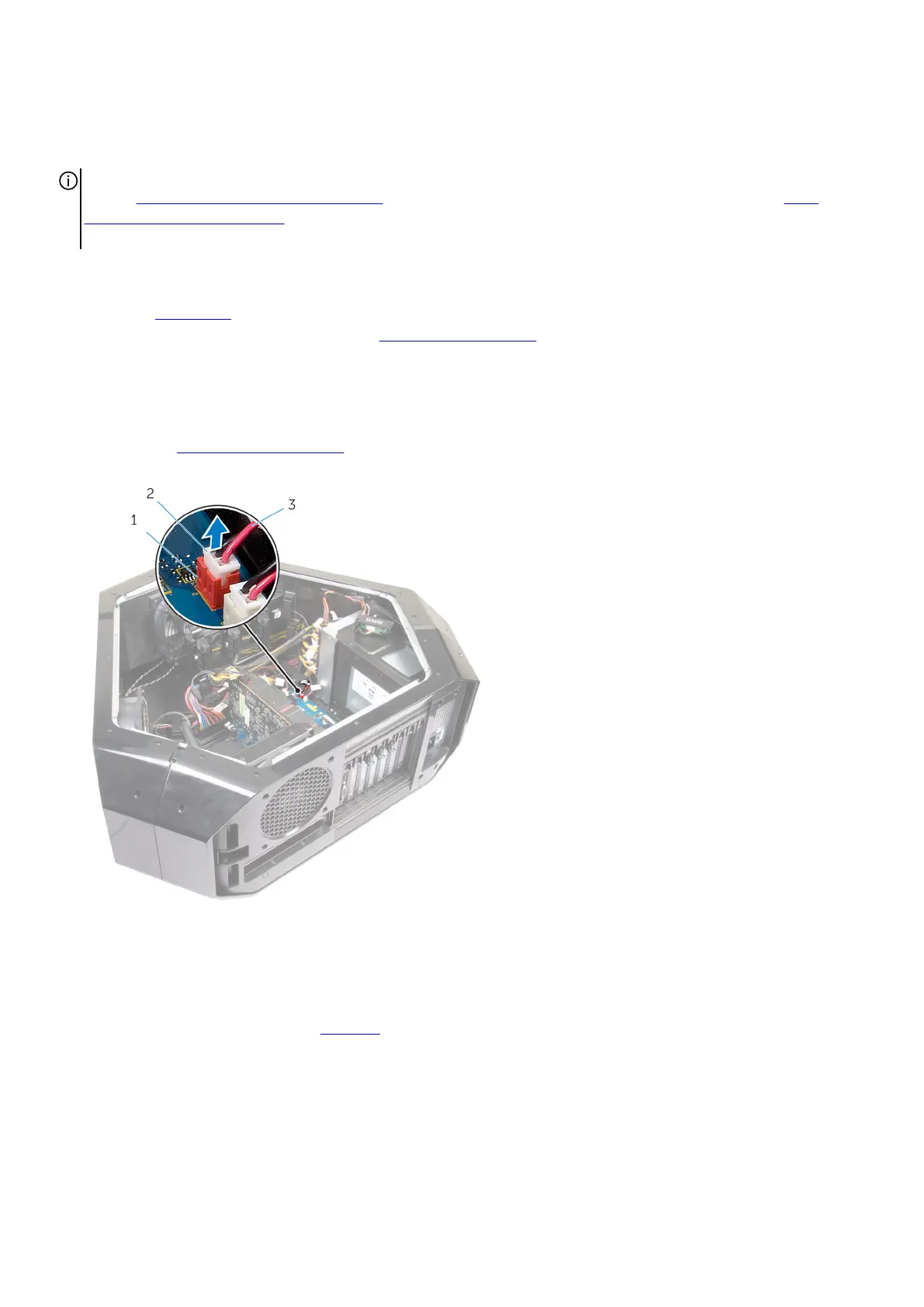

a. drive-bay heat-sensor connector
b. drive-bay heat-sensor cable connector
c. drive-bay heat-sensor cable
4. Turn the chassis over.
5. Remove the cable through the sensor bracket.
6. Locate the drive-bay heat-sensor. See “
Left View”.
7. Press the release tab on the securing clip.
8. Pry out the drive-bay heat-sensor cable from the securing clip.
9. Slide the drive-bay heat-sensor cable out of the sensor bracket.
