Alienware Area 51 - Page 56

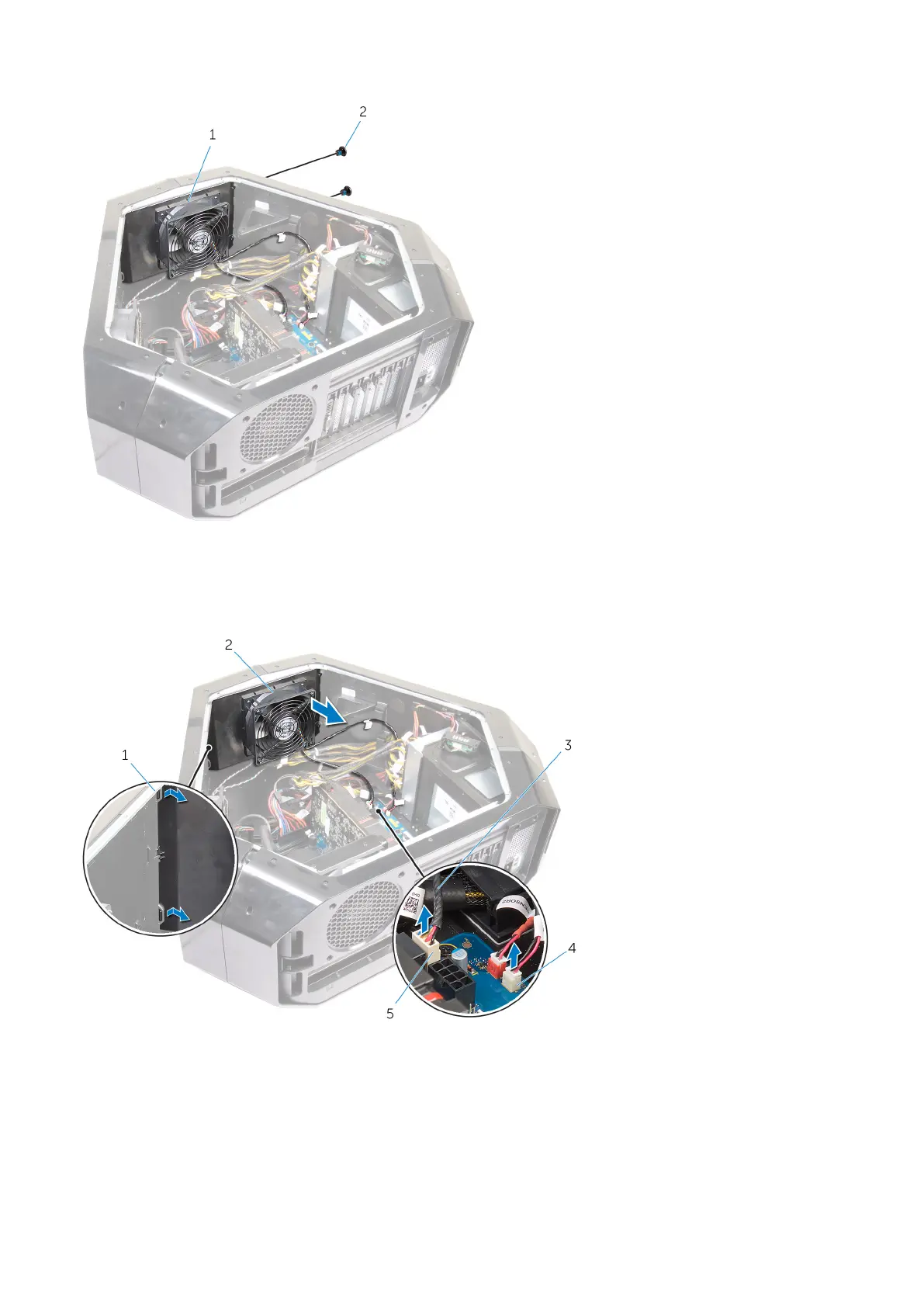

a. PCI fan
b. screws (2)
4. Disconnect the PCI-fan cable and front-bezel heat-sensor cable from the connector on the system board.
5. Pry out the PCI fan from the tabs securing it to the chassis.
1.
tabs 2. PCI fan
3. PCI-fan cable 4. front-bezel heat-sensor
5. PCI-fan connector
6. Remove the screws securing the fan shroud to the PCI fan.
7. Pry out the PCI fan from the fan shroud by lifting the fan shroud upwards.
56
