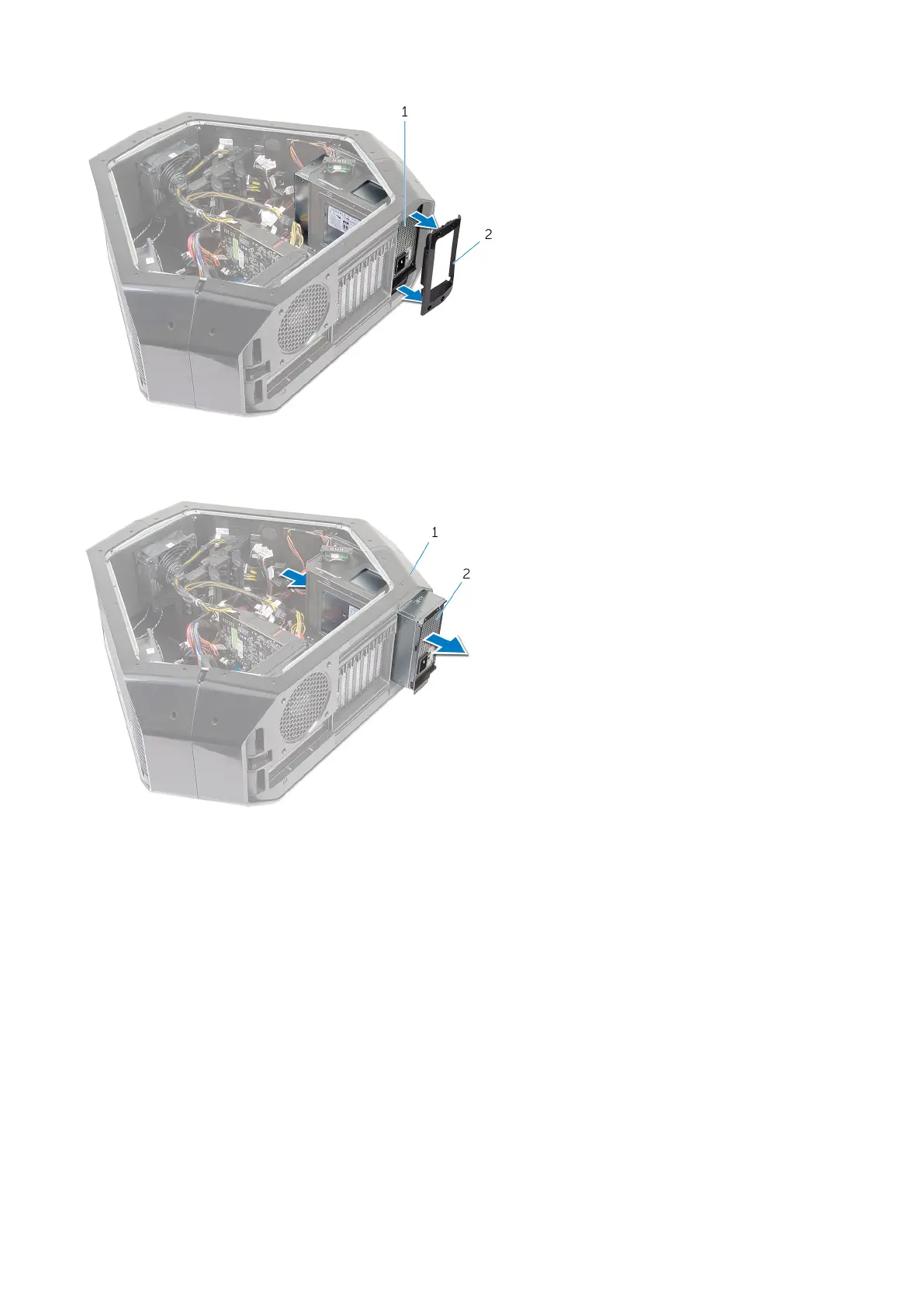

a. power supply

b. power-supply cover

5. Slide the power-supply unit out through the back of the chassis and remove it from the computer.

a. chassis

b. power-supply unit
