■ chapter 4 upgrading your computer
4-10
Installing a Mini PCI Card into the System
To install a new Mini PCI card, do the following:
1. Follow steps in the previous section, Installing a memory
module (DIMM) into the system, to access the Mini PCI Socket.

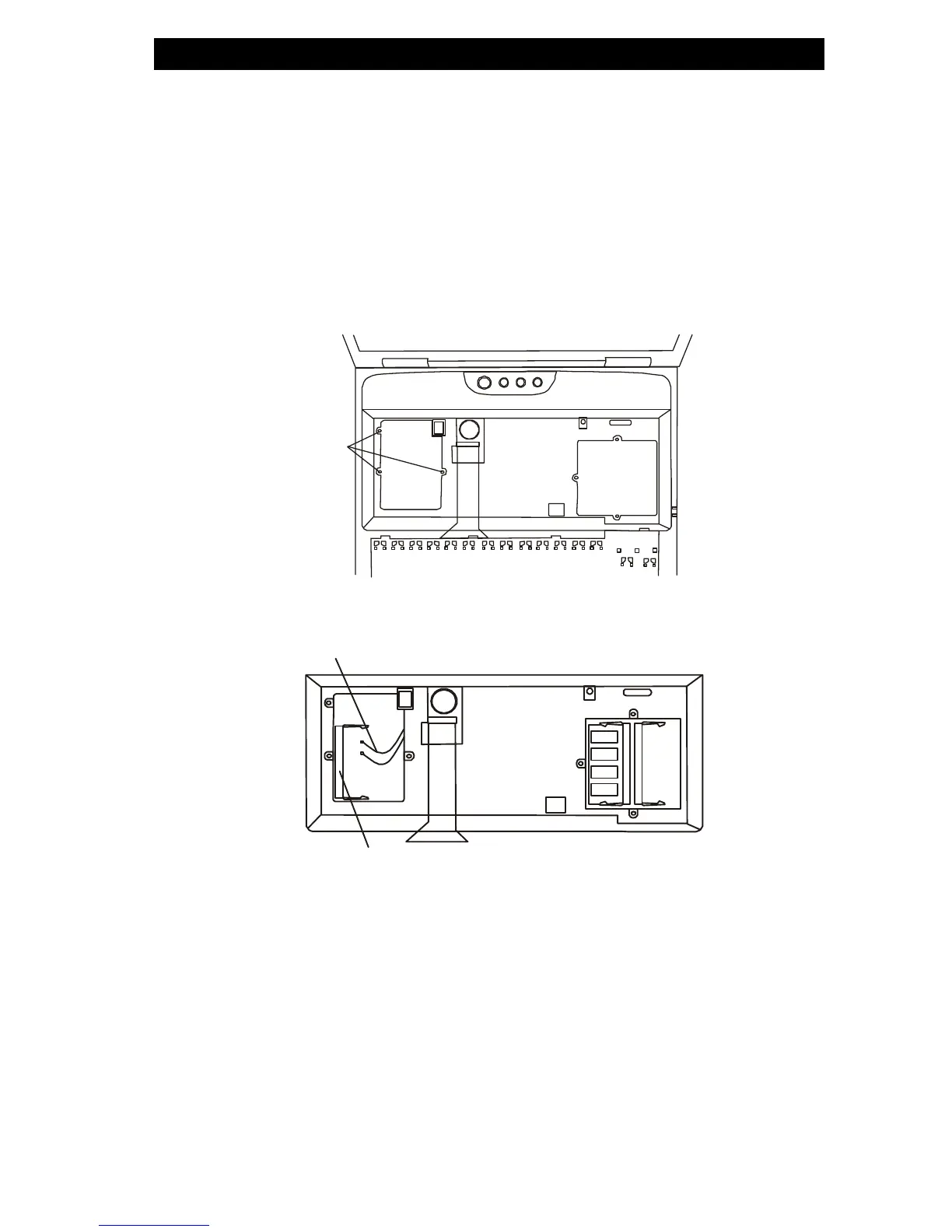

Remove 3 Screw B’s and MiniPCI Socket Metal Cover.
Screw B x3
Metal Cover
Wireless Antenna Cable with Connector
2. The mini PCI card will only fit in one direction. Align the
small notch in the module with the socket on the connector and
insert the card at an angle of approximately 30 degrees into the
empty socket. Then press it firmly so that the contact edge is
driven into the receiving socket. Pivot the mini PCI card until
