Alienware Area-51m - Removing the Computer Base

Alienware Area-51m
125 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

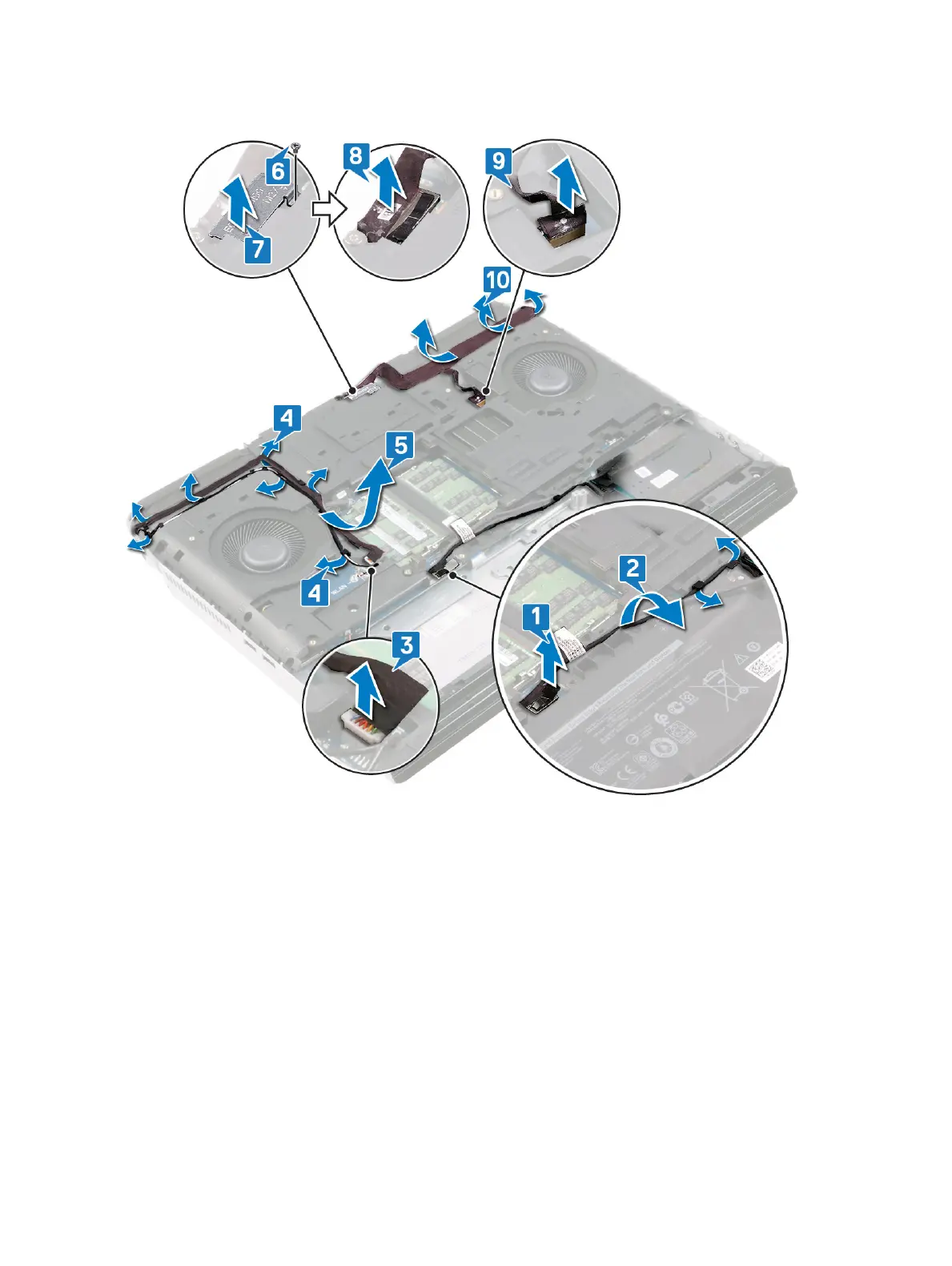

10 Peel o the display cable and the camera cable from the computer base.
11 Remove the screw (M2.5x12) that secures the computer base to the palm-rest assembly.
12 Remove the 14 screws (M2.5x8) that secure the computer base to the palm-rest assembly.
66
