Alienware Aurora Ryzen Edition R14 - Page 74

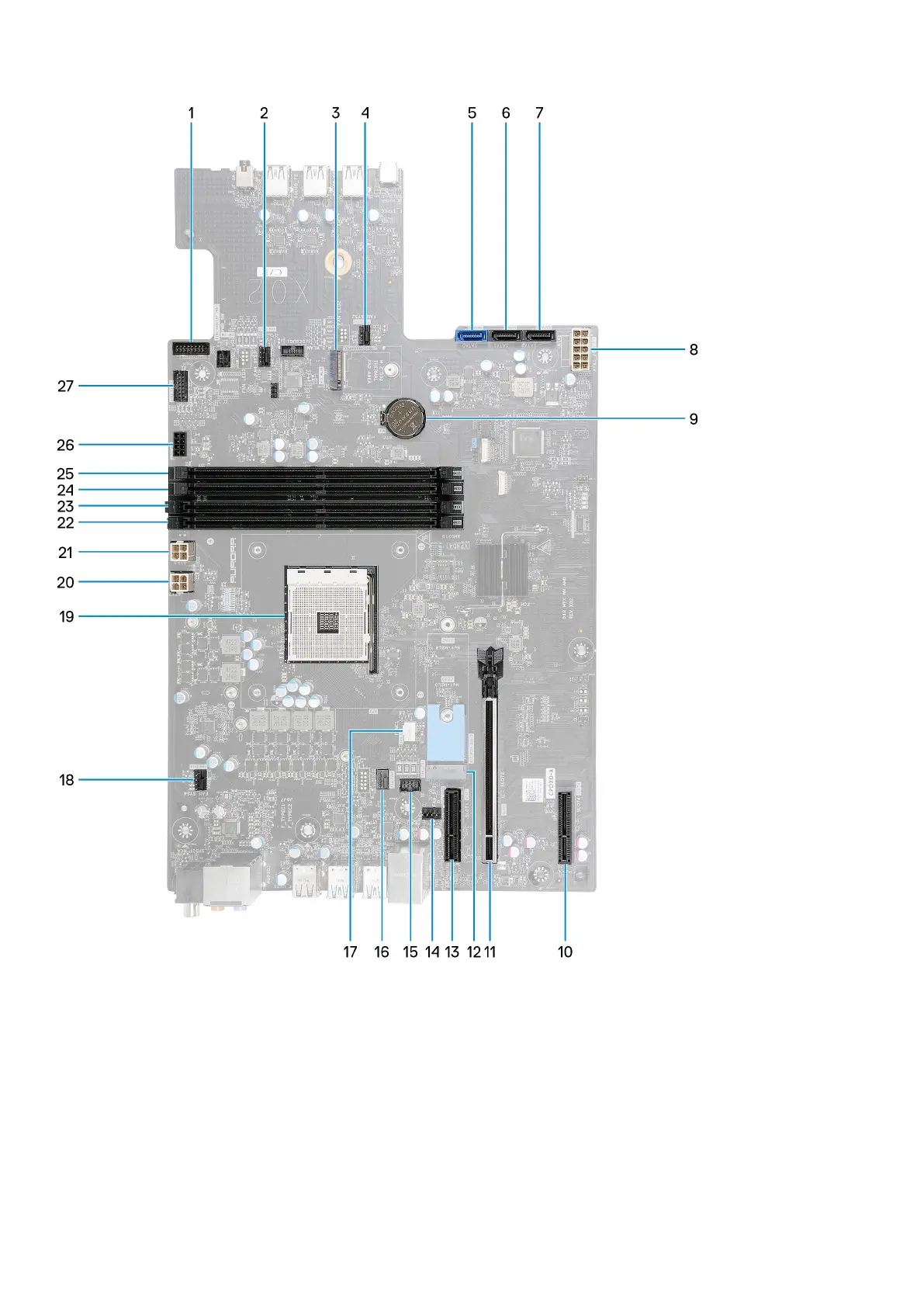

1. Ring Ambient Power Button connector
2. FAN_SYS3 connector
3. Wireless-card slot (M.2 WLAN)
4. FAN_SYS2 connector
5. SATA 6 Gbps drive connector (SATA0)
6. SATA 6 Gbps drive connector (SATA1)
7. SATA 6 Gbps drive connector (SATA2)
8. Power-supply connector (ATX1_2)
9. Coin-cell battery
10.PCI-Express x4 slot (SLOT4)
11. PCI-Express x16 mechanical/x16 electrical slot PCIe Gen4 (SLOT2)
74
