Battery cable
Removing the battery cable
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
NOTE: If the battery is disconnected from system board for service, then there is a delay during boot as the computer undergoes
RTC battery reset.

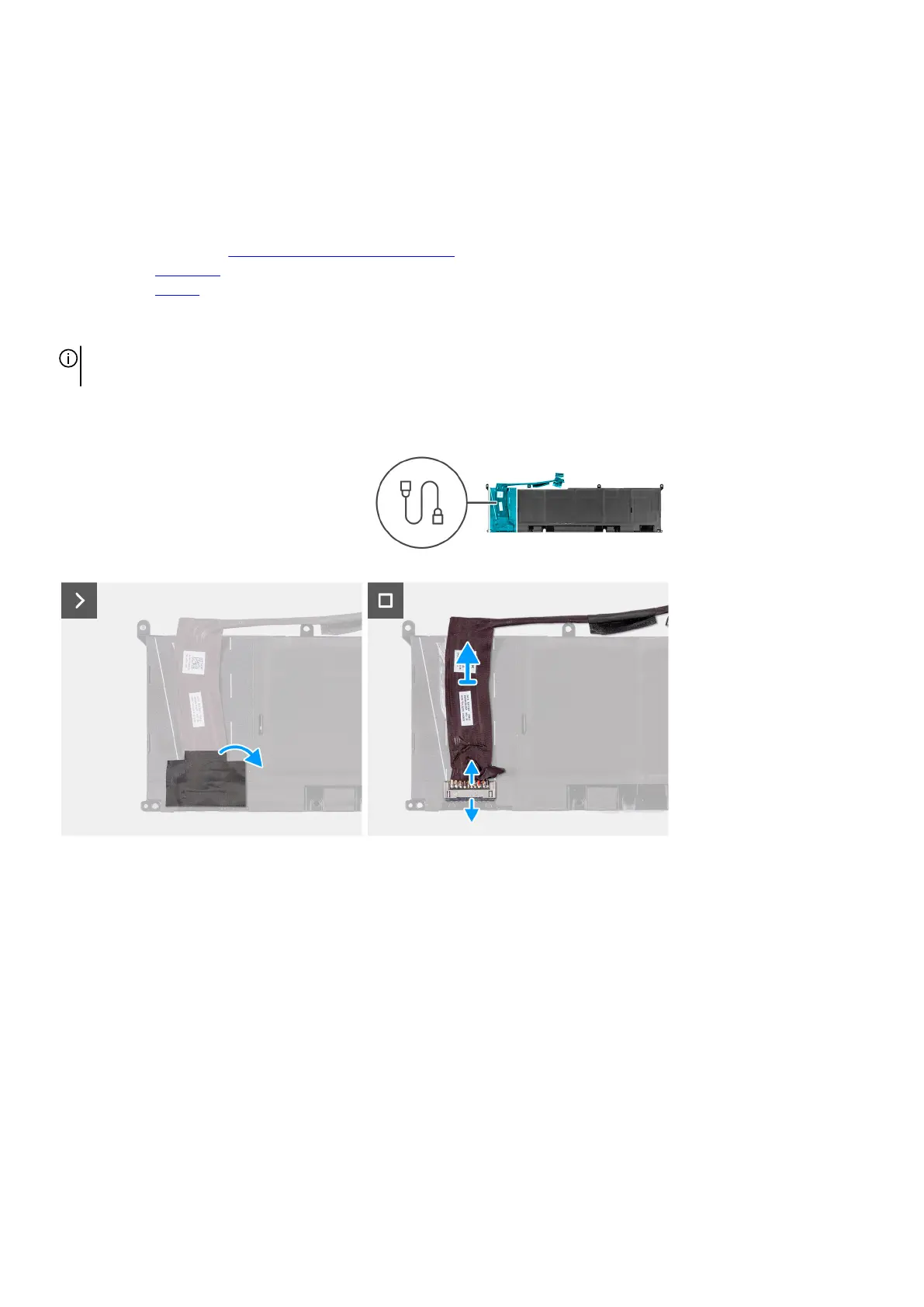

The following image(s) indicate the location of the battery cable and provides a visual representation of the removal procedure.
Steps
1. Turn the battery over.
2. Peel the tape securing the battery cable.
3. Open the latch to disconnect the battery cable from the battery.
4. Peel the battery cable off the battery.
5. Lift the battery cable off the battery.
Installing the battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the battery cable and provides a visual representation of the installation procedure.
