Steps

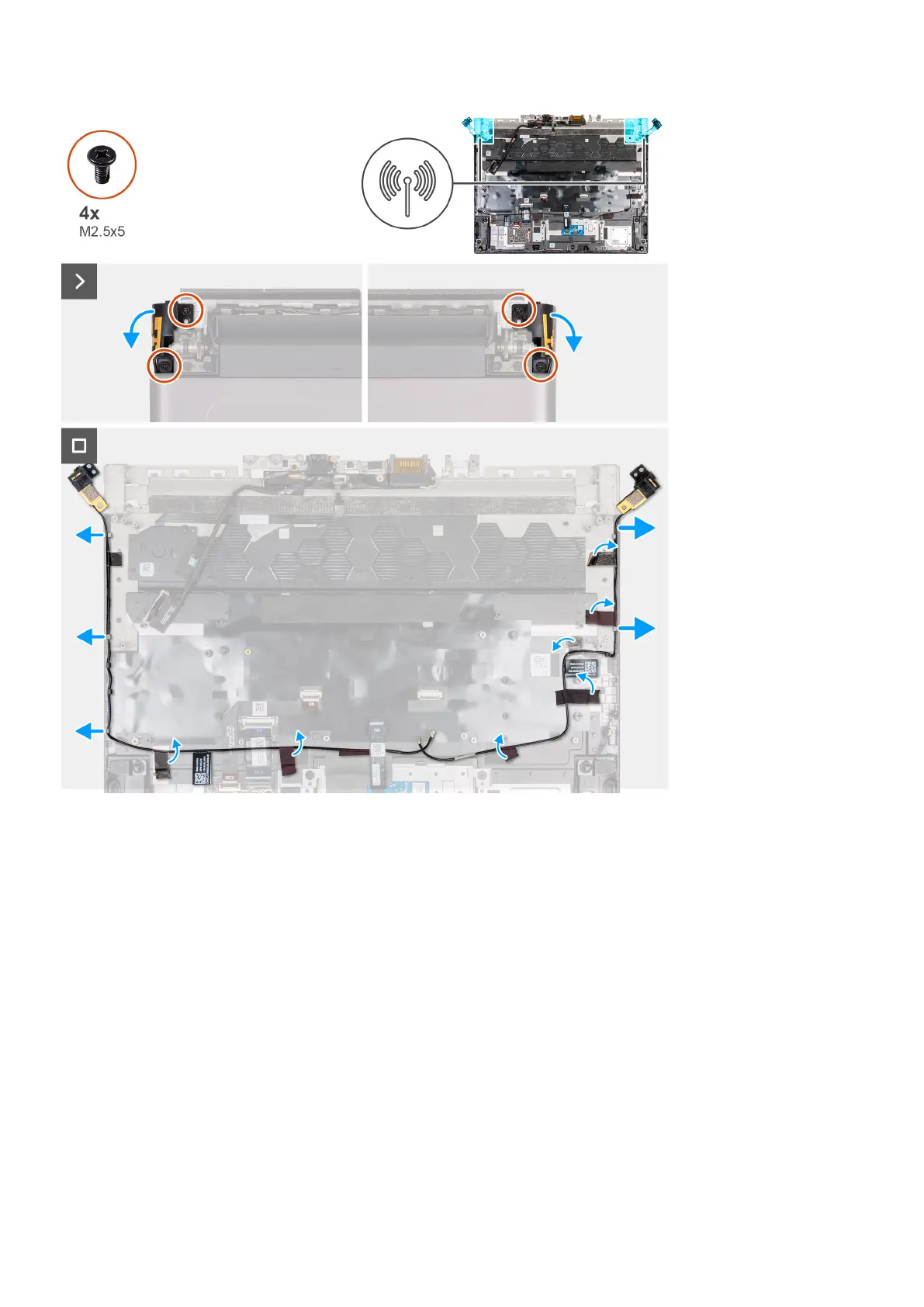

1. Turn the computer over.
2. Remove the four screws (M2.5x5) that secure the antenna holder to the display assembly.
3. Disconnect the antenna holder from the display assembly.
4. Remove the antenna cables from the routing guides on the palm-rest and keyboard assembly.
Installing the antennas
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the antennas and provides a visual representation of the installation procedure.
43
