4. Peel the tapes securing the display cable to the system board and lift the display cable off the system board.
5. Turn the computer over.
6. Remove the four screws (M2.5x5) that secure the antenna holder to the palm-rest and keyboard assembly.
7. Remove the six screws (M2.5x5) that secure the display assembly to the palm-rest and keyboard assembly.
8.

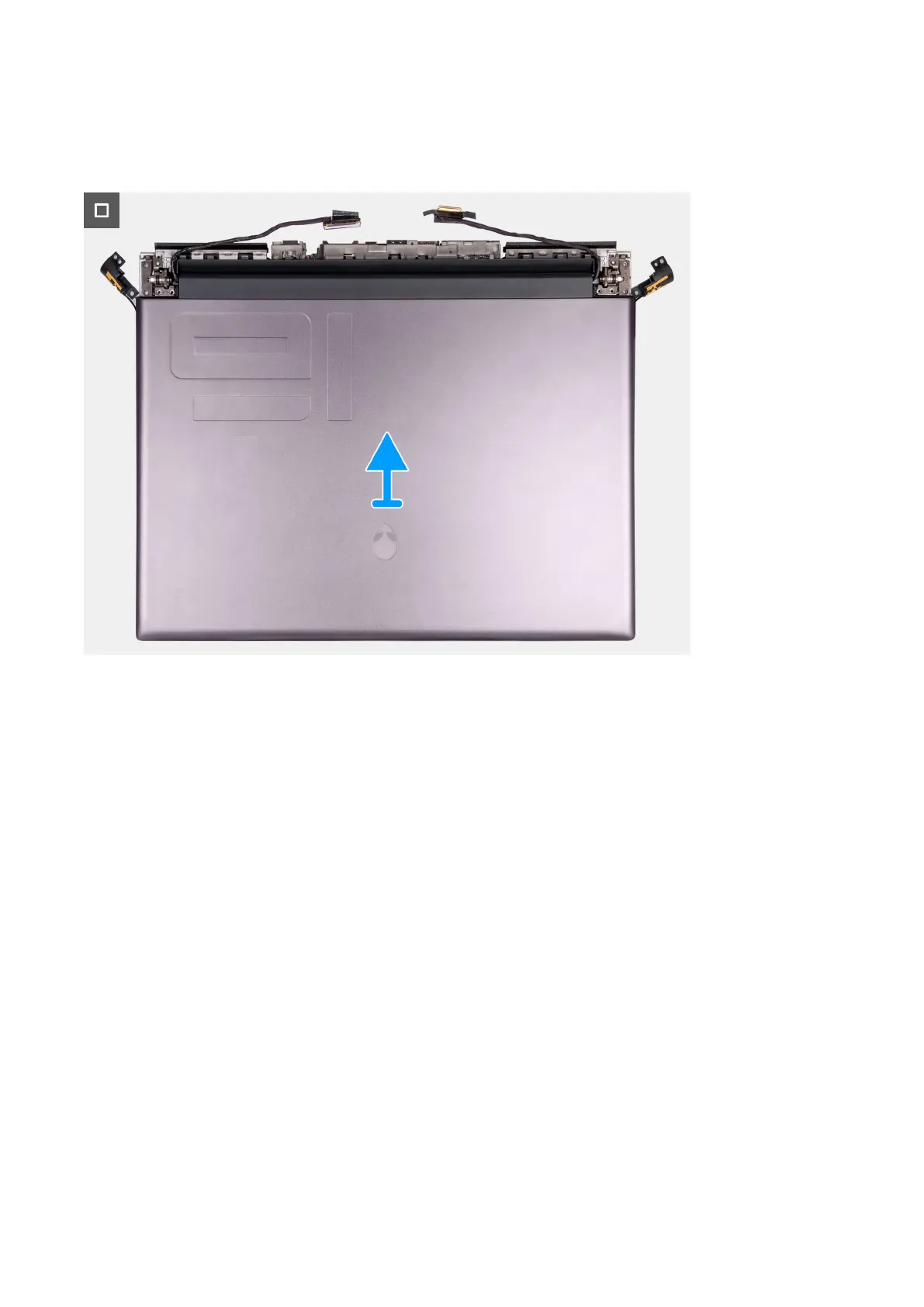

Lift the display assembly off the palm-rest and keyboard assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the display assembly and provides a visual representation of the installation
procedure.
46
