Steps

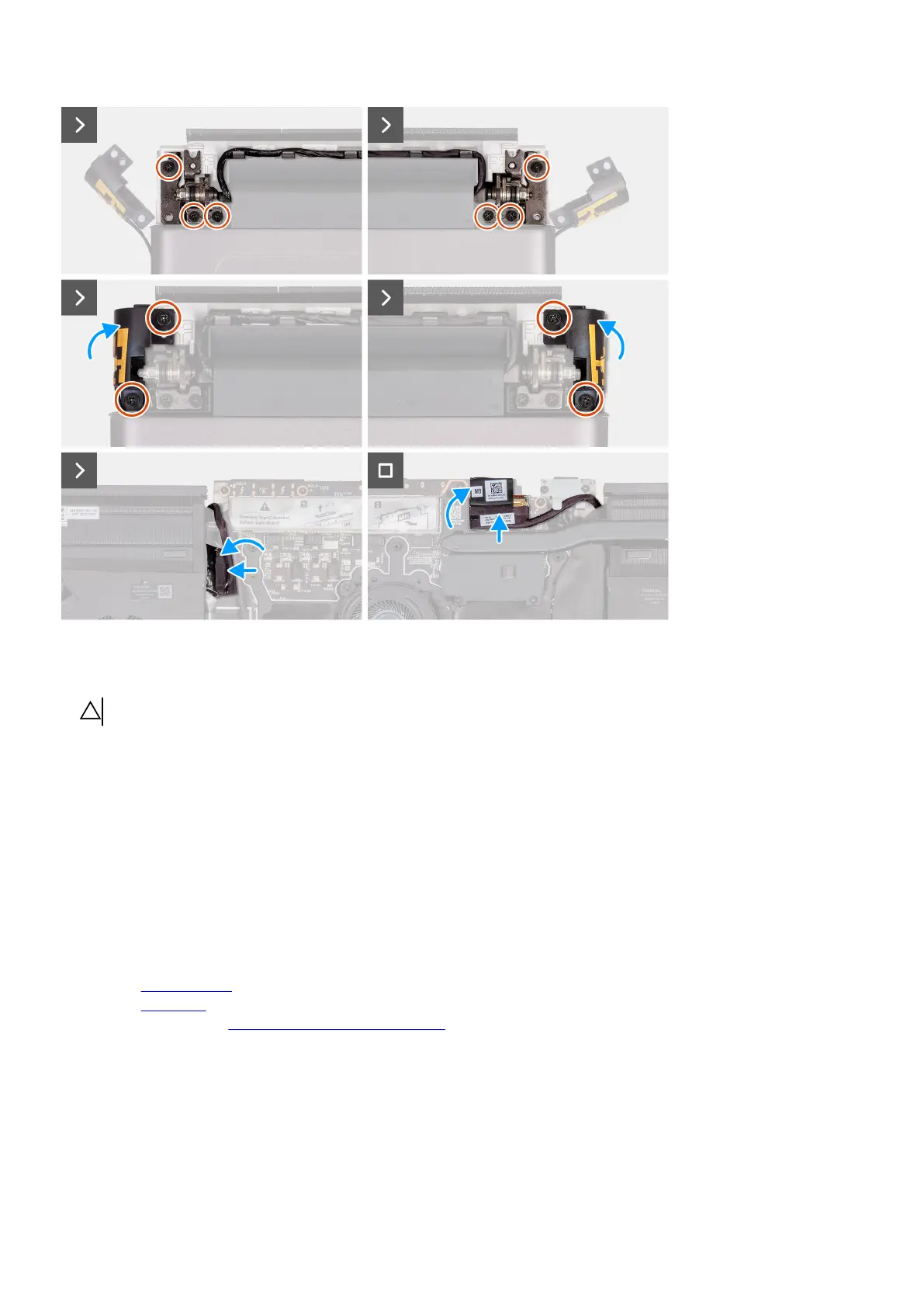

1. Place the display assembly on the palm-rest and keyboard assembly.
CAUTION: To avoid damaging the display, do not slide display assembly over the palm-rest and keyboard assembly.
2. Align the screw holes on the display assembly to the screw holes on the palm-rest and keyboard assembly.
3. Replace the six screws (M2.5x5) that secure the display assembly to the palm-rest and keyboard assembly.
4. Place the antenna holder on the palm-rest and keyboard assembly.
5. Replace the four screws (M2.5x5) that secure the antenna holder to the palm-rest and keyboard assembly.
6. Turn over the computer.
7. Adhere the tape that secures the camera cable to the palm-rest and keyboard assembly.
8. Adhere the camera cable to the system board.
9. Connect the display cable to the system board and close the latch to secure the cable.
10.Adhere the tape that secures the display-cable connector latch to the system board.
Next steps
1. Install the
rear-I/O cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
