Steps
1.
CAUTION: Do not use an alcohol wipe to clean the Element 31 thermal grease off the surface of the processor, the
alcohol solution from the wipes will dissolve the Element 31 grease into conductive metal particles. If these conductive
metal particles come into contact with the surface of the system board, it will cause the an electrical short when your
computer is powered on.

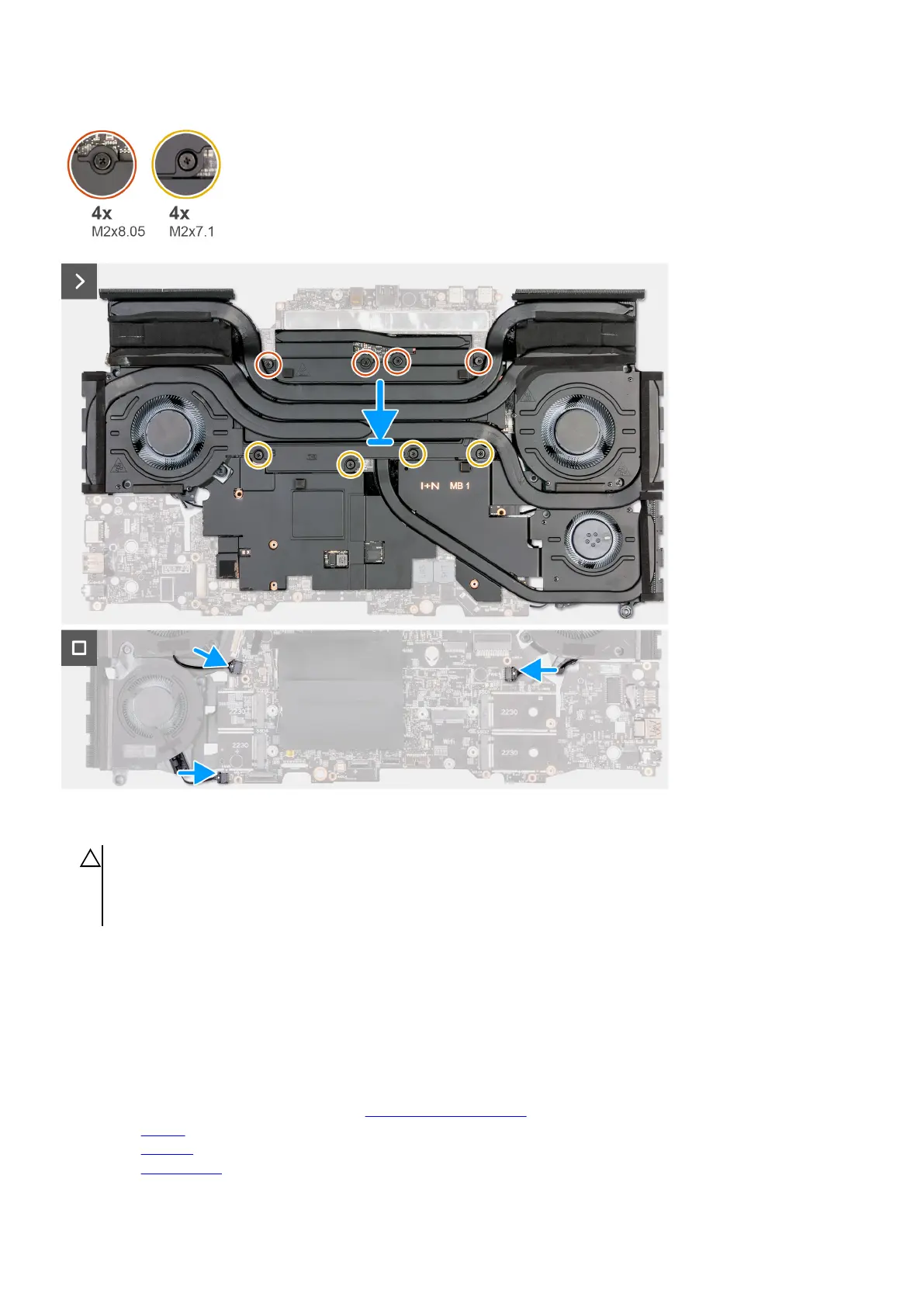

Place the fan and heat-sink assembly on the system board.
2. Align the screw holes on the fan and heat-sink assembly to the screw holes on the system board.
3. In sequential order (1>2>3>4>5>6>7>8), tighten the eight captive screws that secure the fan and heat-sink assembly to the
system board.
4. Turn over the system-board assembly.
5. Connect the right and left fan cables to the system board.
Next steps
1. Follow the procedure from step 5 to step 13 in Installing the system board.
2. Install the battery.
3. Install the
small fan.
4. Install the top heat-sink.
