R0368
Cod.R0368‐rev.1.0
(03/2020)
Page 12/14
1
2
3
4
6
5
7
7

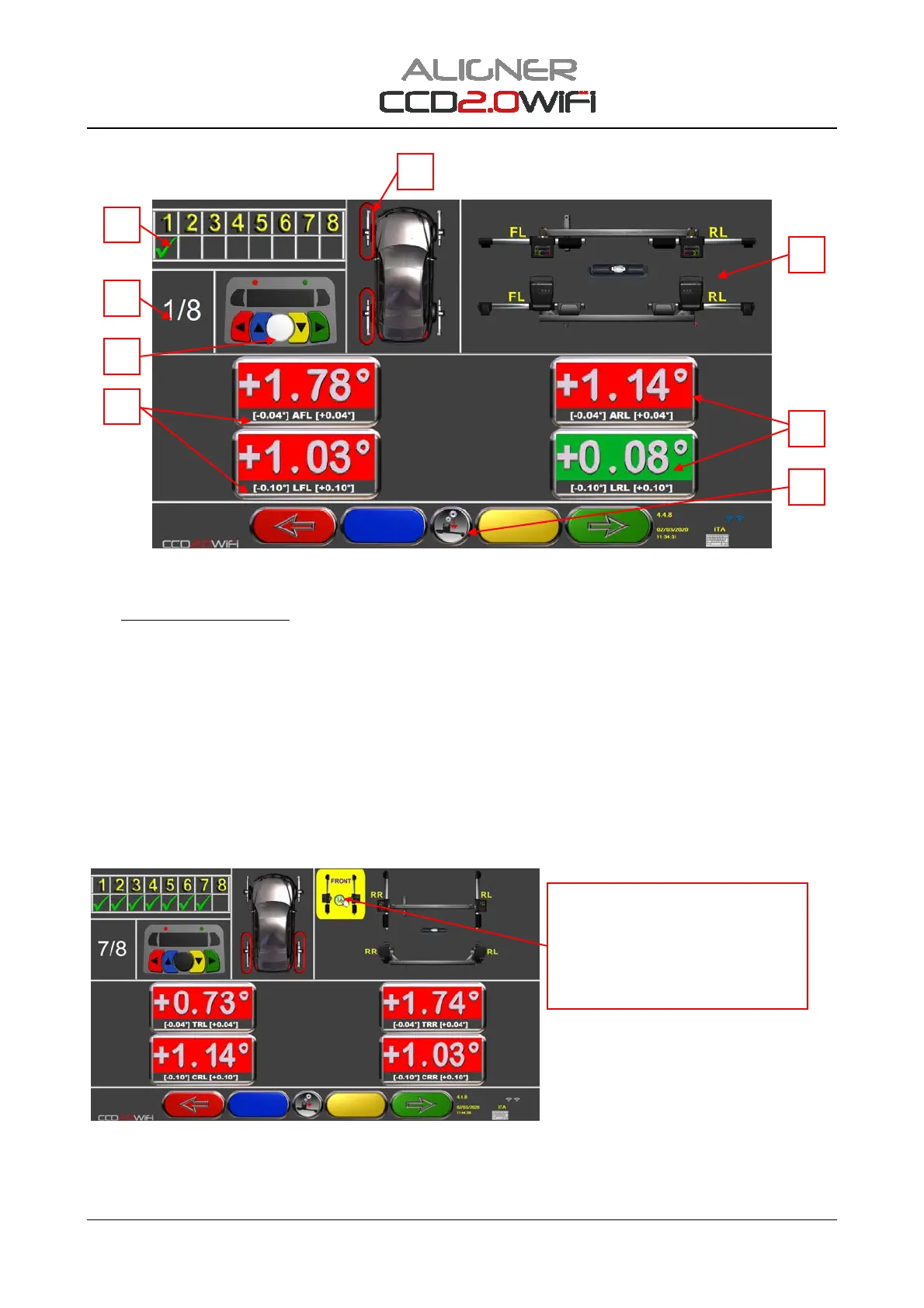

When calibrating the rear
sensors (phases 7 and 8) it is
necessary to position the front
sensors in correspondence, so
that data transmission passes
through them.

Figure22
LegendoftheFigure22:
1‐ Detectorscalibratedinthecurrentphase
2. Currentcalibrationphase
3‐ Calibrationphasesalreadyacquired
4‐ Anglecalibratedinthecurrentphasewiththerelativetolerance
5‐ Currentlyreadangularvalue
6‐ Graphicaldescriptionofthepositioningofthedetectorsonthestand
7‐ Keysusedtoperformthecalibrationphase(F5orthecentralkey onthedetector);itis shownand
flasheswhenitcanbepressed.
PressF5tostorethevaluesandthenF4tocontinuetothenextphase.
ATTENTION:thereartransmissionalwayspassesthroughthefrontones.

Figure23
