All-Power APGG4000 User Manual

4000W Generator

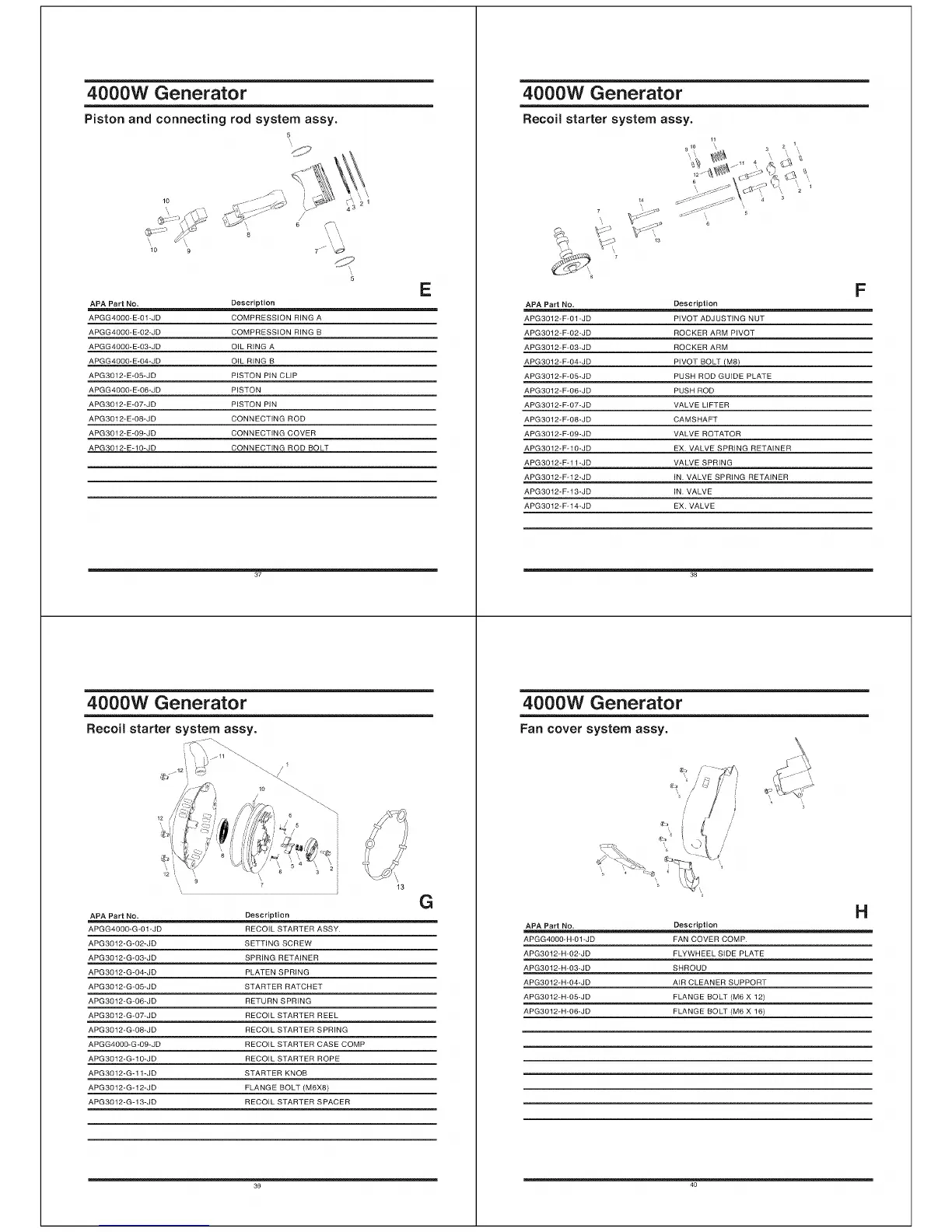

Piston and connecting rod system assy.
5
APA Part No. Description
APGG4000-E-01-JD COMPRESSION RING A
APGG4000-E-02-JD COMPRESSION RING B
APGG4000-E-03-JD OIL RING A
APGG4000-E-04-JD OIL RING B
APG3012-E-05-JD PISTON PIN CLIP
APGG4000-E-06-JD PISTON
APG3012-E-07-JD PISTON PIN
APG3012-E-08-JD CONNECTING ROD
APG3012-E-09-JD CONNECTING COVER
APG3012-E-10-JD CONNECTING ROD BOLT
37
4000W Generator
Recoil starter system assy.
E
4000W Generator
Recoil starter system assy.
910
7
\,
14
APA Part No.
APG3012-F-01 -JD
APG3012-F-02-JD
APG3012-F-03-JD
APG3012-F-04-JD
APG3012-F-05-JD
APG3012-F-06-JD
APG3012-F-07-JD
APG3012-F-08-JD
APG3012-F-09-JD
APG3012-F-10-JD
APG3012-F-11 -JD
APG3012-F-12-JD
APG3012-F-13-JD
APG3012-F-14-JD
Description
PIVOT ADJUSTING NUT
ROCKER ARM PIVOT
ROCKER ARM
PIVOT BOLT M_
PUSH ROD GUIDE PLATE
PUSH ROD
VALVE LIFTER
CAMSHAFT
VALVE ROTATOR
EX. VALVE SPRING RETAINER
VALVE SPRING
IN. VALVE SPRING RETAINER
IN. VALVE
EX. VALVE
4000W Generator
Fan cover system assy.
APA Part No. Description
APGG4000-G-01-JD RECOIL STARTER ASSY.
APG3012-G-02-JD SETTING SCREW
APG3012-G-03-JD SPRING RETAINER
APG3012-G-04-JD PLATEN SPRING
APG3012-G-05-JD STARTER RATCHET
APG3012-G-06-JD RETURN SPRING
APG3012-G-07-JD RECOIL STARTER REEL
APG3012-G-08-JD RECOIL STARTER SPRING
APGG4000-G-09-JD RECOIL STARTER CASE COMP
APG3012-G-10-JD RECOIL STARTER ROPE
APG3012-G-11-JD STARTER KNOB
APG3012-G-12-JD FLANGE BOLT (M6X8)
APG3012-G-13-JD RECOIL STARTER SPACER
39
13
G
I
/'
/
APA Part No. Description
APGG4000-H-01-JD FAN COVER COMP.
APG3012-H-02-JD FLYWHEEL SIDE PLATE
APG3012-H-03-JD SHROUD
APG3012-H-04-JD AIR CLEANER SUPPORT
APG3012-H-05-JD FLANGE BOLT (M6 X 12)
APG3012-H-06-JD FLANGE BOLT (M6 X 16)
40
F
H
