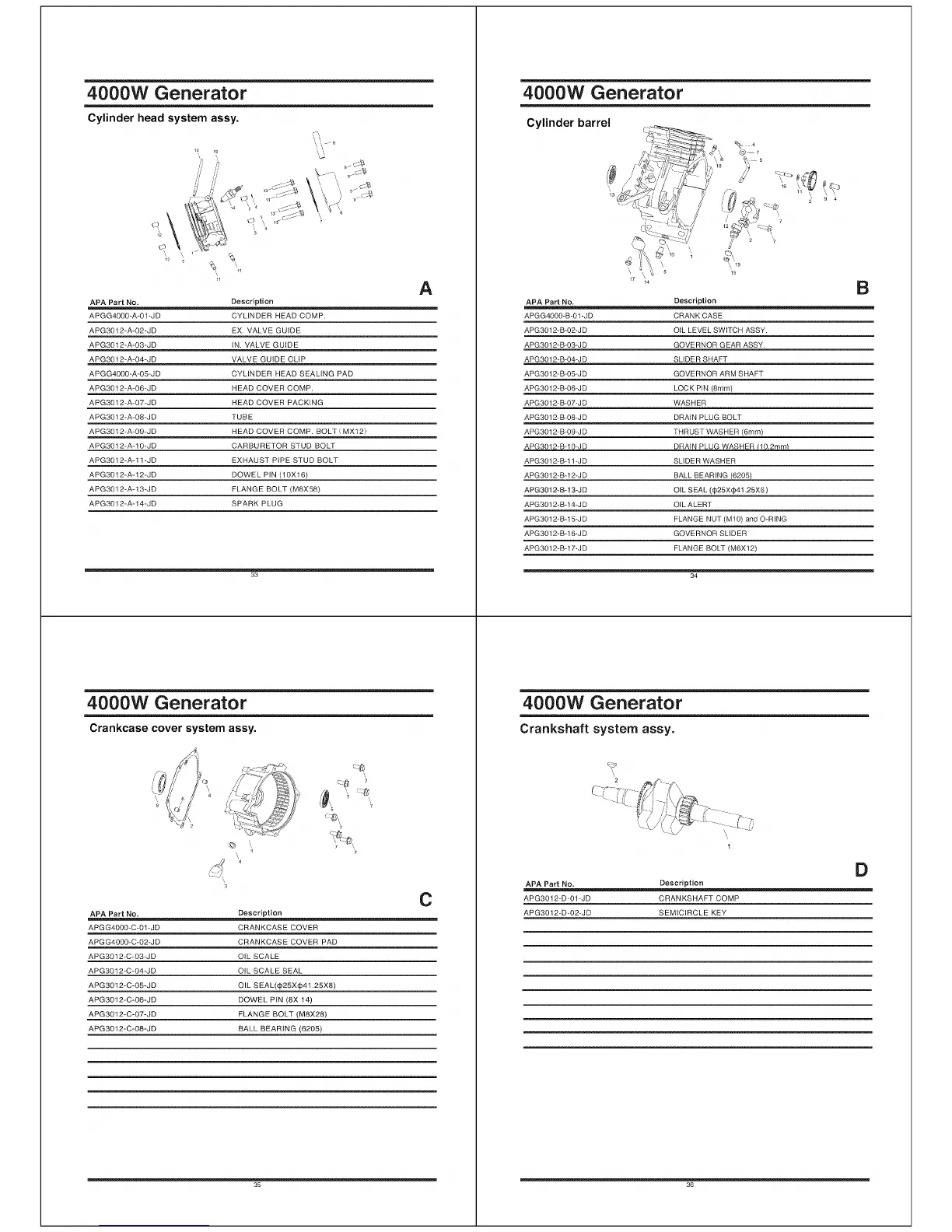

All-Power APGG4000 User Manual

4000W Generator
Cylinder head system assy.
APA Part No. Description
APGG4000-A-01-JD CYLINDER HEAD COMP.
APG3012-A-02-JD EX. VALVE GUIDE
APG3012-A-03-JD IN. VALVE GUIDE
APG3012-A-04-JD VALVE GUIDE CLIP
APGG4000-A-05-JD CYLINDER HEAD SEALING PAD
APG3012-A-06-JD HEAD COVER COMP.
APG3012-A-07-JD HEAD COVER PACKING
APG3012-A-08-JD TUBE
APG3012-A-09-JD HEAD COVER COMP. BOLT (MX12)
APG3012-A-10-JD CARBU RETOR STUD BOLT
APG3012-A-11-JD EXHAUST PiPE STUD BOLT
APG3012-A-12-JD DOWEL PIN (10X16)
APG3012-A-13-JD FLANG E BOLT (M8X58)
APG3012-A-14-JD SPARK PLUG
33
4000W Generator
Crankcase cover system assy.
'4
APA Part No. Description
APGG4000-C-01-JD CRANKCASE COVER
APGG4000-C-02-JD CRANKCASE COVER PAD
APG3012-C-03-JD OIL SCALE
APG3012-C-04-JD OIL SCALE SEAL
APG3012-C-05-JD OIL SEAL(d225X_41.25X8)
APG3012-C-06-JD DOWEL PIN (8X 14)
APG3012-C-07-JD FLANGE BOLT (M8X28)
APG3012-C-08-JD BALL BEARING (6206)
35
A
C
4000W Generator
Cylinder barrel
APA Part No.
APGG4000-B-01-JD
APG3012-B-02-JD
APG3012-B-03-JD
APG3012-B-04-JD
APG3012-B-05-JD
APG3012-B-06-JD
APG3012-B-07-JD
APG3012-B-08-JD
APG3012-B-09-JD
APG3012-B-10-J D
APG3012-B-11-J D
APG3012-B-12-J D
APG3012-B-13-JD
APG3012-B-14-JD
APG3012-B-15-J D
APG3012-B-16-J D
APG3012-B-17-J D
Description
CRANK CASE
OIL LEVEL SWITCH ASSY.
GOVERNOR GEAR ASSY.
SLIDER SHAFT
GOVERNOR ARM SHAFT
LOCK PIN (8ram)
WASHER
DRAIN PLUG BOLT
THRUST WASHER (6mm)
DRAIN PLUG WASHER
SLIDER WASHER
BALL BEARING
OIL SEAL (@25xcb41,25x6)
OIL ALERT
FLANGE NUT (M10) and O-RING
GOVERNOR SLIDER
FLANGE BOLT (M6X12)
4000W Generator
Crankshaft system assy.
APA Part No. Description
APG3012-D-01-JD CRANKSHAFT COMP
APG3012-D-02-JD SEMICIRCLE KEY
7
B
D

All-Power APGG4000 Specifications

General

Brand	All-Power
Model	APGG4000
Category	Portable Generator
Language	English
