Allegion Interflex IF-5735 User Manual

8 Connecting the Device

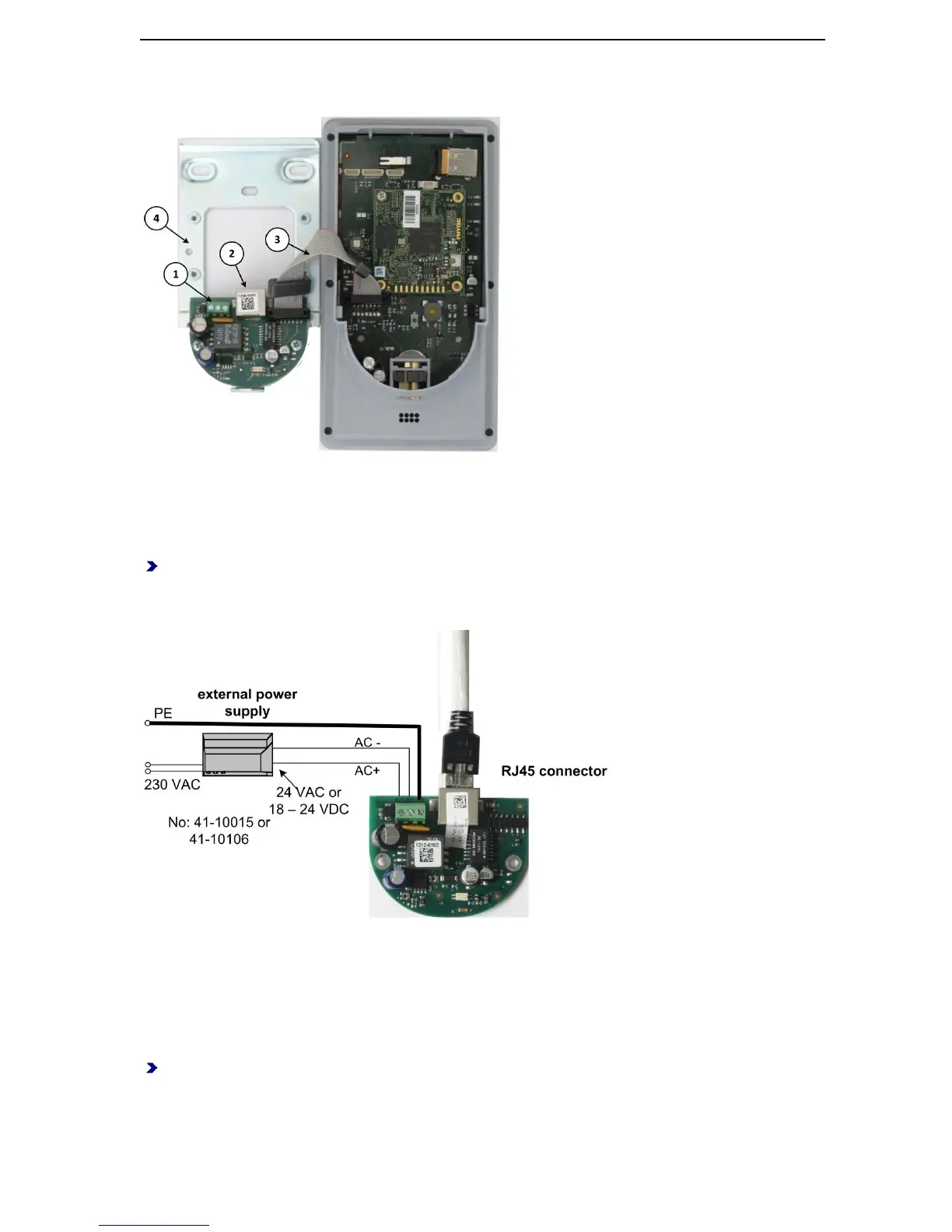

4.3 Reader electronics to PoE terminal board
1
3-pin terminal strip for connecting the external power supply
2
RJ45 socket for PoE and Ethernet data cable
3
Ribbon cable with suppression sleeves between reader electronics and PoE terminal board.
4
Back panel of housing
Connect the reader electronics to the PoE terminal board using the supplied ribbon cable as shown.
4.4 Power supply
Power can be supplied via:
 PoE device IEE 802.3 of power class 3 (up to 13 W). and RJ-45 cable
 18 to 24 VAC/ VDC power supply unit. The RJ45 cable is only required for data transfer.
To comply with the EMC limits, the IF-57xx master terminal needs to be grounded.
PoE
The functional grounding is established via the PoE device and the RJ45 cable.
Check whether the PoE device features functional grounding. Ground PoE devices without functional
grounding via existing soldering lugs or screw terminals.
