GL2800 MONO CONN PCB
C5402 2 5
PAGE:
TITLE:
DRG No: ISSUE: SHEET: OF
ISSUE BY DATE
FILE: C5402_3 CH1.Sch 10:15:52 7-Jun-2005
ALLEN&HEATH
Tel:
Fax:
PRINTED:
ABCDEFGH
a
b
c
d
e
CHK
BY
3
1 2
0

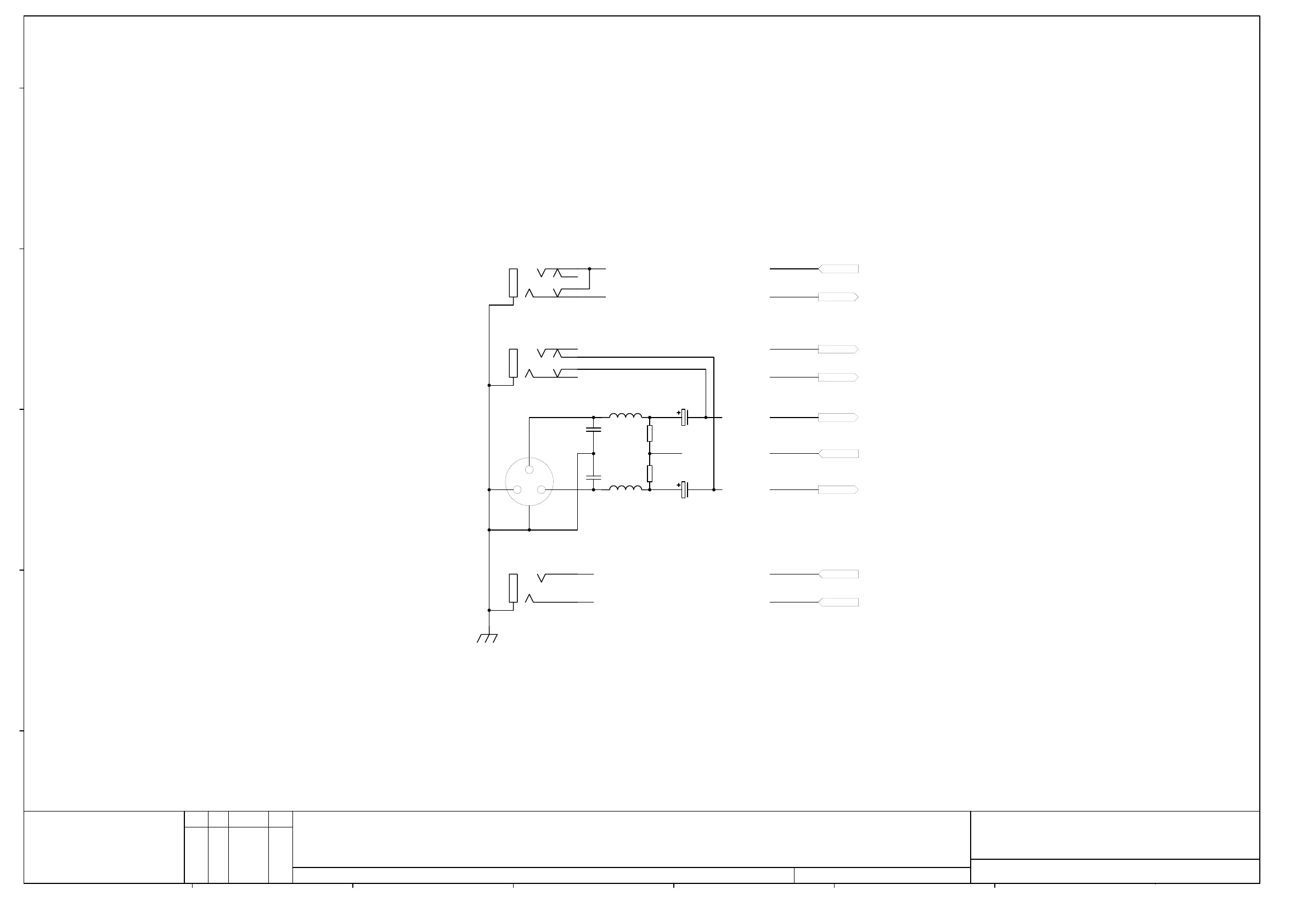

CN103
XLR NC3FAV20
T
R
CN102
JACK V3M
T
R
CN101
JACK V5M
C103
47/63
C102
47/63
R100
6K8 1%
R101
6K8 1%
LINE+
LINE-
MIC+
MIC-
+48V_SW
DIR_OUT+
DIR_OUT-
T
R
CN100
JACK V5M
INSEND
INSRET
L100
FB-TH
L101
FB-TH
C100
15P/DISK
C101
15P/DISK
MIC-
+48V_SW
MIC+
DIR_OUT+
DIR_OUT-
LINE-
LINE+
INSRET
INSEND
LINE+
LINE-
MIC+
MIC-
+48V_SW
DIR_OUT+
DIR_OUT-
INSEND
INSRET
A AAT XXX
CH1 CONNS
12-11-03
1 MG 24-8-04
2 MG XXX25/02/05
3 MG XXX29/04/05
003-228 iss.3
