gl4800_layout_1.doc Sheet 1 of 1

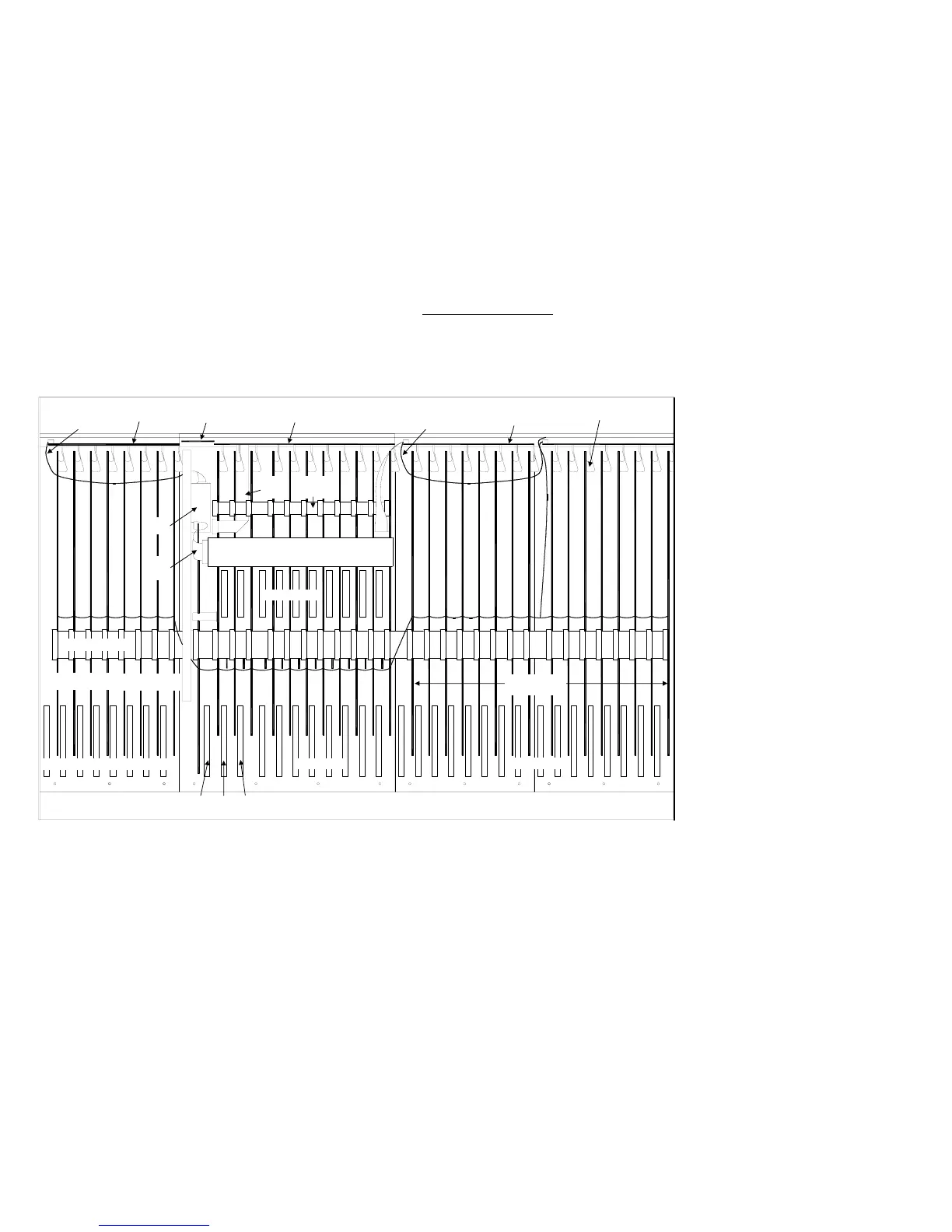

GL4800 Internal Layout
(GL4800-824B shown)
Product ............................GL4800-824m
........................................GL4800-832m
........................................GL4800-840m
........................................GL4800-848m
..............................................................
m = .......................................................
A .............................. All mono channels
B ............... 4 stereos to right of masters
C .............. 4 stereos on right of console
D .............. 8 stereos on right of console
Master PCB .............................. 002-165
Slave PCB ................................ 002-167
MPU PCB ................................. 002-198
Mono Input PCB ....................... 003-410
Stereo Input PCB ..................... 003-411
Group A PCB............................ 003-412
Group B PCB............................ 003-413
Group C PCB ........................... 003-414
Mono PCB ................................ 003-415
8M Connector PCB .................. 003-416
4SM Connector PCB ................ 003-417
4MS Connector PCB ................ 003-418
8S Connector PCB ................... 003-419
Master Connector PCB ............ 003-420
Meters 1-6 PCB........................ 003-421
Meters Master PCB .................. 003-422
Power Connector PCB ............. 003-423
Mix Amp Sub PCB.................... 003-452
SYS-LINK In PCB + Harness ... 003-462
12WAYFLEXCABLE
A
H2228
4SM CONNECTOR PCB
003-417
MASTER CONNECTOR PCB
003-420
POWER CONNECTOR PCB
003-423
MASTER
HARNESS
A
L2759
SLAVE PCB
002-167
MONO INPUT PCBs
003-410 x 4
MONO INPUT PCBs
003-410 x 16
STEREO INPUT PCBs
003-411 x 4
MAIN HARNESS AL2636
MONO INPUT FADERS
GROUP FADERS
MONO INPUT FADERS
RIGHT
FADER
LEFT
FADER
MONO
FADER
STEREO INPUT FADERS
8M CONNECTOR PCB
003-416
METERPOD
HARNESS
AL2100
16WAY RIGHT
HAND HARNESS
GL4800-824 AL2760
GL4800-832/840 AL2761
GL4800-848 AL2762
16WAY LEFT
HAND HARNESS
GL4800-824/832 AL2763
GL4800-840/848 AL2764
MPU PCB
002-167
AUXILIARY FADERS
MPU
HARNESS
AL2732
