ALLEN & HEATH iLive-T

ALLEN&HEATH iLive-T service manual AP7546 issue 8 Page - 12 - of 26
SERVICE ACCESS
PZ1

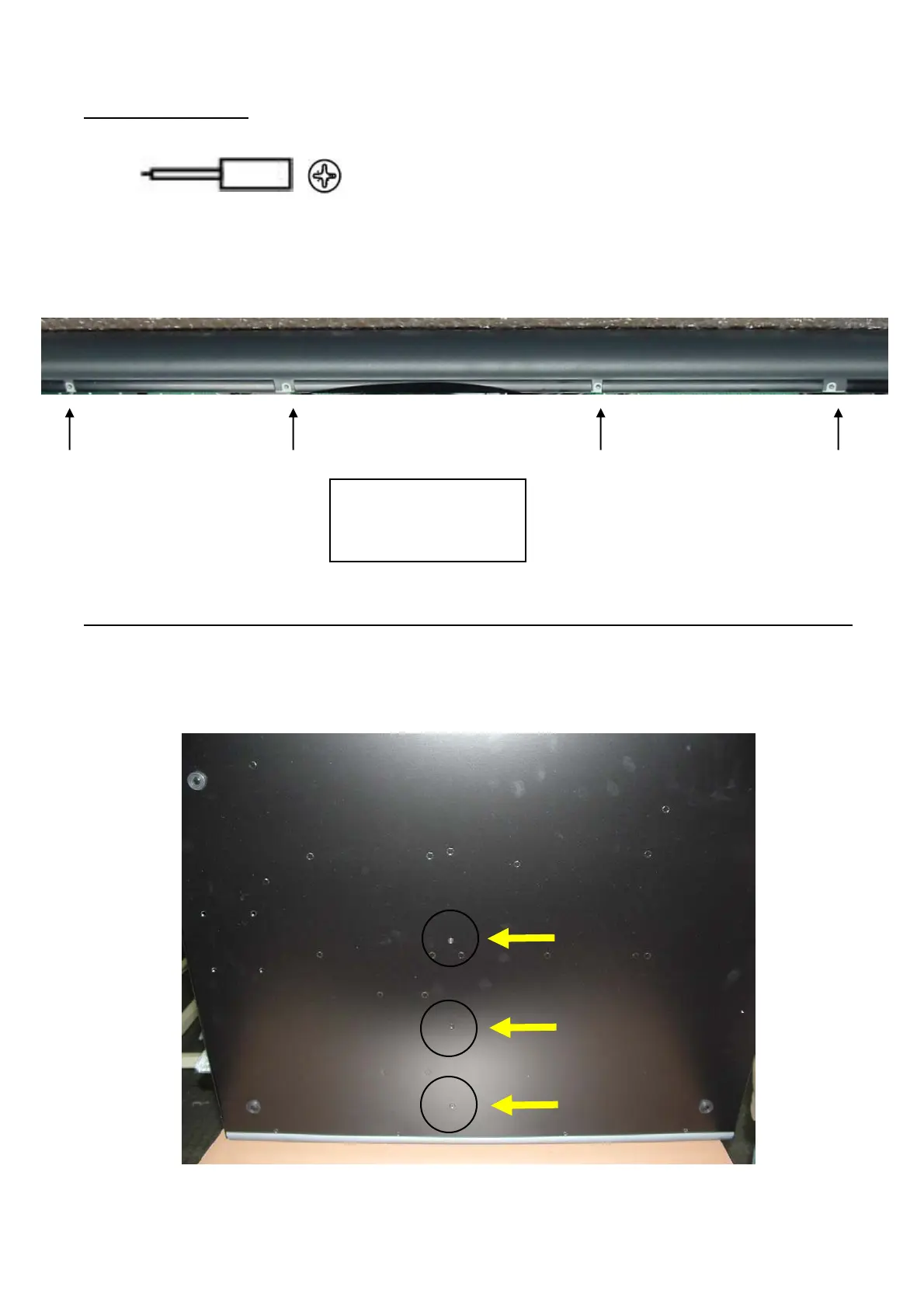

1. Remove screws from under arm rest.
2. Remove screws from base internal bracket.
Arm rest
T80 x4
T112 x5
