Channel Grp Sends screen
The Qu-24 includes two stereo Group mixes, and the
Qu-32, Qu-SB and Qu-Pac have four. Groups are not
available on the Qu-16.
Firmware V1.8 introduced Group Mix Mode. You can
choose each Group to be either an audio group or a
stereo mix.
Group mode is set for each Group using its master
Routing screen.

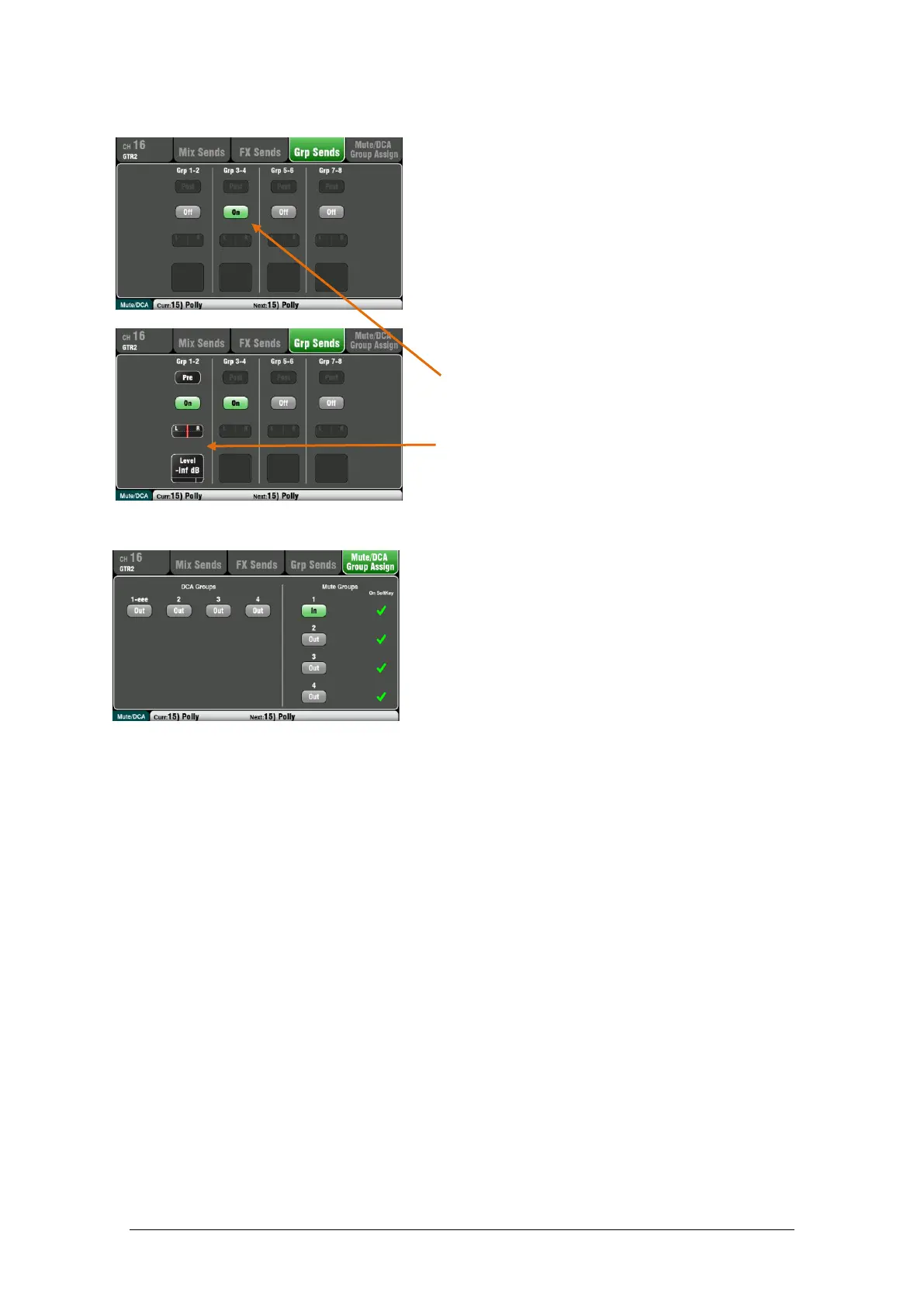

The channel Grp Sends screen lets you work with the
sends from one channel to all the groups. To work with
the sends from all channels to one group, use its
Master Strip Mix key and the fader strips.
The Grp Sends screen presents the controls available
according to currently selected mode:
Group - Stereo Audio Group with assignments. A
Group can be used as a separate output or as a sub-
group to LR and the Mixes.
Mix - Stereo Mix with send level, dedicated pan,
assignments and pre/post selection. Can be used to
expand the number of mixes available, for example to
add more monitor sends.
Channel Mute/DCA Group screen
All Qu models provide 4 Mute Groups and 4 DCA
groups for mute and level control.
This channel screen lets you assign one channel to
any combination of the Mute and DCA groups. To
work with the assignments of all channels to one
group, press the Fn key to open the Mute/DCA master
screens.

ALLEN & HEATH Qu-16 Specifications

General

Sample rate	48 kHz
Channels quantity	16 channels
Digital sound processing	- bit
Output impedance	75 Ω
Built-in display	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	82 W
XLR out	12
RJ-45 ports quantity	1
Headphone connectivity	6.3 mm
Number of microphone inputs	16
DJ mixer	-
Product color	Black
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	500 mm
Width	440 mm
Height	186 mm
Weight	10000 g
Package depth	680 mm
Package width	610 mm
Package height	350 mm
Package weight	13500 g
