ALLEN & HEATH Qu-16 Technical Notes

ALLEN&HEATH TB1403 - Qu-16 Phantom Power Hot Plugging Page 4/6

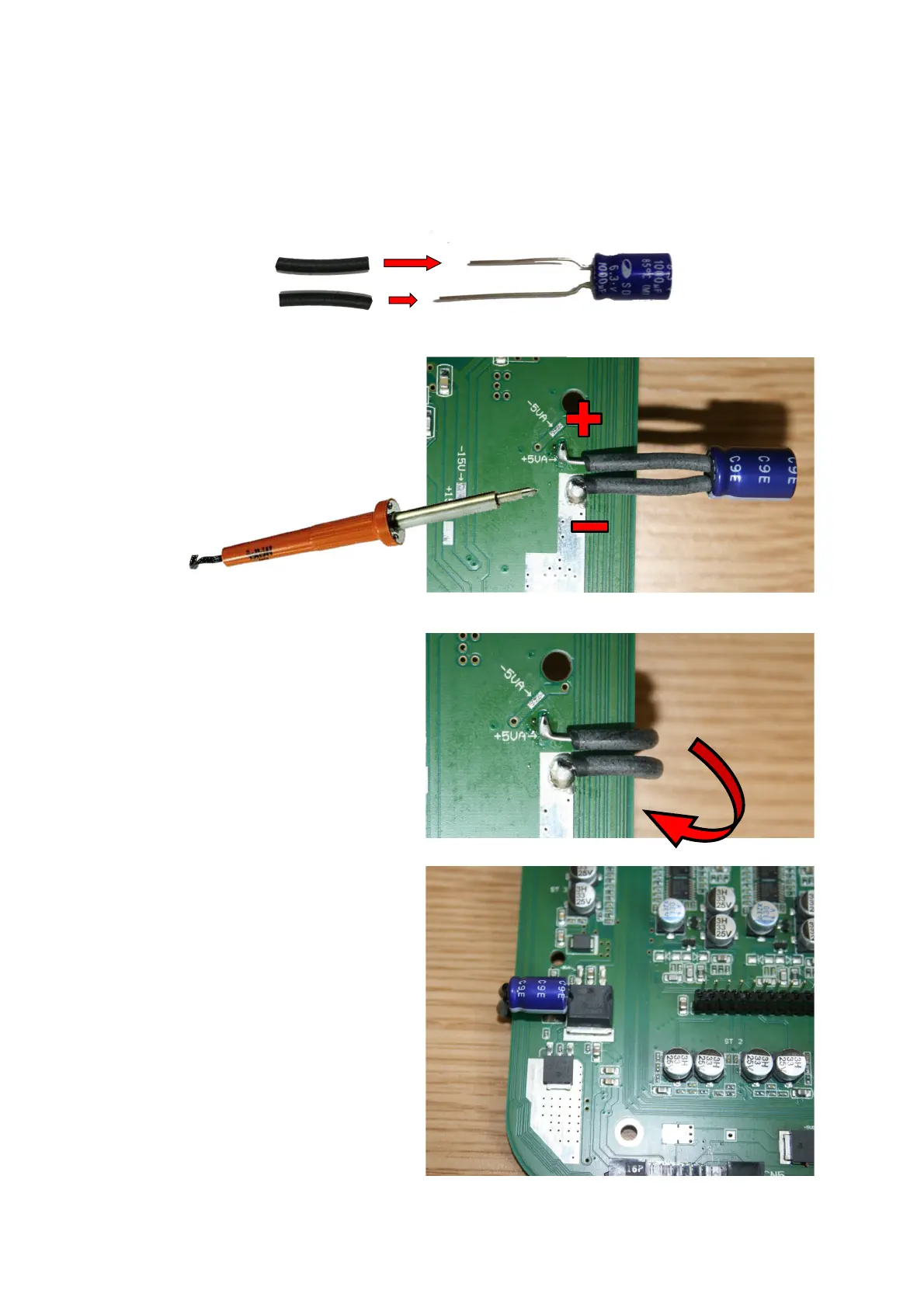

Solder Electrolytic 1000uF 6.3V capacitor to +5VA / GND
Place rubber sleeving on capacitor legs
Solder the positive (+) leg to +5VA
Solder the negative (—) leg of to GND
Bend the capacitor around the edge of the
PCB

ALLEN & HEATH Qu-16 Specifications

General

Sample rate	48 kHz
Channels quantity	16 channels
Digital sound processing	- bit
Output impedance	75 Ω
Built-in display	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	82 W
XLR out	12
RJ-45 ports quantity	1
Headphone connectivity	6.3 mm
Number of microphone inputs	16
DJ mixer	-
Product color	Black
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	500 mm
Width	440 mm
Height	186 mm
Weight	10000 g
Package depth	680 mm
Package width	610 mm
Package height	350 mm
Package weight	13500 g
