ALLEN & HEATH Qu-16 Technical Notes

ALLEN&HEATH TB1403 - Qu-16 Phantom Power Hot Plugging Page 5/6

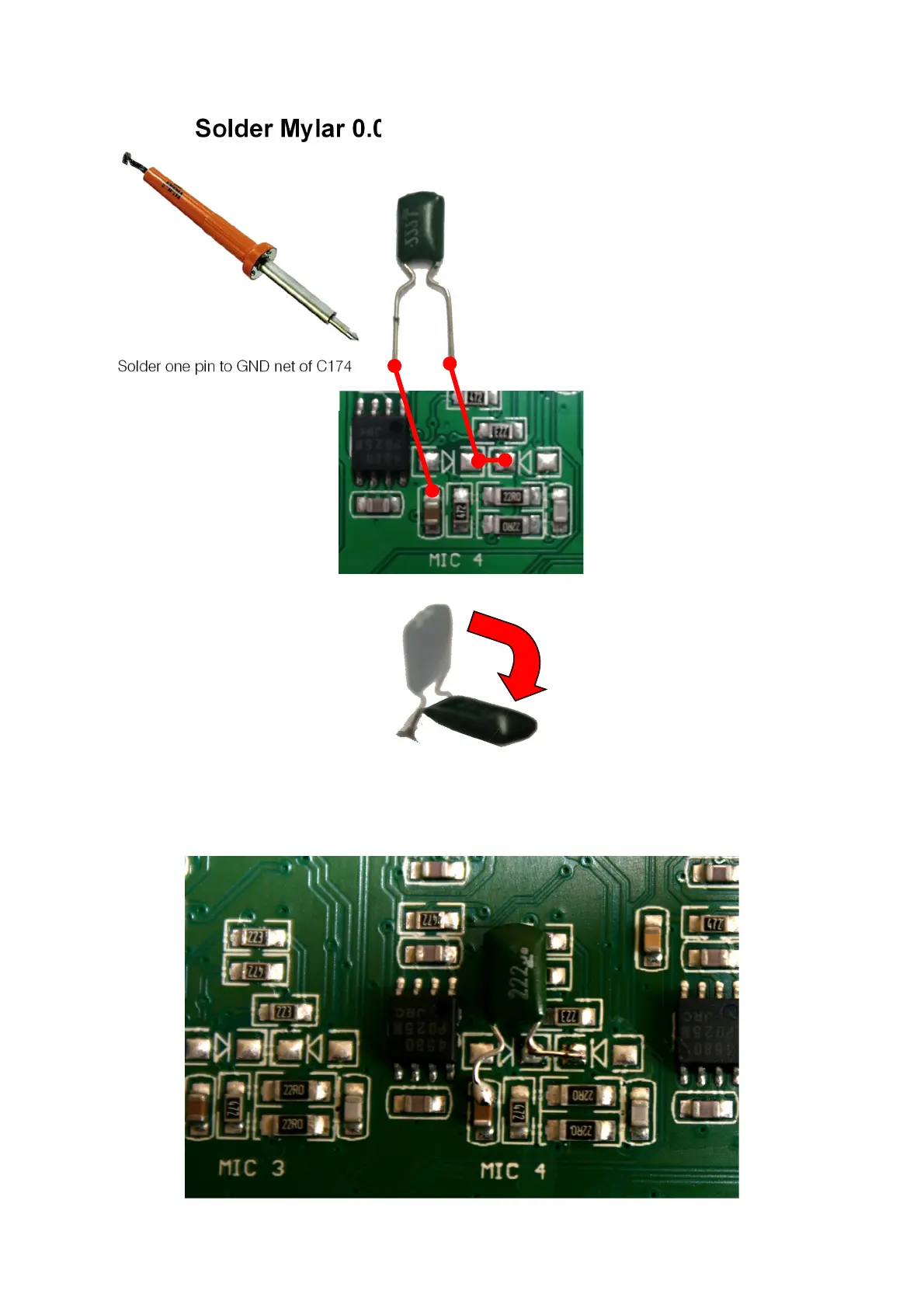

Solder Mylar 0.022uF 100V capacitor to MIC 4
Solder one pin to the cathode pads of D2/D3
Solder one pin to GND net of C174
Bend Capacitor Flat
