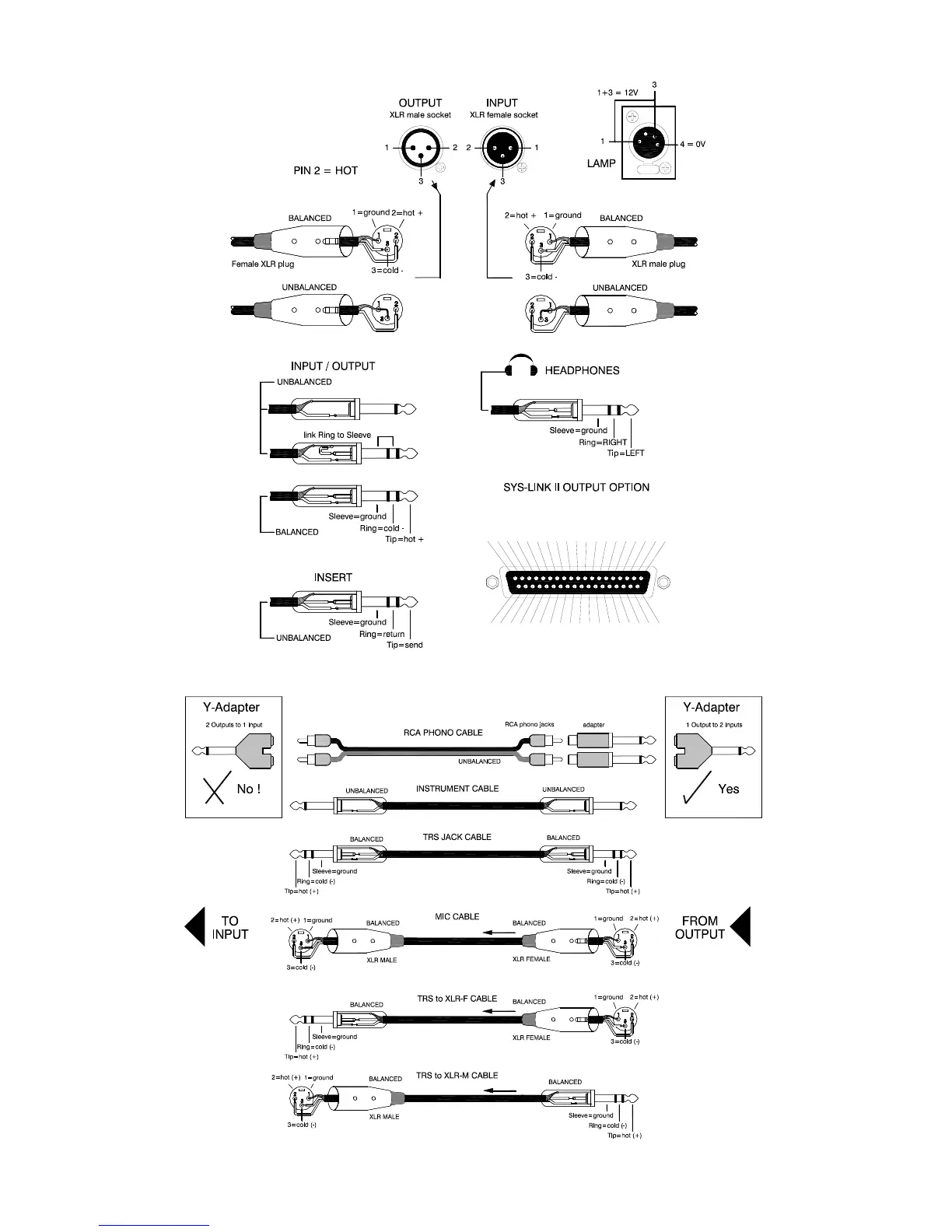

ALLEN & HEATH W31222 - Connection Pinouts and Cables

10 WZ
3
16:2 and 12:2 User Guide
13 GRP 4+ 12 AUX 1+ 11 AUX 2+ 10 AUX 3+ 9 AUX 4+ 8 AUX 5+ 7 AUX 6+ 6 PFL+ 5 AFL+ 4 nc 3 PFL DC 2 AFL DC 1 0V (PAFL)
GRP 4- 32
AUX 1- 31
AUX 2- 30
AUX 3- 29
AUX 4- 28
AUX 5- 27
AUX 6- 26
PFL- 25
AFL- 24
nc 23
nc 22
nc 21
nc 20
14 GRP 3+ 15 GRP 2+ 16 GRP 1+ 17 R+ 18 L+ 19 0V (CHS)
GRP 3- 33 GRP 2- 34 GRP 1- 35
R- 36
L- 37
