30 XONE:V6 User Guide
Access to the option jumpers
Internal Option Jumpers
The XONE:V6 provides several user accessible internal jumper options. These are for
specialist application or user preference and should not normally be needed. The factory
default settings should satisfy most applications. The jumpers are plug-on and can be
reconfigured quickly. However, it is necessary to remove the console cover to access the
internal circuit assemblies. This requires that the console be unplugged and removed from its
installation furniture. All the jumpers are accessible without removal of any internal assemblies.
Before starting Unplug the power unit. Unplug all the cables. Remove the console from
its rack or furniture. Ensure you have a suitably sized, clean work space with adequate
lighting. Ensure you have a T10 Torx screwdriver to remove the cover screws.
Precautions Take care not to damage the panels or internal assemblies during the
process. Ensure the jumpers are pressed fully into position and log your new settings before
refitting the cover.

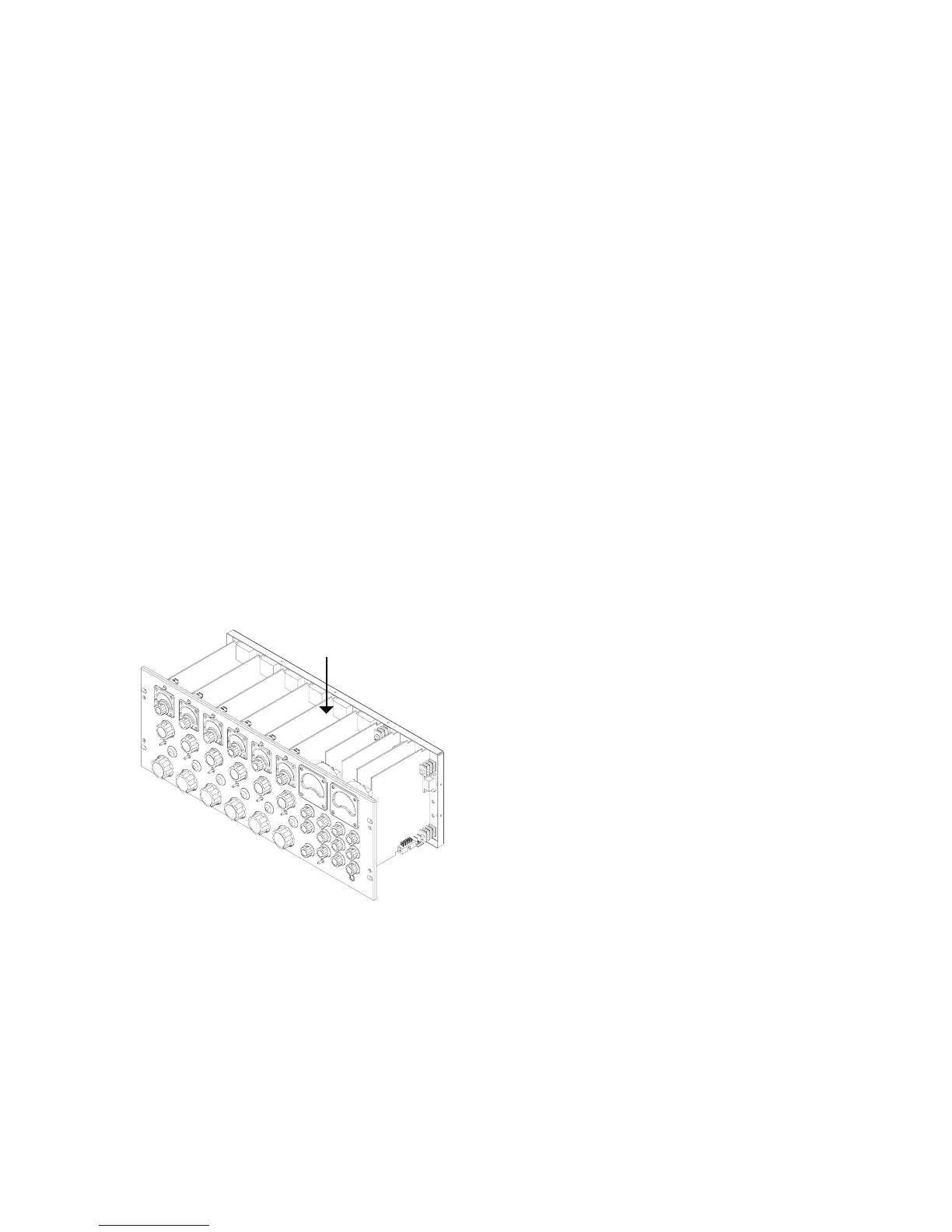

Removing the cover Use a T10 Torx
screwdriver to remove the 4x front plate to cover
fixing screws (M3x6mm). Also remove the 4x
side, 3x top and 3x underside screws
(M3x4mm). Carefully slide the cover back over
the rear connector panel to reveal the circuit
assemblies.
