ALLEN&HEATH ZED 14 service manual AP7176 Issue 4 Page - 4 - of 11
DEVELOPMENT CHANGES

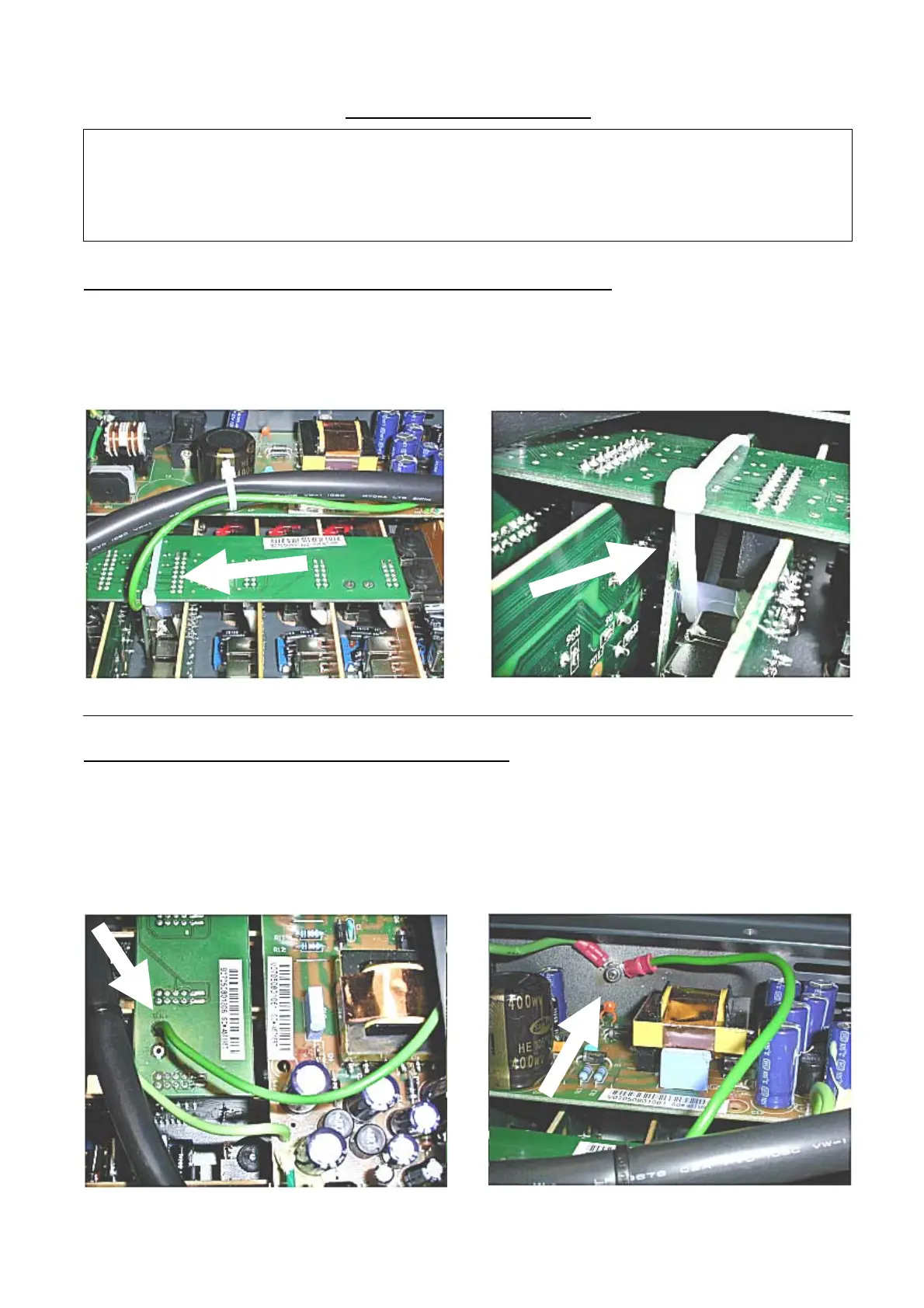

SECURE DISTRIBUTION PCB WITH CABLE TIE [RECN1501]
Implemented from serial number Z142X 079304
Secure 003-658 PCB ASSY ZED 14 DISTRIBUTION with AK0332 CABLE TIE 2.5X200MM
around the pillar mounting the USB to Stereo 13/14.
Route the cable tie behind pillar and TC wire. Mount Distribution and secure with cable tie.
USB NOISE WITH SOME LAPTOPS [RECN1503]
Implemented from serial number Z142X 079304
Additional grounding.
Fit 15cm AH0025 *WIRE 16/0.2 PVC GREEN TRI-RATED plus AL3449 CRIMP TERM RING
4BA INSUL, from 003-658 PCB ASSY ZED 14 DISTRIBUTION AG6749 (P3), to internal
chassis earth stud.
NOTE: These changes have been implemented at the factory as part of our ongoing
development policy.
They are not critical to the basic function of the unit.
It is for the owner / service engineer to decide to update a unit with development changes.
