ALLEN & HEATH ZED 428 User Guide

Allen & Heath 16 ZED-4 BUS User Guide

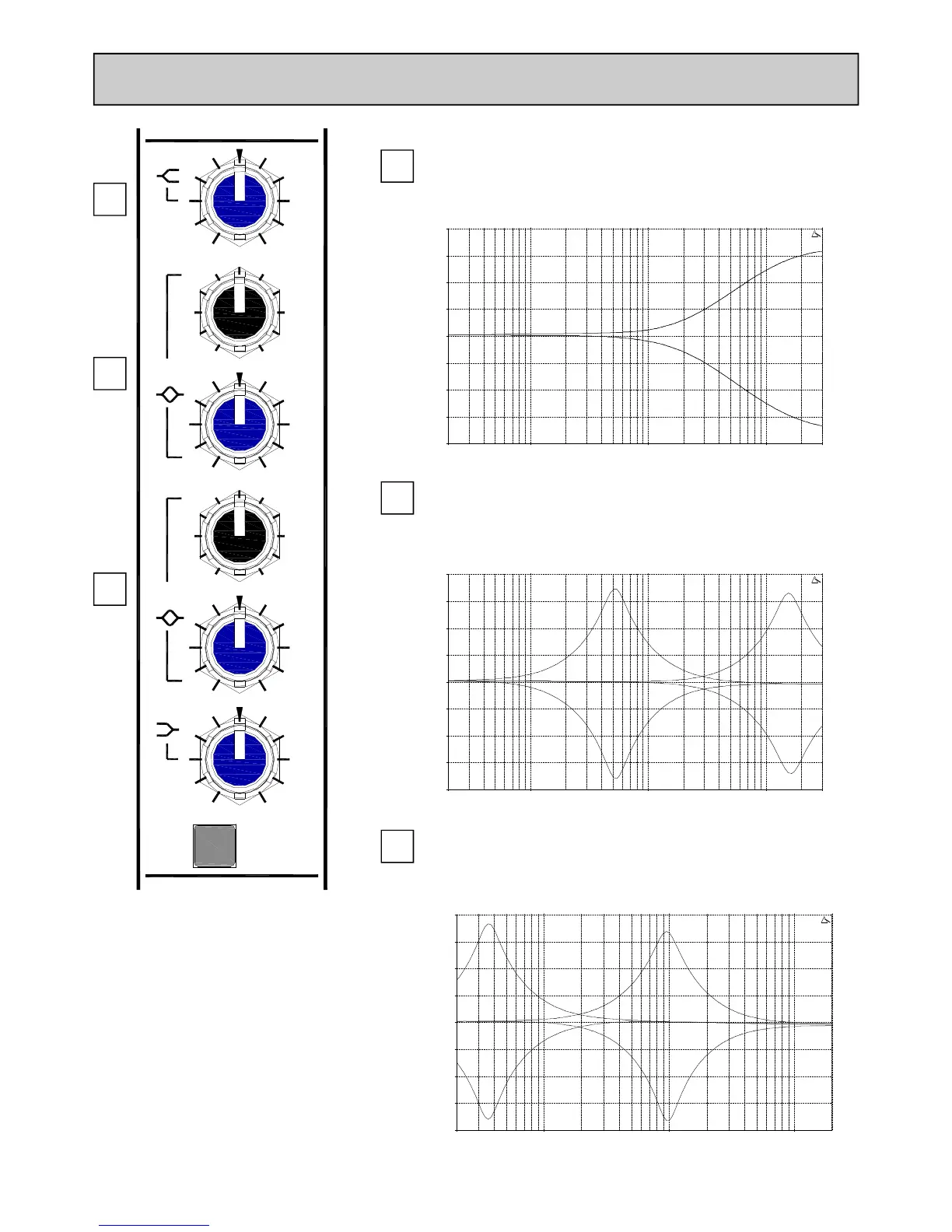

MONO INPUT CHANNEL
7
8
HMF EQ
The HMF (High Mid Frequency) equaliser affects the upper middle
of the audible frequency range. The frequency graduations on the
sweep control are the centre frequencies of the EQ.
HF EQ
The HF (High Frequency) equaliser affects the frequency response
of the higher audible frequencies. The corner frequency of 12kHz is
around 3dB from the maximum cut or boost of the circuit.
6
-15
LF
-15
+15
+15
180
45
LM
35Hz
70
-15
400
1k
250
+15
3k
HM
700
500Hz
-15
1k
6k
15k
4k
+15
HF
EQ IN
12k
80Hz
7
8
6
20.00 Hz 100.00 1000.00 10000.00 30000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
20.00 Hz 100.00 1000.00 10000.00 30000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
LMF EQ
The LMF (Lower Mid Frequency) equaliser affects the lower middle
of the audible frequency range.
20.00 Hz 100.00 1000.00 10000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
