POINT I/O 24V DC Expansion Power Supply 9
Publication 1734-IN058C-EN-P - October 2015
3. Slide the power supply down allowing the interlocking side pieces to engage the
adjacent modules (both left and right sides).
4. Press firmly to seat the power supply on the DIN rail.
The power supply locking mechanism snaps into place.
5. Reinsert the module into the base next to the expansion power supply.
Wire the Power Supply
WARNING: If you connect or disconnect wiring while the field-side power is
on, an electrical arc can occur. This could cause an explosion in hazardous
location installations. Be sure that power is removed or the area is
nonhazardous before proceeding.
ATTENTION: Use the 1734-EP24DC expansion power supply only with
adapter class products.
ATTENTION: Use the 1734-EP24DC expansion power supply only with 1734
POINT I/O adapters, such as the 1734-ADN DeviceNet adapter.

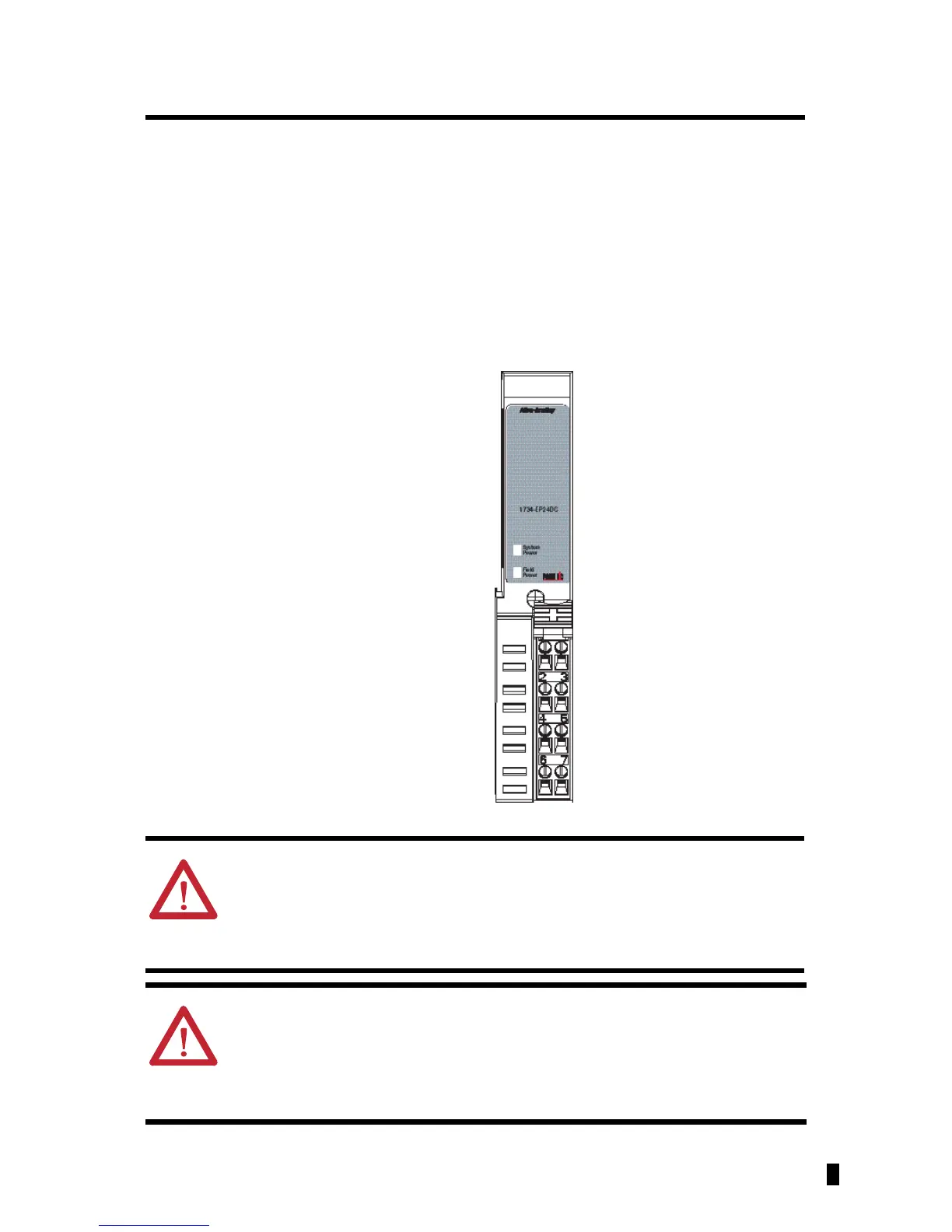

NC = No Connection
CHAS GND = Chassis Ground
C = Common
V = Supply
41970
NC
C
V
V
NC
CHAS GNDCHAS GND
C
To Next Page
