14 Rockwell Automation Publication 22C-UM001J-EN-E - January 2017

Chapter 1 Installation/Wiring

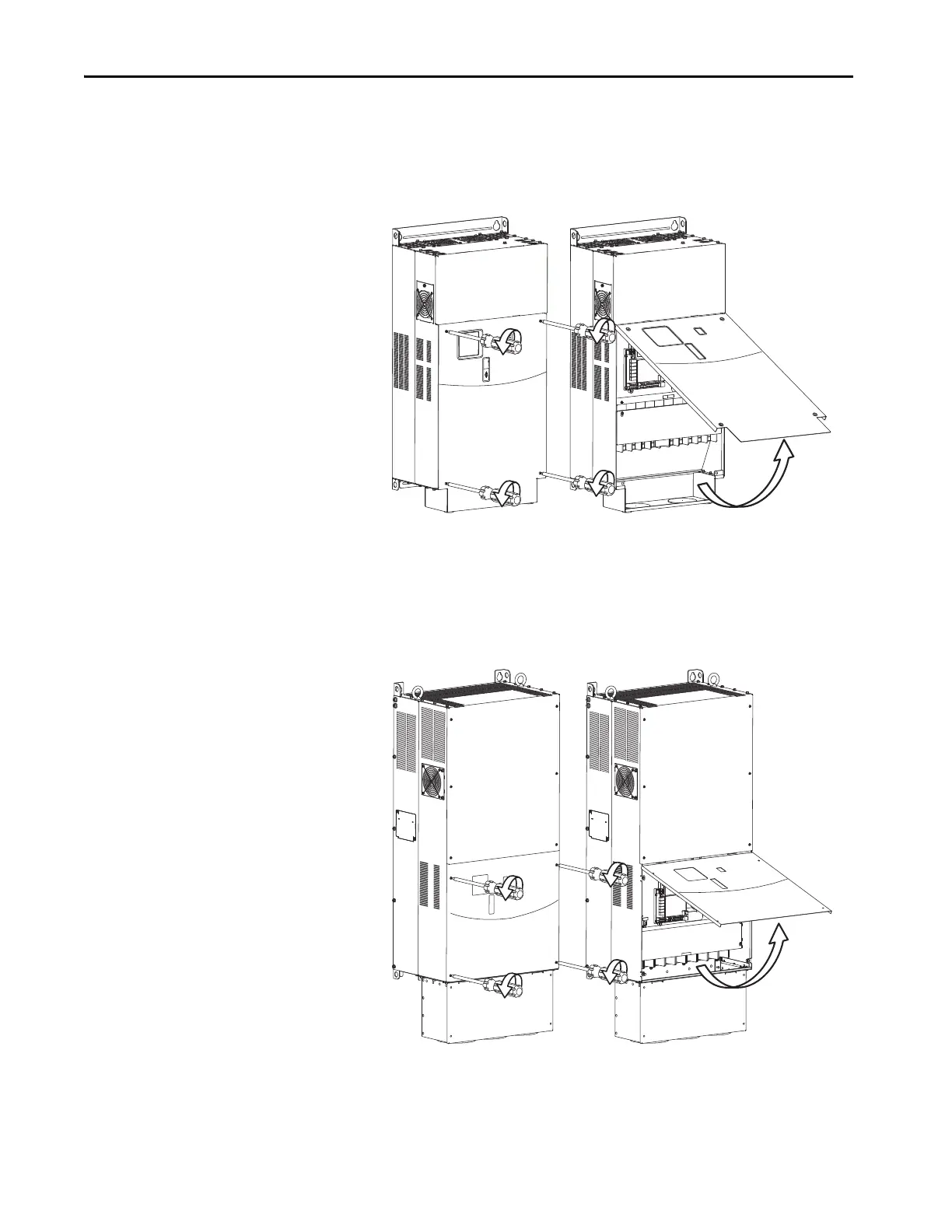

Frame G Drives

1. 1. Loosen the four captive cover screws.

2. Pull the bottom of the cover out and up to release.

Frame H Drives

1. Loosen the four captive cover screws.

2. Pull the bottom of the cover out and up to release.
