12 Rockwell Automation Publication 22C-UM001J-EN-E - January 2017

Chapter 1 Installation/Wiring

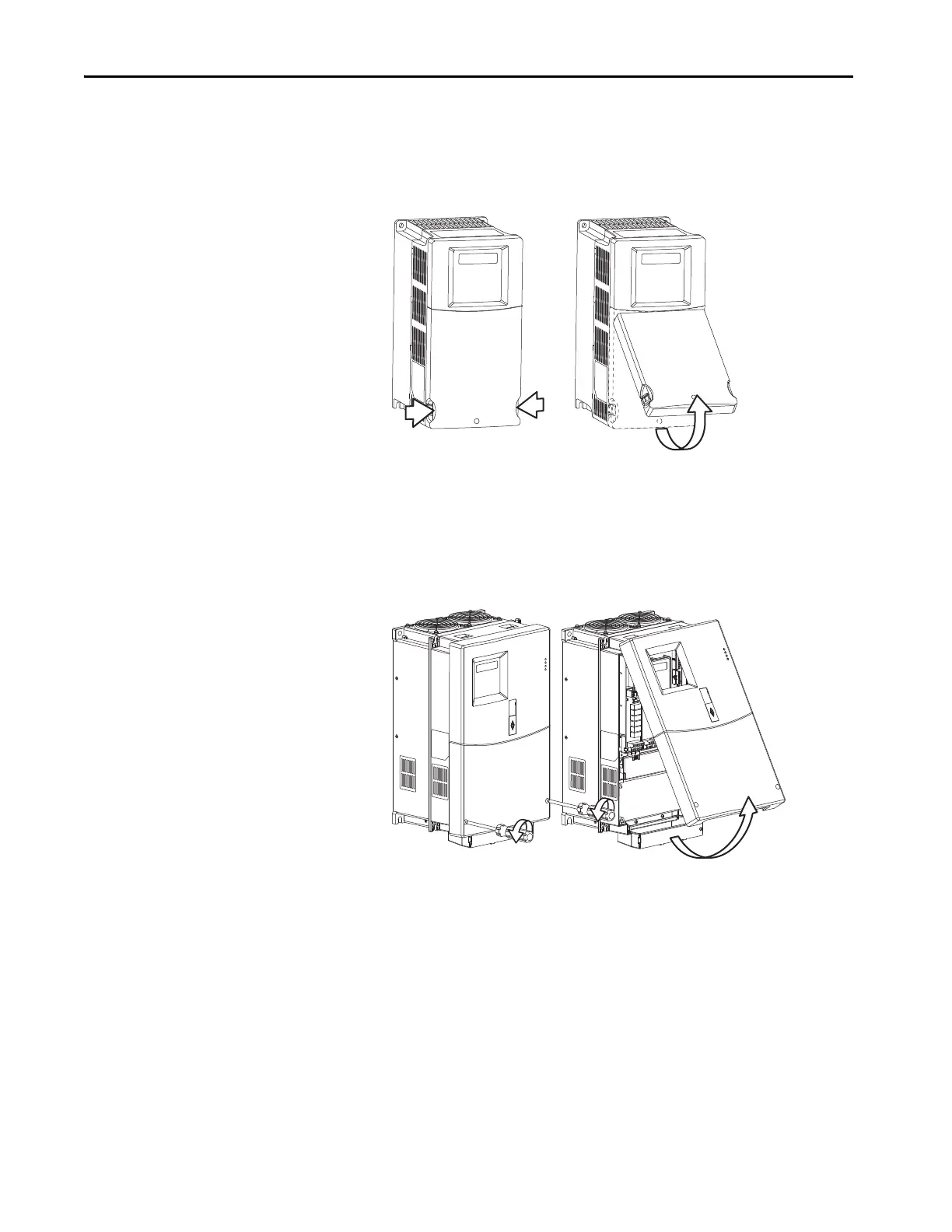

Opening the Cover

Frame C Drives

1. Press and hold in the tabs on each side of the cover.

2. Pull the cover out and up to release.

Frame D Drives

1. Loosen the two captive cover screws.

2. Pull the bottom of the cover out and up to release.
