156 Rockwell Automation Publication 22C-UM001J-EN-E - January 2017

Appendix C RJ45 DSI Splitter Cable

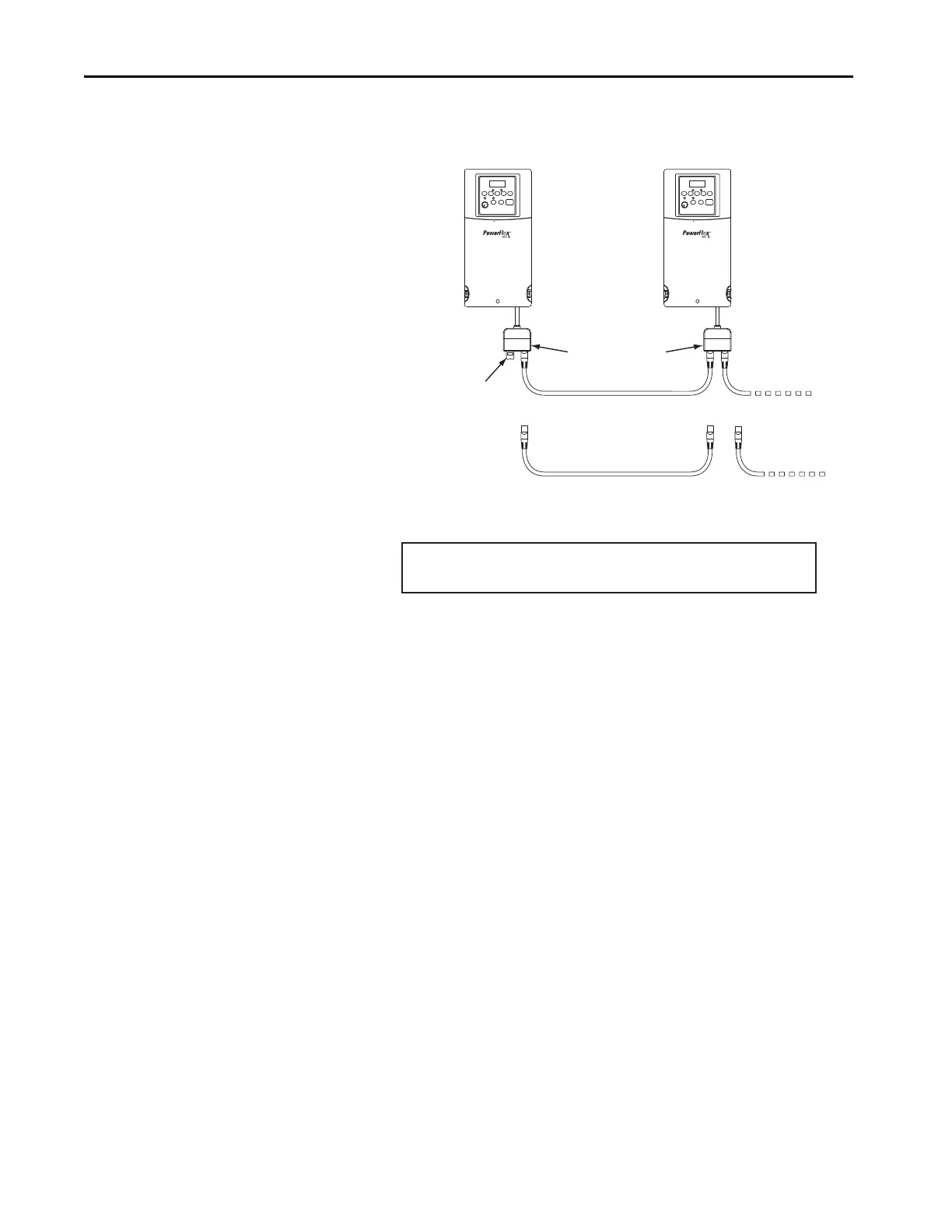

Figure 36 - Connecting an RS-485 Network

AK-U0-RJ45-TR1

Terminating Resistor

(end of network)

AK-U0-RJ45-TB2P

Two-position

Terminal Block

DSI Drives

Customer supplied RJ45 male-to-RJ45 male

cables with wires connected at pins 4 and 5 only.

Both the Master (M) and Slave (S) ports on the RJ45 Splitter

Cable operate as standard RS-485 ports in this configuration.
