Rockwell Automation Publication 22C-UM001J-EN-E - January 2017 43
Installation/Wiring Chapter 1

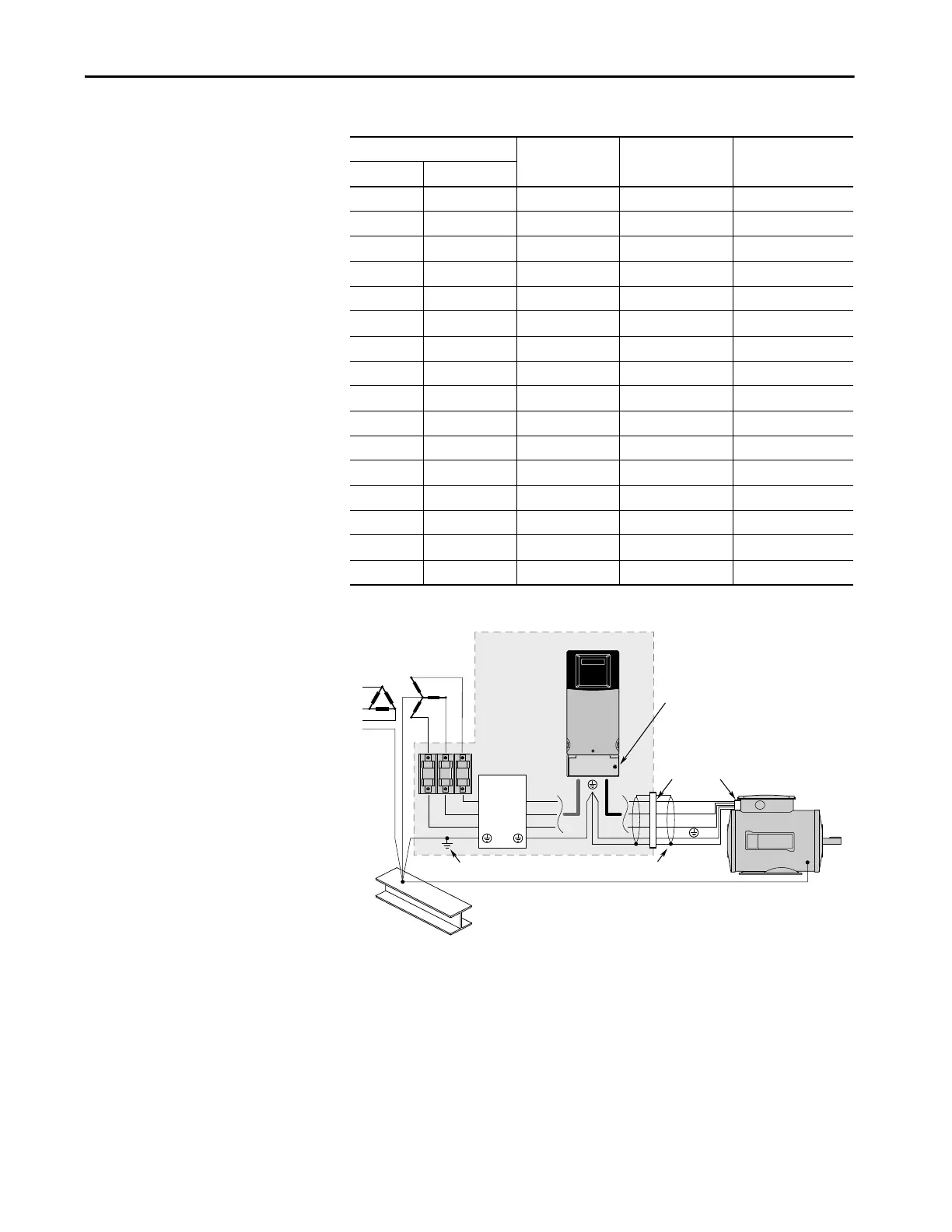

Figure 15 - Connections and Grounding
(1) Shielded Enclosure required for 200-240V AC 11-22 kW (15-30 HP) PowerFlex 400 drives.
7.5 (10) 22C-D017N103 22-RF018-CS 10 No
11 (15) 22C-D022N103 22-RF026-CS 10 No
15 (20) 22C-D030N103 22-RFD036 100 No
18.5 (25) 22C-D038A103 22-RFD050 150 No
22 (30) 22C-D045A103 22-RFD050 150 No
30 (40) 22C-D060A103 22-RFD070 50 No
37 (50) 22C-D072A103 22-RFD100 50 No
45 (60) 22C-D088A103 22-RFD100 50 No
55 (75) 22C-D105A103 22-RFD150 150 No
75 (100) 22C-D142A103 22-RFD180 50 No
90 (125) 22C-D170A103 22-RFD208 50 No
110 (150) 22C-D208A103 22-RFD208 50 No
132 (200) 22C-D260A103 22-RFD323 50 Required
160 (250) 22C-D310A103 22-RFD480 50 Required
200 (300) 22C-D370A103 22-RFD480 50 Required
250 (350) 22C-D460A103 22-RFD480 50 Required
Table 13 - PowerFlex 400 – FCC Part 15 Subpart B Compliance
PowerFlex 400 Drive Required Filter Restrict Motor
Cable to (Meters)
Install Drive and
Filter in Enclosure
kW (HP) Cat No.
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
EMI Fittings and Metal Conduit
IP 30/NEMA 1/UL Type 1
Option Kit (Frame C Drives Only)
Shielded Enclosure
(1)
Building Structure Steel
Enclosure Ground Connection
EMI Filter
L1'
L2'
L3'
L1
L2
L3
Shielded Motor Cable
To Next Page
