10 Wiring and Grounding Guidelines for PanelView Plus Terminals

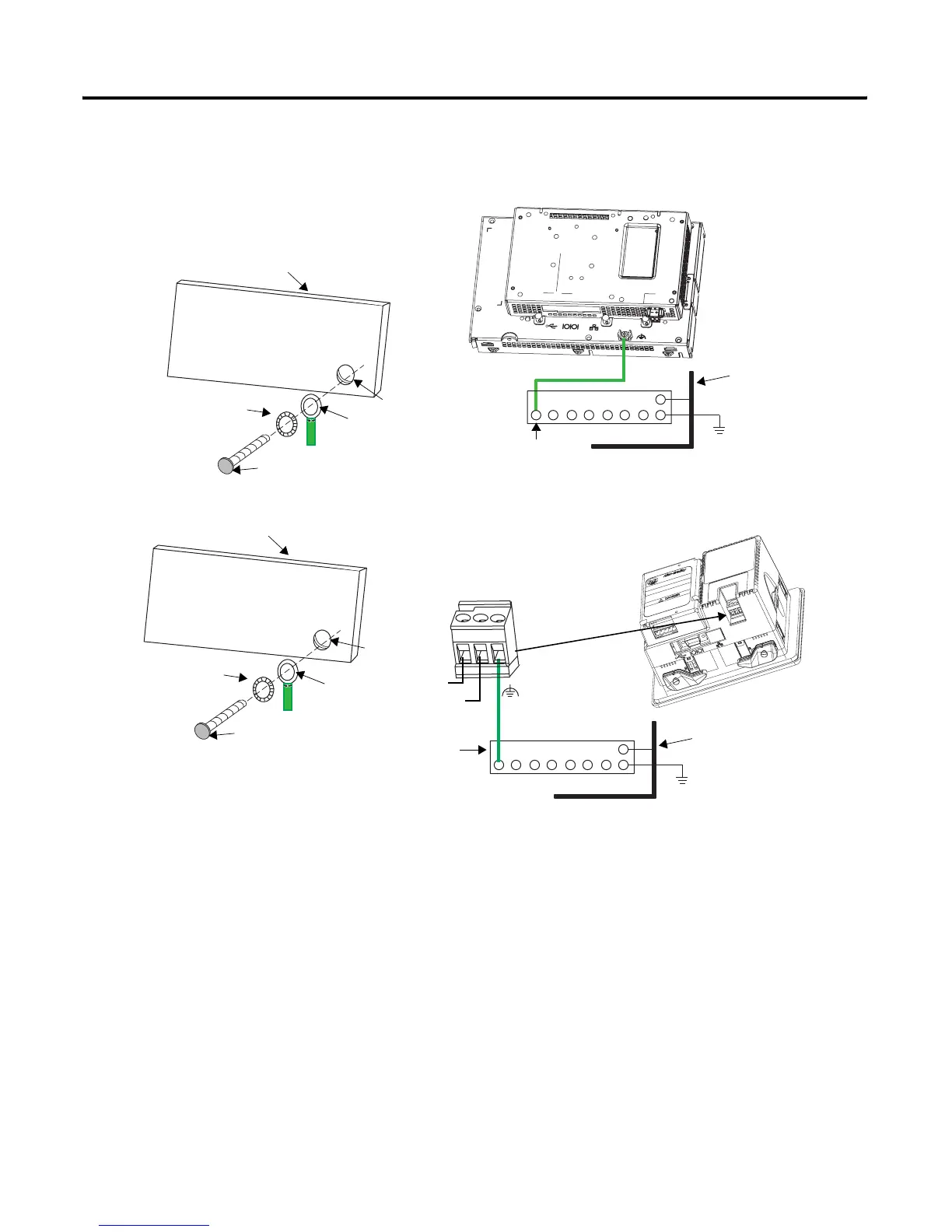

Figure 2 - Functional Earth Connection for 700 to 1500 Nonisolated DC Terminals
Figure 3 - Functional Earth Connection for 400 and 600 DC Terminals
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
Ground Bus
Ground Bus
Functional Earth/Ground to Ground Bus
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
DC +
DC -
Functional Earth
Ground Bus
Ground Bus

Allen-Bradley 2711P Specifications

General

Series	PanelView Plus
Touchscreen	Yes
Operating System	Windows CE
Power Supply	24V DC
Display Type	TFT LCD
Touch Screen Type	Resistive
Application Memory	256 MB
Memory Type	SDRAM
Communication Ports	RS-232, USB
Ethernet	10/100Base-T
Operating Temperature	0 to 50 °C
Storage Temperature	70 °C
Humidity	5 to 95% non-condensing
Enclosure Rating	NEMA 4X
