Rockwell Automation Publication 2711P-TD001D-EN-P - February 2011
14 Wiring and Grounding Guidelines for PanelView Plus Terminals
AC-to-DC Power Supply to Power Isolated DC Terminals
Powering a PanelView Plus terminal with an isolated DC logic module from an
AC power source requires an AC-to-DC power supply with a SELV output, or
the 2711P-RSACDIN power supply.
Catalog number 2711P-RSACDIN is a UL accepted power supply for the
PanelView Plus terminals. The power supply converts AC power to DC power,
provides a SELV output, and has electrical input ratings of 85…264V AC
(47 …63 Hz).
These are the electrical output ratings of the power supply:
• 24V DC nominal
• 3 A maximum
For more information on this power supply, refer to the AC Power Supply
Installation Instructions, publication 2711P-IN005
.

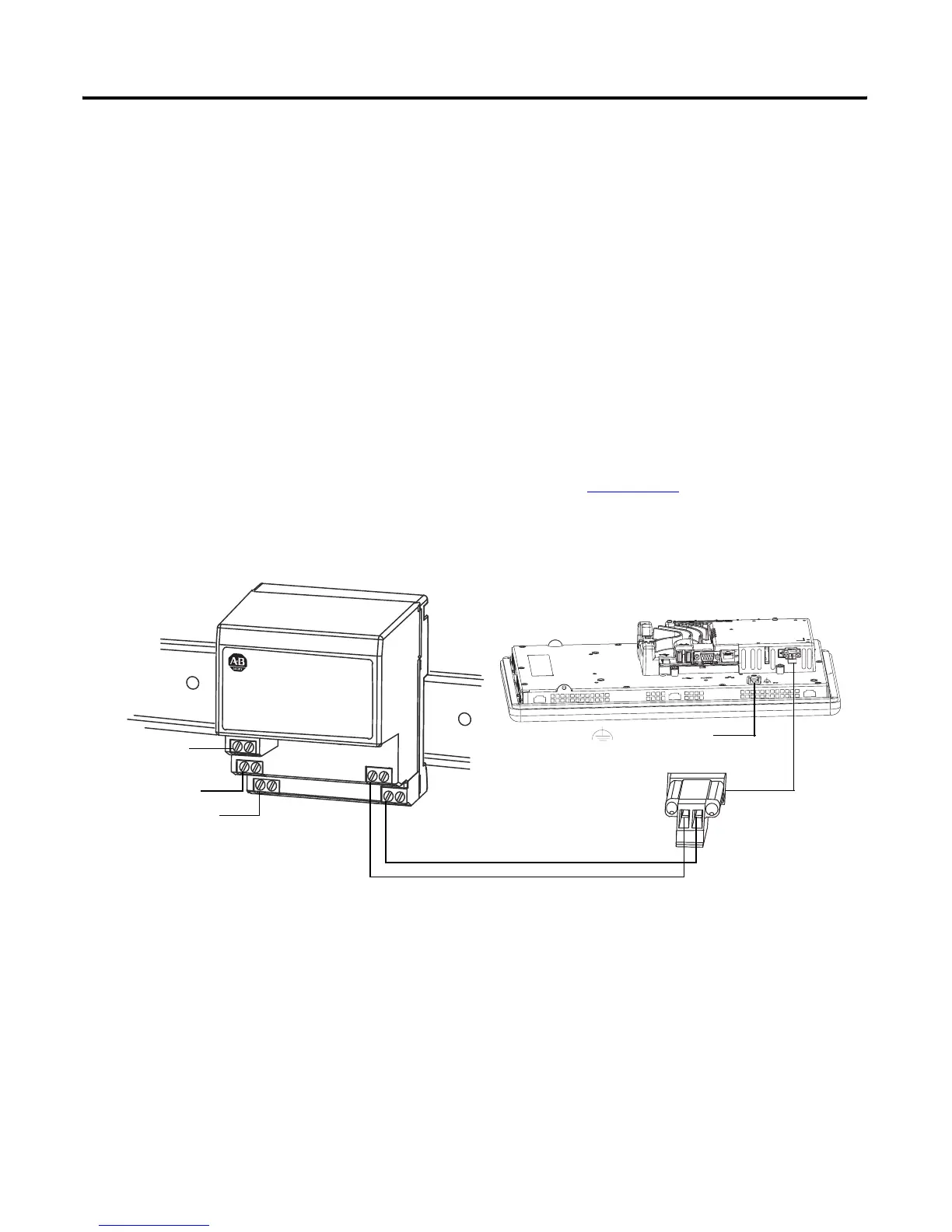

Figure 6 - Power Supply for Isolated DC Terminals
DC+
DC +
120/230V AC L1
120/230V AC L2/N
To Ground Bus
Protective Earth
Cat. No. 2711P-RSACDIN, AC to DC Power Supply
DC -
DC -
Earth/Ground GND to Ground Bus
PanelView Plus 6 Terminal (700 to 1500) Shown
PanelView Plus 700 to 1500 Terminals Look Similar
2-position Terminal Block
–
+
