Allen-Bradley 5069 CompactLogix Reference Manual

Equipment Phase Instructions
Chapter 7
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 425
Available Languages

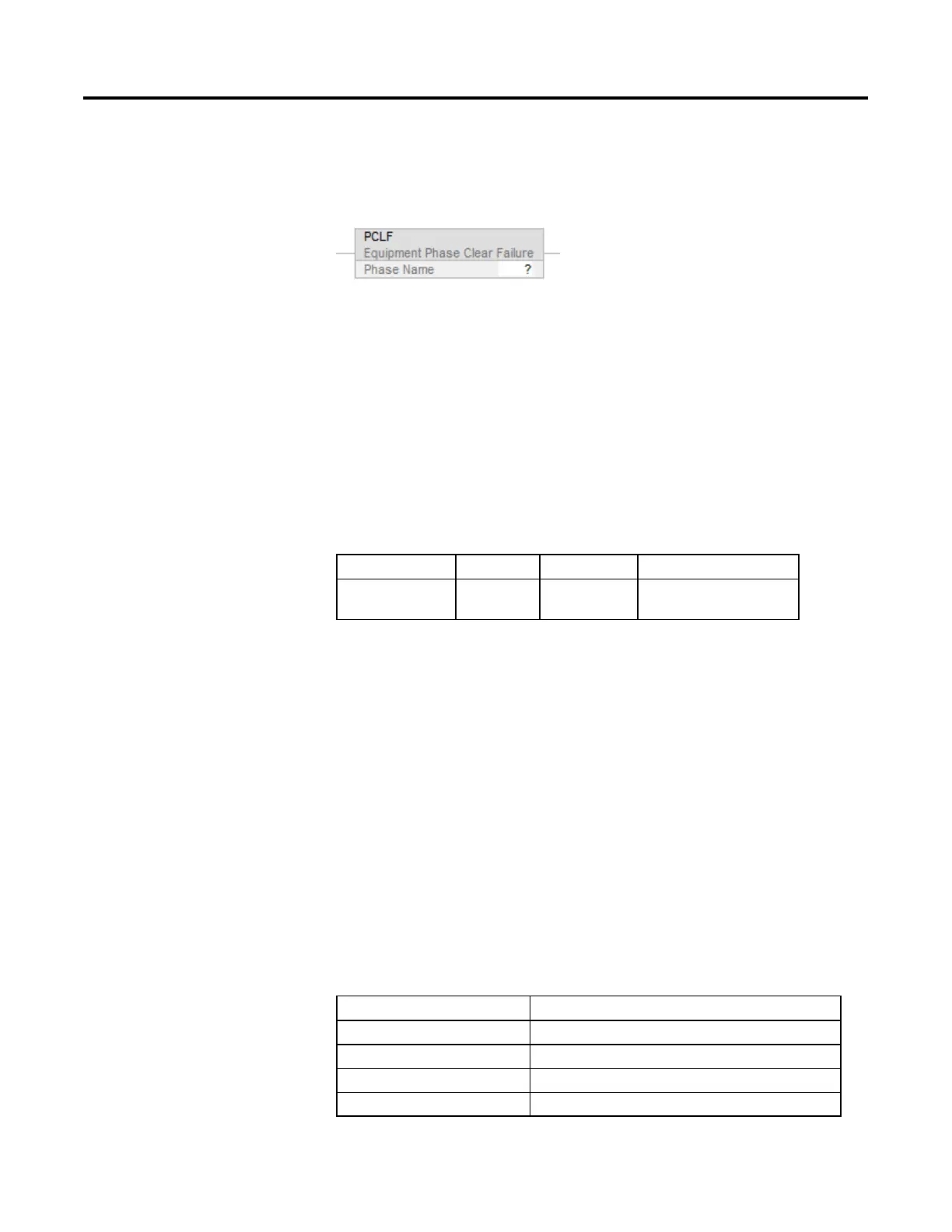

Ladder Diagram
Function Block
This instruction is not available in function block.
Structured Text
PCLF(Phase_Name);
Operands
Ladder Diagram
Operand Type Format Description
Phase Name PHASE Name of the
equipment phase
Equipment phase whose failure
code to clear.
Structured Text
The operands are the same as those for the Ladder Diagram PCLF instruction.
Affects Math Status Flags
No
Major/Minor Faults
None. See Index Through Arrays below for operand-related faults.
Execution
For Structured Text, EnableIn is always true during normal scan. Therefore, if the
instruction is in the control path activated by the logic, it executes.
Condition/State Action Taken
Prescan No action taken.
Postscan No action taken.
EnableIn is false No action taken.
EnableIn is true The instruction executes as described above.

Allen-Bradley 5069 CompactLogix Specifications

General

Model	5069 CompactLogix
Power Supply	24V DC
Programming Software	Studio 5000 Logix Designer
Communication Ports	EtherNet/IP, USB
Programming Language	Ladder Logic, Structured Text, Function Block Diagram, Sequential Function Chart
Dimensions	Varies by model
Weight	Varies by model
