Allen-Bradley 5069 CompactLogix Reference Manual

Process Control Instructions
Chapter 1
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 51
This information applies to the CompactLogix 5370, ControlLogix 5570,
Compact GuardLogix 5370, GuardLogix 5570, Compact GuardLogix 5380,
CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix
5580 controllers.
The DEDT instruction performs a delay of a single input. You select the amount
of deadtime delay.
Available Languages
Ladder Diagram
This instruction is not available in ladder diagram logic.
Function Block
Structured Text
DEDT(DEDT_tag,storage);
Operands
Structured Text
Operand Type Format Description
DEDT tag DEADTIME structure DEDT structure
storage REAL array deadtime buffer
See Structured Text Syntax for more information on the syntax of expressions
within structured text.

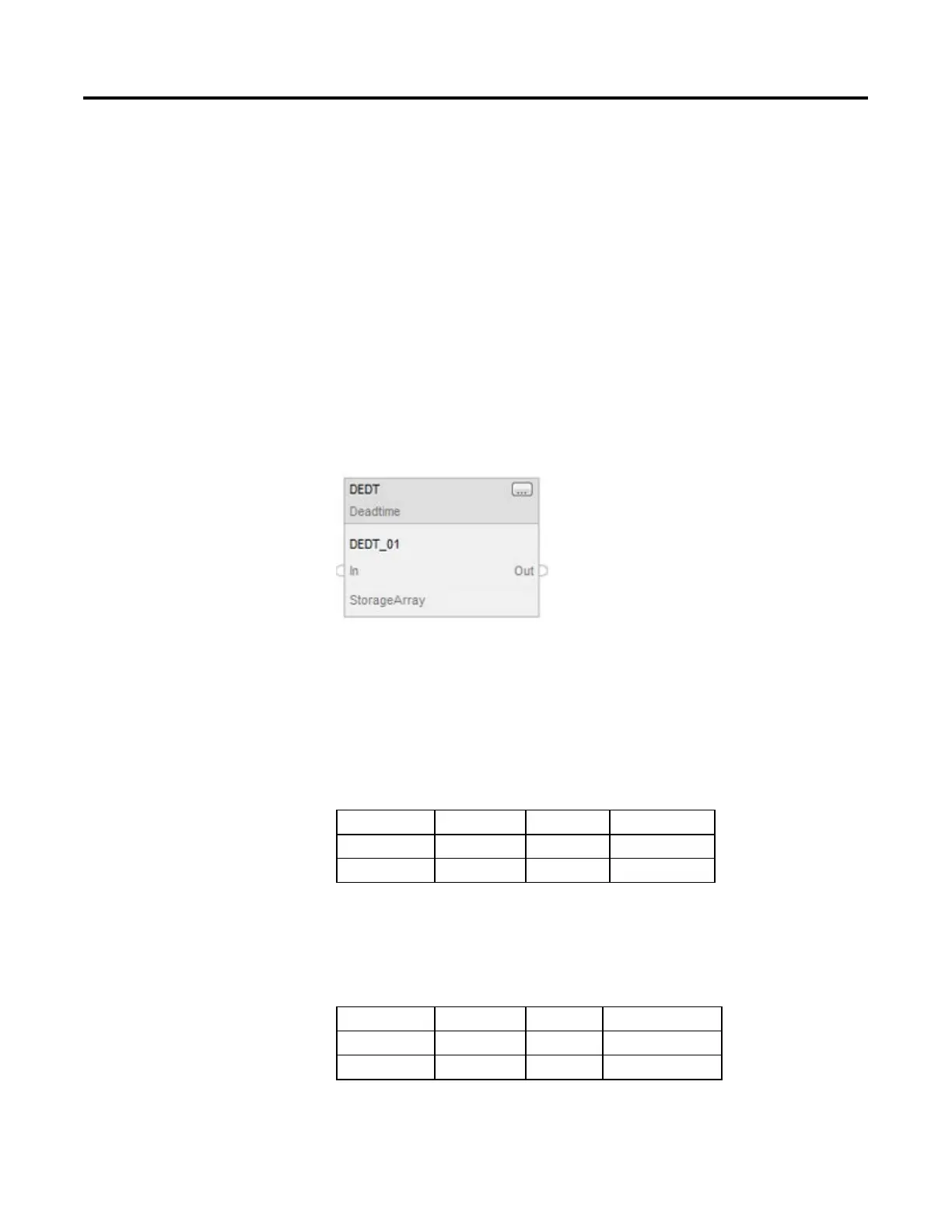

Function Block
Operand Type Format Description
DEDT tag DEADTIME structure DEDT structure
storage REAL array deadtime buffer
Deadtime (DEDT)
