32 Publication 2711C-UM001I-EN-P - July 2014
Chapter 2 Configuration Mode
Use a plastic stylus device with a minimum tip radius of 1 mm (0.040 in.) to
prevent damage to the touch screen.

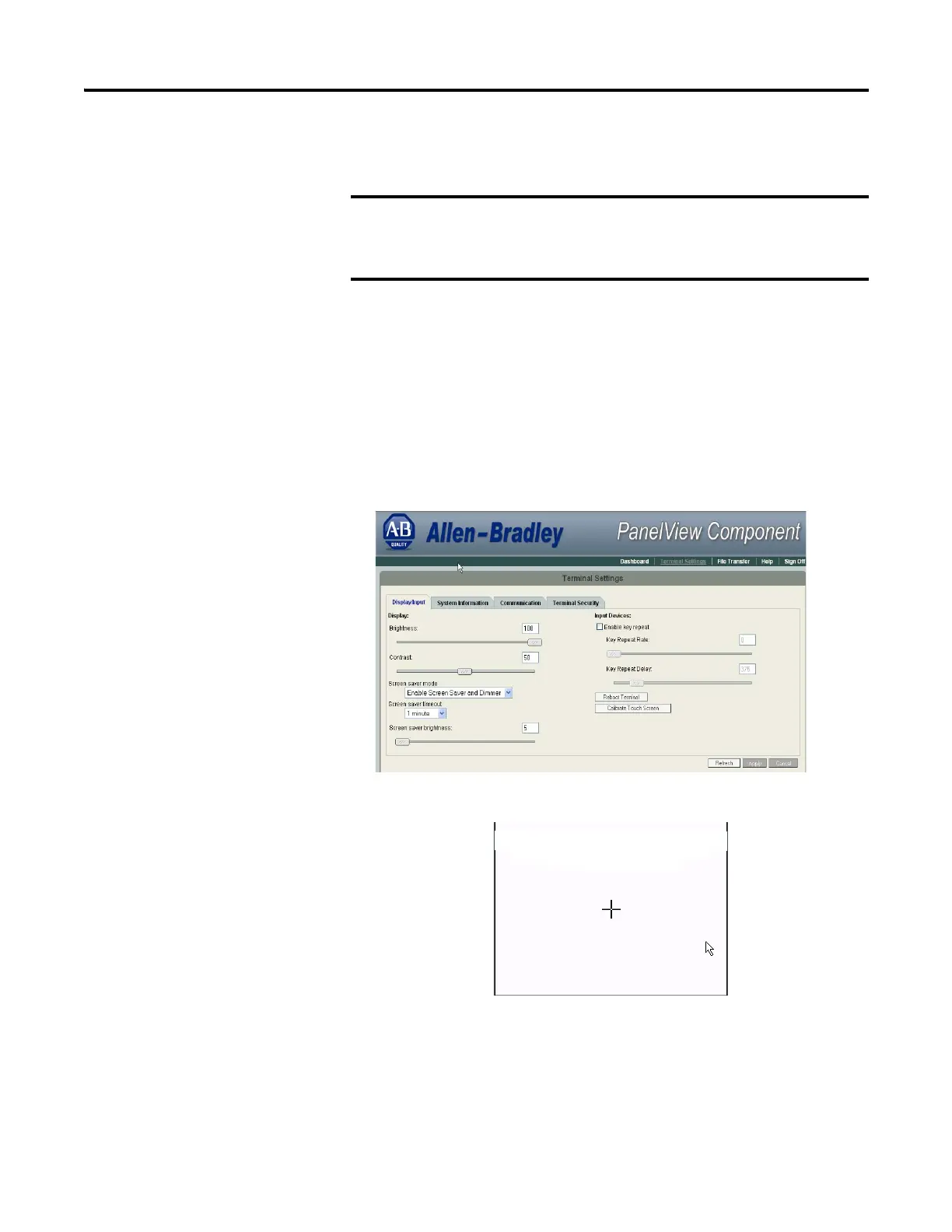

Follow these steps to calibrate the touch screen using the PanelView Explorer
Startup window.
1. Go to the PanelView Explorer Startup window.
2. Click the Terminal Settings link.
3. Click the Display/Input tab.
4. Click Calibrate Touch Screen.
5. With a stylus, press the center of the target (+) on the screen.
6. Repeat step 5 as the target moves around the screen.
7. Tap the screen when prompted to register saved data.
If you don’t tap the screen within 30 seconds, the calibration data is lost and the
current settings are retained.
Touch screen calibration is only supported on touch only
terminals, catalog numbers 2711C-T3M, 2711C-T4T,
2711C-T6C, 2711C-T6T, 2711-T6M, and 2711-T10C.
