Allen-Bradley PanelView Plus 700 Technical Data

Rockwell Automation Publication 2711P-TD001D-EN-P - February 2011
10 Wiring and Grounding Guidelines for PanelView Plus Terminals

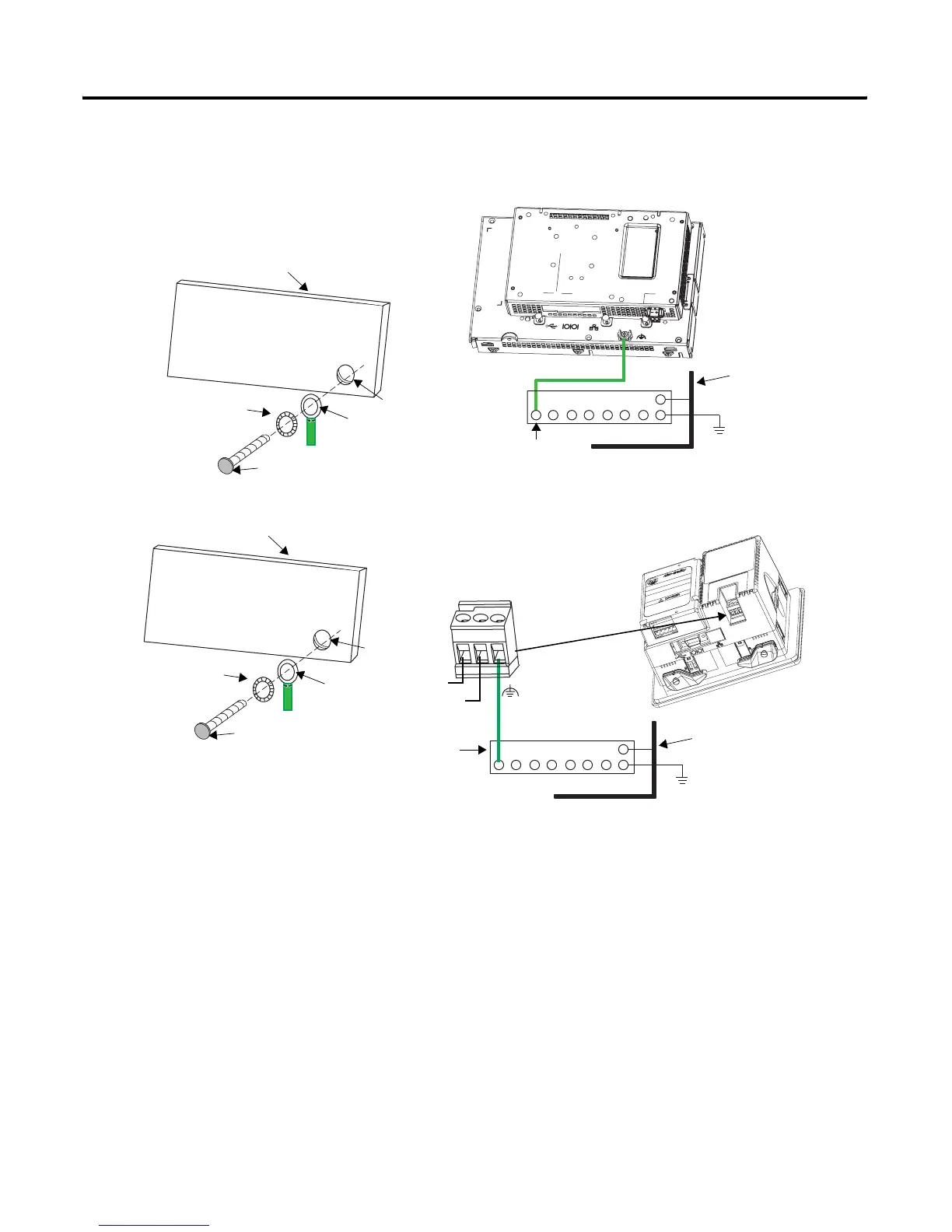

Figure 2 - Functional Earth Connection for 700 to 1500 Nonisolated DC Terminals
Figure 3 - Functional Earth Connection for 400 and 600 DC Terminals
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
Ground Bus
Ground Bus
Functional Earth/Ground to Ground Bus
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
DC +
DC -
Functional Earth
Ground Bus
Ground Bus
