Allen-Bradley PanelView Plus 700 Technical Data

Rockwell Automation Publication 2711P-TD001D-EN-P - February 2011
30 Wiring and Grounding Guidelines for PanelView Plus Terminals
Isolated DC PanelView Plus Terminals
The isolated DC PanelView Plus terminals can be used in a system with other
DC equipment, powered by a single DC power source.

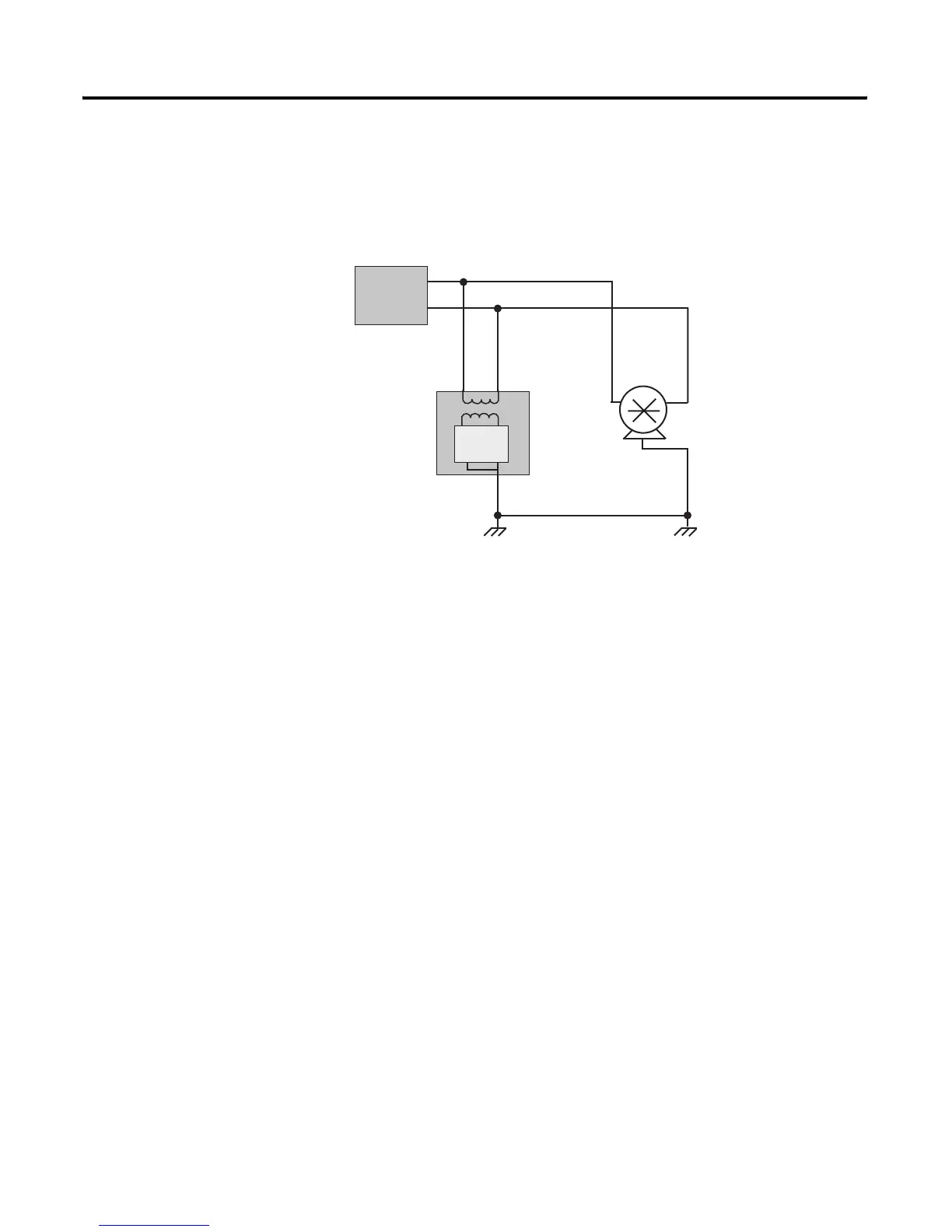

Single Power Supply with Isolated DC Terminal
AC/DC Power Supply
Circuitry
DC+ DC-
+24V DC
Power
Common
DC Motor,
Solenoid
Isolated
PanelView Plus Terminal
Common Tied
to Earth

Allen-Bradley PanelView Plus 700 Specifications

General

Brand	Allen-Bradley
Model	PanelView Plus 700
Category	Touch terminals
Language	English
