12 Rockwell Automation Publication 2711P-IN001J-EN-P - April 2018
PanelView Plus 700 to 1500 and PanelView Plus Compact 1000 Terminals and Display Modules
Mount the Terminal in a Panel
Mounting clips secure the terminal to the panel. The number of clips you use
(4, 6, or 8) varies by terminal type.
Follow these steps to mount the terminal in a panel.
1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
2. Make sure the terminal sealing gasket is properly positioned on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
3. Install the legend strips before installing the terminal if you are using keypad legend
strips on keypad terminals.
Be careful not to pinch the legend strip during installation.

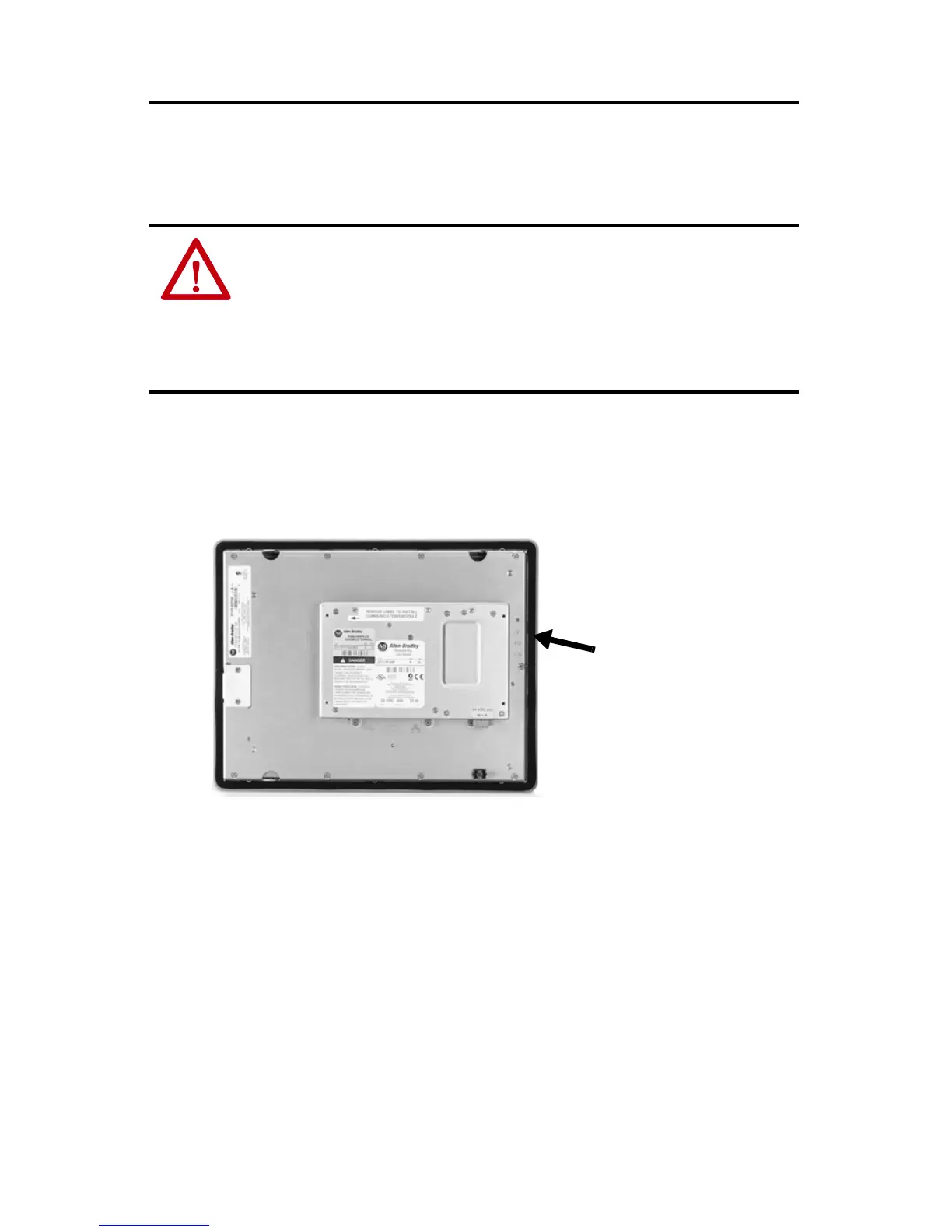

4. Place the terminal in the panel cutout.
Disconnect all electrical power from the panel before making the panel cutout.
Make sure the area around the panel cutout is clear.
Take precautions so metal cuttings do not enter any components already installed in the
panel.
Failure to follow these instructions may result in personal injury or damage to panel
components.
