76 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive

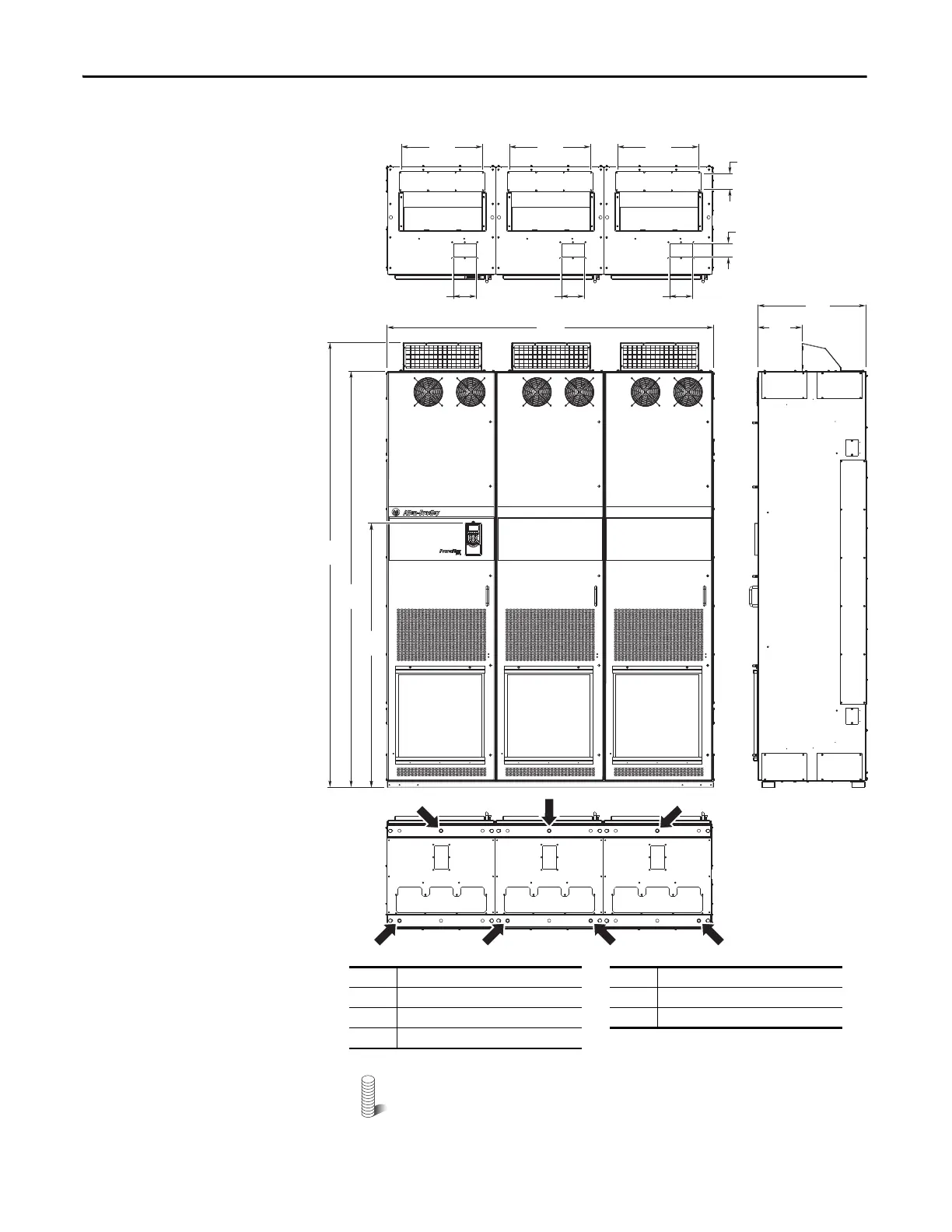

Figure 38 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 10 (Enclosure Code B)
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
2453
(96.6)
1800
(70.9)
2300
(90.6)
440
(17.3)
600
(23.6)
240
(9.4)
127
(5.0)
➎
➍
➊
➋
440
(17.3)
127
(5.0)
➊
➋
440
(17.3)
68
(2.7)
127
(5.0)
76
(3.0)
➊
➋
1464
(57.6)
➌➌
No. Description No. Description
➊ Power wiring conduit plates. ➍ Optional HIM.
➋ Control wiring conduit plates. ➎ Recommended seven-hole anchoring.
➌ Optional exhaust hood.
