Allen-Bradley PowerFlex 700AFE Installation Instructions

Rockwell Automation Publication 750-IN100B-EN-P - July 2017 41
Prepare for Installation Chapter 3

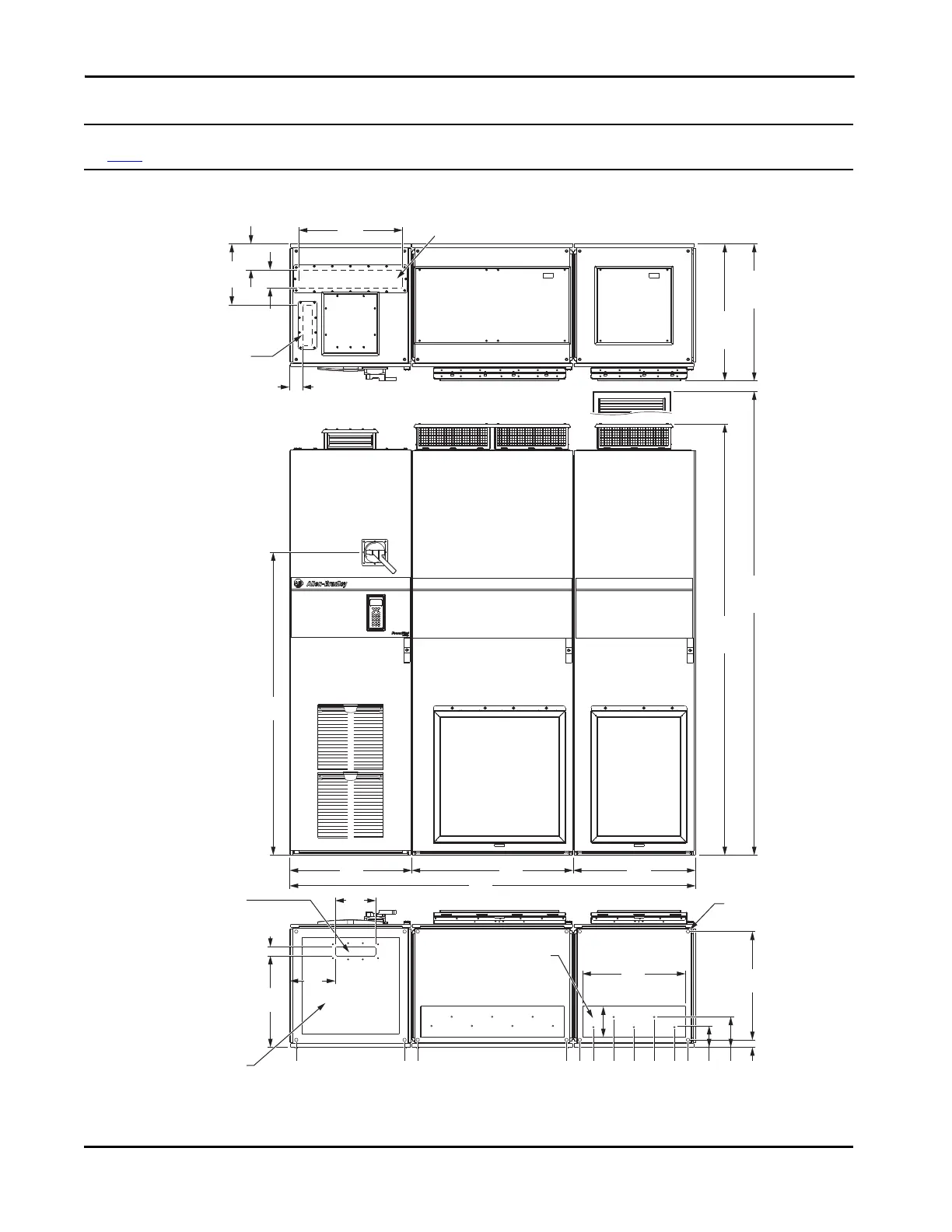

Frame 9 Drives Top, Front, and Bottom Views - Dimensions are mm (in.)
See page 45
for optional exit wire bay dimensions.
0 (0)
535 (2.1)
600 (23.6)
1335 (52.6) 1935 (76.2) 1400 (55.1) 1668 (65.7) 1768 (69.6) 1868 (73.5) 1468 (57.8) 1568 (61.7)
431
(17.0)
45
(1.8)
200
(7.9)
2006
(79.0)
600
(23.6)
800
(31.5)
600
(23.6)
509
(20.0)
153
(6.0)
1495
(58.9)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
66
(2.6)
301
(11.9)
128
(5.0)
90
(3.5)
512
(20.2)
225
(8.9)
36
(1.4)
150
(5.9)
105
(4.1)
535
(21.1)
Input Power Cables - Top Entry
Signal Cables - Top Entry
Dimensions same as bottom.
Mounting Holes
Power BayInput Bay
Signal Cables - Bottom Entry
Input Power Cables - Bottom Entry
Motor Cables - Bottom Exit
(Plate is marked with
recommended gland or
conduit hole pattern.)
Power Bay
