Rockwell Automation Publication 750-IN100B-EN-P - July 2017 63
Mechanical and Electrical Installation Chapter 4

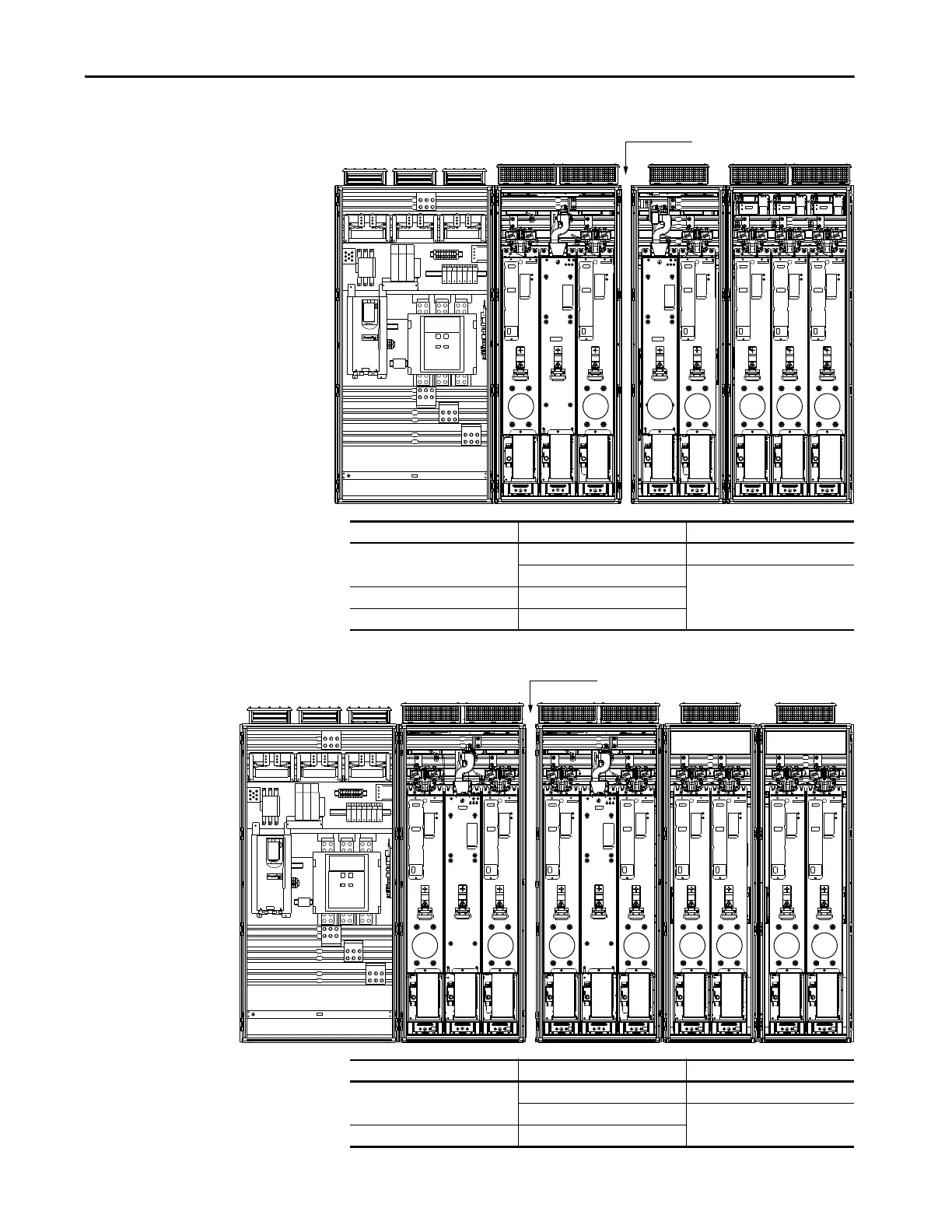

Figure 21 - Frame 10 Drives
Figure 22 - Frame 11 Drives
M0L1L0 L2LCL1 M1 M2
Shipping Split
Module Type Remove Position No. Shipping Split Section
Line side converter L0, L1 Section 1 of 2 (left section)
L2 Section 2 of 2 (right section)
LCL filter module LCL1
Motor side inverter M0, M1, M2
M0L1L0 L3L2 M1 M2 M3
Shipping Split
Module Type Remove Position No. Shipping Split Section
Line side converter L0, L1 Section 1 of 2 (left section)
L2, L3 Section 2 of 2 (right section)
Motor side inverter M0, M1, M2, M3
