Rockwell Automation Publication 750-IN100B-EN-P - July 2017 91
Mechanical and Electrical Installation Chapter 4
Install Joining Hardware
Use the joining hardware provided to mechanically connect the enclosures
together. Nine frame clamps and two top bracket sets are provided.
1. Install the top bracket sets to the cabinets.
Ensure that the cabinets are aligned, level, and pushed together tightly.
2. Install the bolts that join the two angle brackets and tighten.
3. Install the frame clamps and tighten.
IMPORTANT Do not attempt to lift enclosures joined with this hardware.
/tN
MCtJO
/tN
MCtJO
/tN
MCtJO
2
1

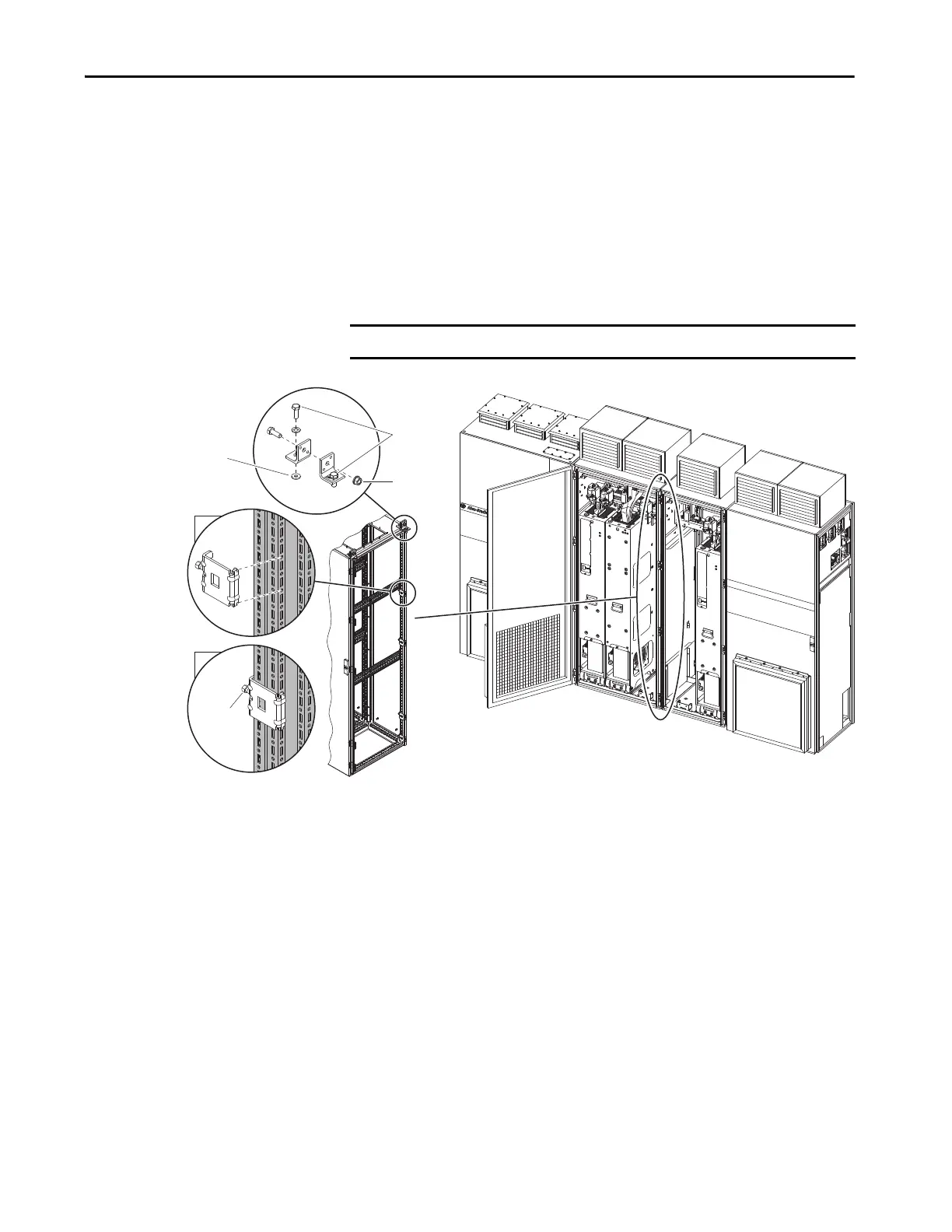

Paint-piercing rubber washer.
Enclosure door omitted for clarity.
Frame Clamps
Top Bracket Sets
To Next Page
