Allen-Bradley PowerFlex 750 Series Installation Instructions

2 Rockwell Automation Publication 750-IN105D-EN-P - June 2018

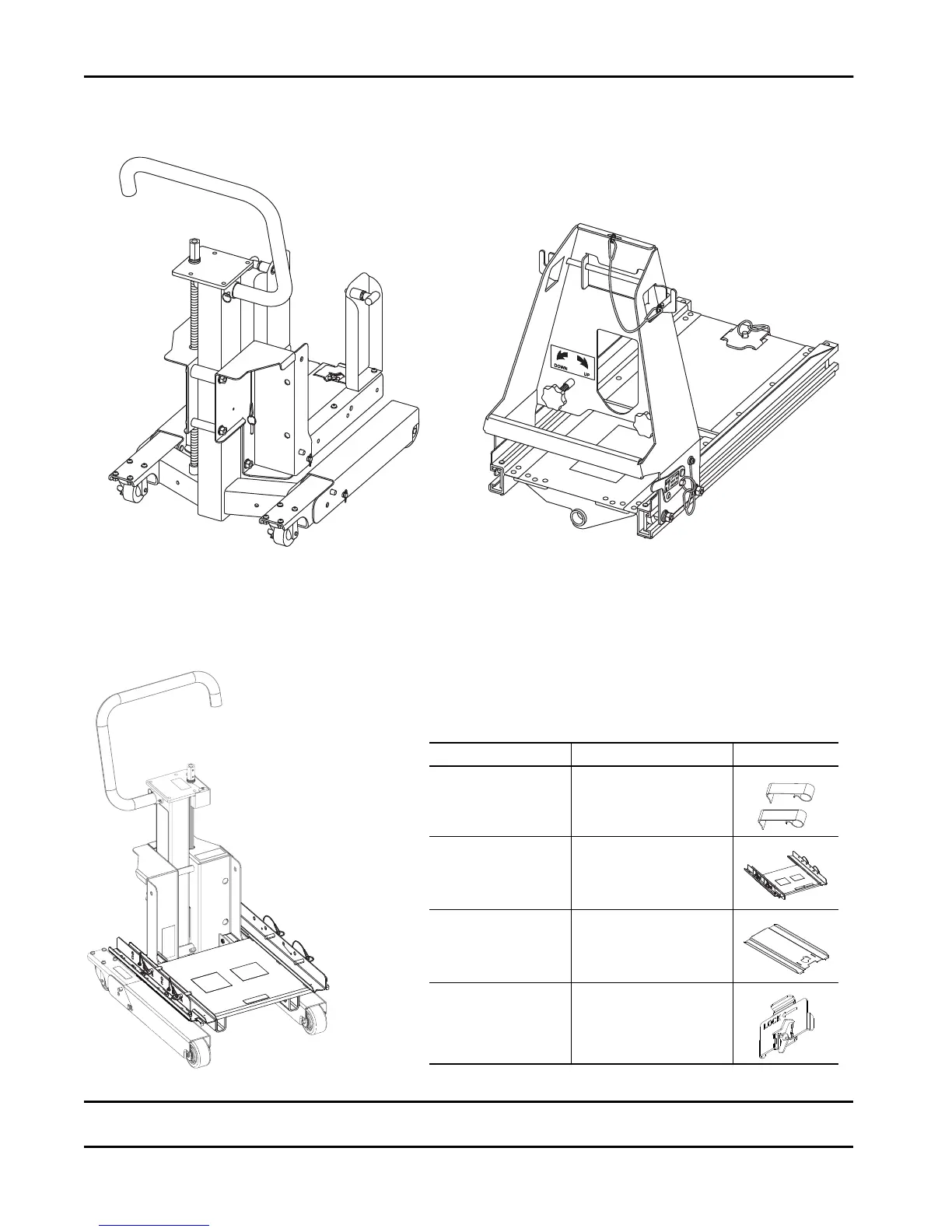

PowerFlex 750-Series Service Cart and DC Precharge Module Lift
Before You Begin
IMPORTANT The DC precharge (DPCP) module lift is used only when the optional DCPC modules are present. If your system does not contain an optional DCPC module,
the information that is related to the DCPC module lift does not apply. The DCPC module lift is not intended for use with the service cart conversion kit.
Service Cart
Catalog Number 20-750-MCART1
Max Weight Capacity: 340 kg (750 lb)
Dimensions (HxWxD): 1100 mm x 542 mm x 803 mm
(43.3 in. x 21.3 in. x 31.6 in.)
DC Precharge Module Lift
Catalog Number
20-750-MCART2
Max Weight Capacity: 41 kg (90 lb)
Dimensions (HxWxD): 441 mm x 295 mm x 572 mm
(22.5 in. x 11.6 in. x 17.4 in.)
Optional:
Frames 8…10 Service Cart Conversion Kit
(service cart is sold separately)
Catalog Number 20-750-MPLT755T
Max Weight Capacity: 340 kg (750 lb)
Max Reach:130 mm (5.1 in.)
Renewal Parts
Description Cat. No.
PowerFlex® 750-Series frame
8…10 conversion plate safety
clips
SK-R1-CARTCLIP
PowerFlex 750-Series frame
8…10 conversion plate
20-750-MPLT755T
PowerFlex 750-Series with
TotalFORCE® Control cart bridge
floor
SK-RM-MBRIDGE1-755T
PowerFlex 750-Series with
TotalFORCE Control cart bridge
tie-in plate
SK-RM-MPIN1-755T
